Removal [09/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, 2023 Toyota Corolla Cross, and 2022 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 3 [11/2022 - ]
  2. REMOVE DOOR ASSIST GRIP COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 4 [11/2022 - ]
  3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 5 [11/2022 - ]
  4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 6 [11/2022 - ]
  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 7 [11/2022 - ]

  6. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP

    Refer to PROCEDURE - Step 9 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - ]

  7. REMOVE FRONT DOOR REAR BELT SEAL

    Refer to PROCEDURE - Step 10 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 10 [11/2022 - ]

  8. REMOVE FRONT DOOR FRONT BELT SEAL

    Refer to PROCEDURE - Step 11 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 11 [11/2022 - ]

  9. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 21 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 21 [11/2022 - ]

  10. REMOVE FRONT LOWER FRONT DOOR FRAME SUB-ASSEMBLY

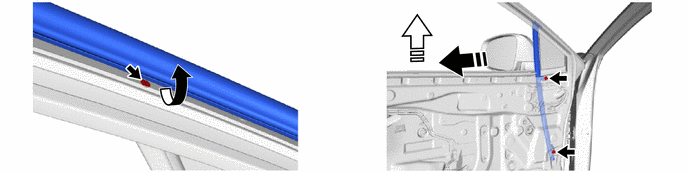

    1. GTY1031910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  11. REMOVE FRONT DOOR FIX WINDOW GLASS

    Refer to PROCEDURE - Step 24 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 24 [11/2022 - ]

  12. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

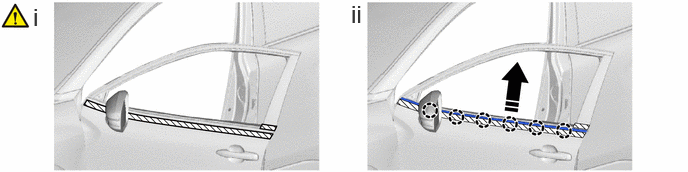

    1. GTY1031044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the front door belt moulding assembly as shown in the illustration.
      2. Disengage the claws to remove the front door belt moulding assembly as shown in the illustration.
