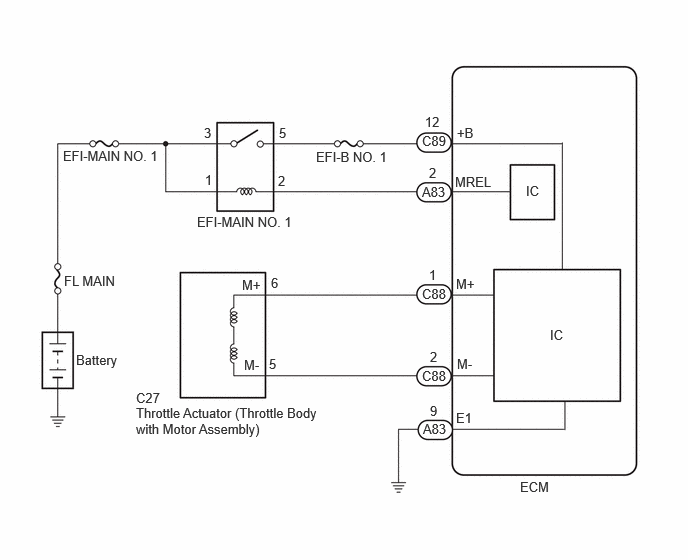

DTC P2100-18: Throttle Actuator "A" Control Motor Circuit Current Below Threshold; DTC P2100-19: Throttle Actuator "A" Control Motor Circuit Current Above Threshold [10/2022 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
