Removal [09/2022 - 11/2022]: Procedure

  1. REMOVE REAR WHEELS

    Refer to REMOVAL [09/2022 - ]

  2. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. SEPARATE REAR FLEXIBLE HOSE LH

    Refer to PROCEDURE - Step 3

  4. SEPARATE REAR FLEXIBLE HOSE RH

    HINT:

    Perform the same procedure as for the LH side.

  5. SEPARATE NO. 2 PARKING BRAKE WIRE ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. SEPARATE NO. 1 PARKING BRAKE WIRE ASSEMBLY

    HINT:

    Perform the same procedure as for the No. 2 parking brake wire assembly.

  7. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH
    1. Using a union nut wrench, separate the rear No. 2 brake tube flexible hose from the rear No. 4 brake tube while holding the rear No. 2 brake tube flexible hose with a wrench.

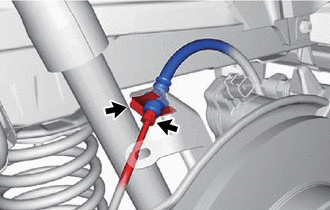

      GTY1117549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not kink or damage the brake line.
      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
    2. Remove the clip and separate the rear No. 2 brake tube flexible hose.

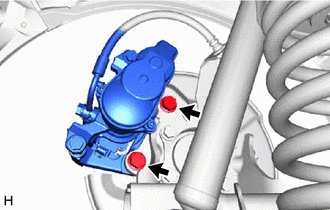

    3. GTY1117548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and rear disc brake caliper assembly LH with rear No. 2 brake tube flexible hose.

  8. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  9. REMOVE REAR DISC (for LH Side)

    Refer to PROCEDURE - Step 16

  10. REMOVE REAR DISC (for RH Side)

    HINT:

    Perform the same procedure as for the LH side.

  11. REMOVE REAR NO. 4 BRAKE TUBE

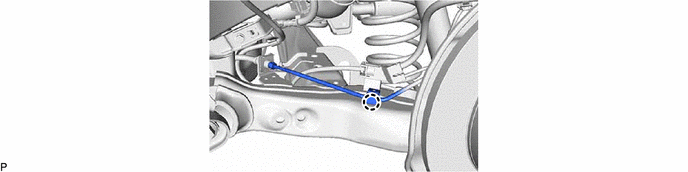

    1. Disengage the clamp and remove the rear No. 4 brake tube.
      GTY1033837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR NO. 3 BRAKE TUBE

    HINT:

    Perform the same procedure as for the rear No. 4 brake tube.

  13. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  14. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH

    HINT:

    Perform the same procedure as for the LH side.

  15. REMOVE REAR COIL SPRING

    Refer to PROCEDURE - Step 7

  16. REMOVE REAR UPPER COIL SPRING INSULATOR LH

    Refer to PROCEDURE - Step 8

  17. REMOVE REAR UPPER COIL SPRING INSULATOR RH

    HINT:

    Perform the same procedure as for the LH side.

  18. REMOVE REAR LOWER COIL SPRING INSULATOR LH

    Refer to PROCEDURE - Step 10

  19. REMOVE REAR LOWER COIL SPRING INSULATOR RH

    HINT:

    Perform the same procedure as for the LH side.

  20. REMOVE REAR AXLE BEAM ASSEMBLY

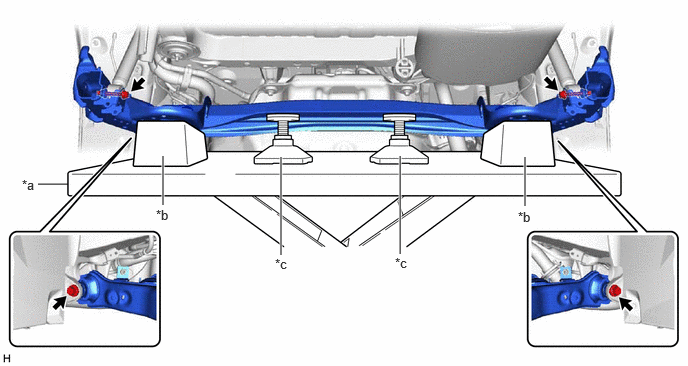

    1. Support the rear axle beam assembly with an engine lifter using 2 wooden blocks and 2 attachments or equivalent tools as shown in the illustration.
      GTY1109432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter *b Wooden Block
      *c Attachment - -
      WARNING:

      Make sure to secure the rear axle beam assembly to prevent it from dropping.

    2. Remove the 2 bolts and separate the rear axle beam assembly from the rear shock absorber assemblies LH and RH.
    3. Remove the 2 bolts and rear axle beam assembly.
  21. REMOVE REAR AXLE CARRIER BUSHING LH

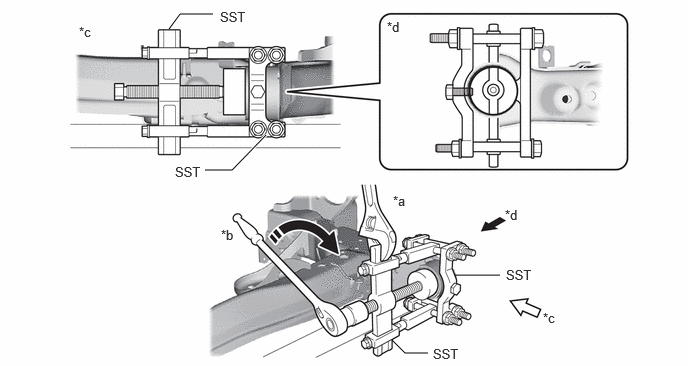

    1. Install SST as shown in the illustration.
      • SST: 09710-28050
      • SST: 09950-40011
        1. 09951-04010
        2. 09953-04010
        3. 09957-04010
        4. 09958-04011
      GTY1110295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold *b Turn
      *c View A *d View B
    2. Using SST, remove the rear axle carrier bushing LH from the rear axle beam assembly.
      NOTE:
      • When removing the rear axle carrier bushing LH, make sure SST does not interfere with the flange of the rear axle carrier bushing LH.

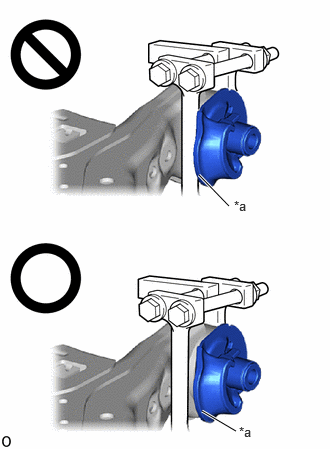

        GTY1110415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Flange

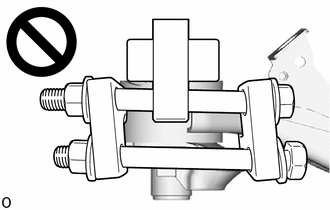

      • When removing the rear axle carrier bushing LH, check that the SST portions between the bolts are installed to the rear axle beam in a parallel condition.
        GTY1113844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If a nut is loose, stop the work and re-set SST in place.
  22. REMOVE REAR AXLE CARRIER BUSHING RH

    HINT:

    Use the same procedure for the RH side as for the LH side.

  23. REMOVE REAR SUSPENSION ARM BRACKET LH

    HINT:

    Perform this procedure only when replacement of the rear suspension arm bracket LH is necessary.

    1. Remove the bolt and separate the No. 2 parking brake wire assembly from the rear suspension arm bracket LH.

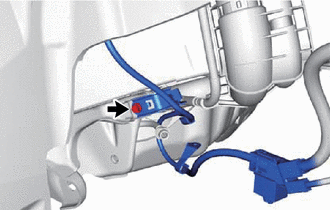

      GTY1111921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

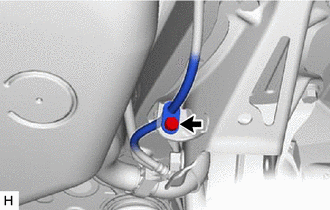

    2. GTY1119388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and separate the rear flexible hose LH from the rear suspension arm bracket LH.

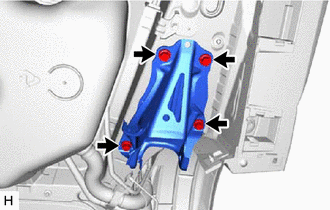

    3. GTY1117552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 bolts and rear suspension arm bracket LH from the vehicle body.

  24. REMOVE REAR SUSPENSION ARM BRACKET RH

    HINT:

    Perform this procedure only when replacement of the rear suspension arm bracket RH is necessary.

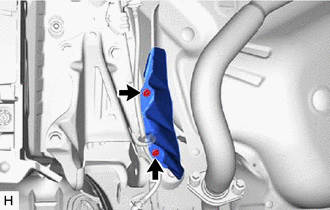

    1. GTY1117547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 nut and parking brake cable heat insulator from the rear suspension arm bracket RH.

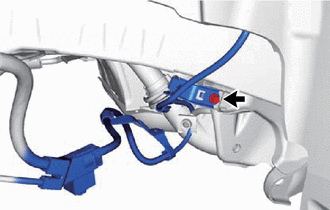

    2. GTY1112008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and separate the No. 1 parking brake wire assembly from the rear suspension arm bracket RH.

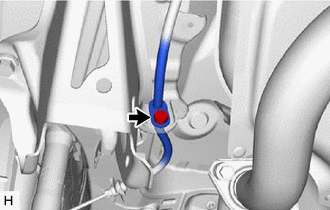

    3. GTY1111922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and separate the rear flexible hose RH from the rear suspension arm bracket RH.

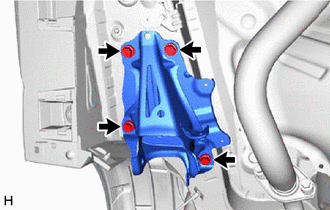

    4. GTY1118217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 bolts and rear suspension arm bracket RH from the vehicle body.
