Removal [09/2022 - ]: Procedure

PRECAUTION
NOTE:
- Make sure to read the precautions of the electric parking brake system before removing the rear brake assembly.
  for HV Model: Refer to PRECAUTION [09/2022 - ]

  for Gasoline Model: Refer to PRECAUTION [09/2022 - ]
- After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. (for HV Model)
  Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL (for HV Model)
Refer to PROCEDURE - Step 2 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 2 [11/2022 - ]
REMOVE REAR WHEEL
Refer to REMOVAL [09/2022 - ]
PERFORM REAR BRAKE PAD REPLACEMENT MODE
for HV Model: Refer to TEST MODE PROCEDURE [09/2022 - ]

for Gasoline Model: Refer to TEST MODE PROCEDURE [06/2018 - ]
DRAIN BRAKE FLUID
NOTE:
If brake fluid leaks onto any painted surface, immediately wash it off.

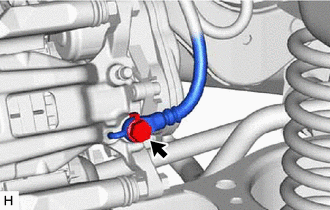

SEPARATE REAR FLEXIBLE HOSE

Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
Refer to PROCEDURE - Step 4
REMOVE PARKING BRAKE ACTUATOR ASSEMBLY
Refer to PROCEDURE - Step 5

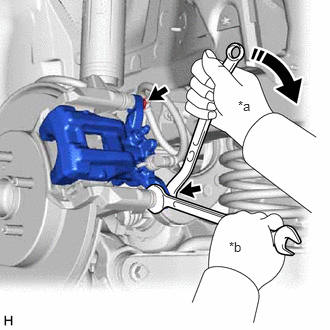

REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY

Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and rear disc brake cylinder assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turn
*b	Hold

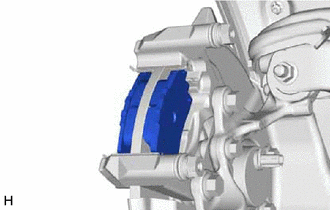

REMOVE REAR DISC BRAKE PAD

Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
Refer to PROCEDURE - Step 5

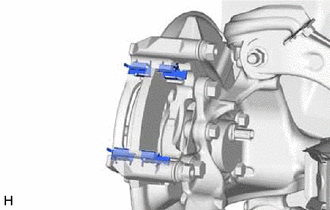

REMOVE REAR DISC BRAKE PAD SUPPORT PLATE

Remove the 4 rear disc brake pad support plates from the rear disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Each rear disc brake pad support plate has a different shape. Be sure to put an identification mark on each rear disc brake pad support plate so that it can be reinstalled to its original position.

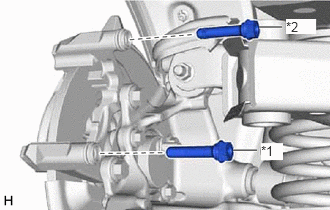

REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN

Remove the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin from the rear disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Rear No. 1 Disc Brake Cylinder Slide Pin
*2	Rear No. 2 Disc Brake Cylinder Slide Pin

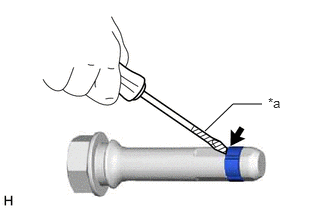

Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bushing from the rear No. 2 disc brake cylinder slide pin.

NOTE:

Do not damage the rear No. 2 disc brake cylinder slide pin.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

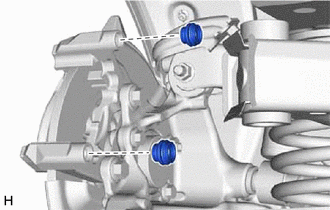

REMOVE REAR DISC BRAKE BUSHING DUST BOOT

Remove the 2 rear disc brake bushing dust boots from the rear disc brake cylinder mounting.

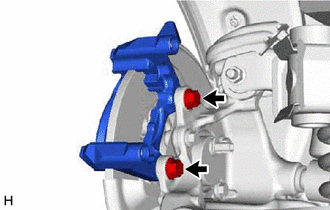

REMOVE REAR DISC BRAKE CYLINDER MOUNTING

Remove the 2 bolts and rear disc brake cylinder mounting.

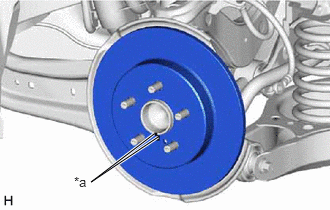

REMOVE REAR DISC

Put matchmarks on the rear disc and rear axle hub and bearing assembly.

Matchmark

Remove the rear disc.
