- REMOVE FRONT SEAT ASSEMBLY LH
Refer to REMOVAL [06/2017 - 10/2020]
- DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER
Refer to PROCEDURE - Step 5
- REMOVE FRONT SEAT FRONT CUSHION SHIELD LH
Refer to PROCEDURE - Step 6
- REMOVE FRONT SEAT CUSHION SHIELD LH
Refer to PROCEDURE - Step 7
- REMOVE FRONT SEAT INNER CUSHION SHIELD LH
Refer to PROCEDURE - Step 8
- REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY
Refer to PROCEDURE - Step 13
- REMOVE FRONT SEAT HEADREST SUPPORT
Refer to PROCEDURE - Step 14
- REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
Refer to PROCEDURE - Step 15
- REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
- Disengage the wire harness clamp and disconnect the connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Disengage the wire harness clamp first.
- Disengage the 2 claws and 3 hooks to remove the seatback climate control blower.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Disengage the 2 claws first.
- REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
- w/o Climate Control Seat System:
- Disengage the clamp and disconnect the connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Disengage the clamp first.
- Disengage the 8 hooks to remove the lumbar support adjuster assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- w/ Climate Control Seat System:

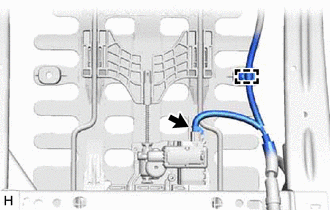

- Disengage the clamp and disconnect the connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Disengage the clamp first.

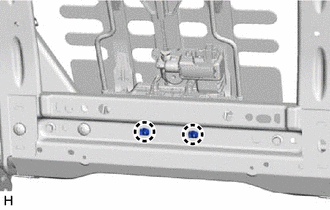

- Disengage the 2 claws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

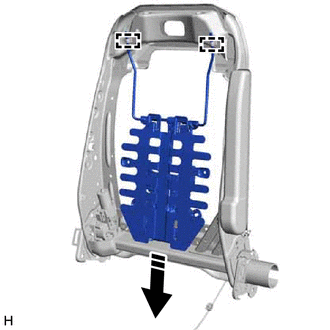

- Disengage the 2 guides to remove the lumbar support adjuster assembly LH as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Remove in this Direction |
