Removal [03/2017 - 08/2018]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [03/2017 - 09/2019]

  2. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT SEAT FRONT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT SEAT INNER CUSHION SHIELD LH

    Refer to PROCEDURE - Step 5

  6. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 12

  7. REMOVE FRONT SEAT HEADREST SUPPORT

    Refer to PROCEDURE - Step 13

  8. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 14

  9. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

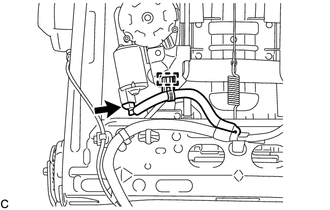

    1. Disconnect the lumbar support adjuster assembly LH connector.
      GTY598300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

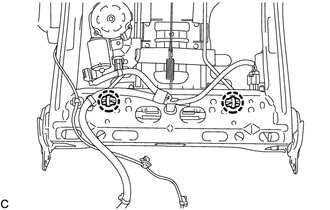

    2. Disengage the clamp.
    3. Disengage the 2 claws to remove the 2 front seatback edge protectors from the front seatback frame sub-assembly LH.
      GTY542141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

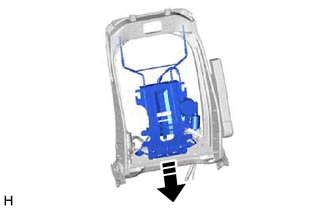

    4. Remove the lumbar support adjuster assembly LH from the front seatback frame sub-assembly LH as shown in the illustration.
      GTY553932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
  10. REMOVE FRONT SEATBACK EDGE PROTECTOR

    Refer to PROCEDURE - Step 18
