Disassembly [03/2017 - 08/2018]: Procedure

  1. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 3 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 3 [06/2017 - 09/2019]

  2. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER
    1. GTY542049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the rubber band of the separate type front seatback cover.

  3. REMOVE FRONT SEAT FRONT CUSHION SHIELD LH

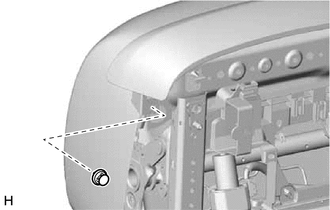

    1. Remove the clip.
      GTY542050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

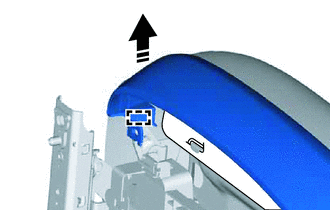

    2. Disengage the guide as shown in the illustration.
      GTY761230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
    3. Disengage the 2 claws as shown in the illustration.

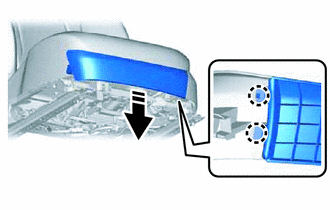

      GTY766574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
    4. Disengage the 3 guides to remove the front seat front cushion shield LH.

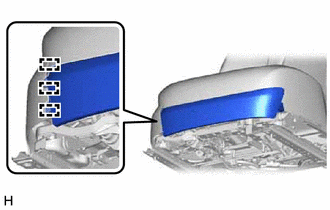

      GTY542052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT SEAT CUSHION SHIELD LH
    1. Disengage the 2 claws.

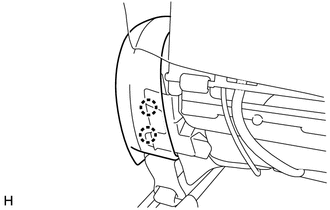

      GTY542058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and 2 guides.
      GTY759753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

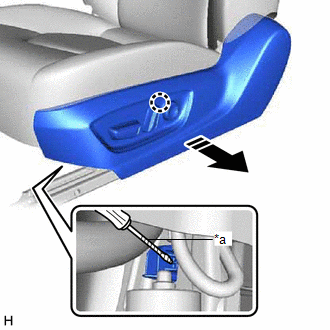

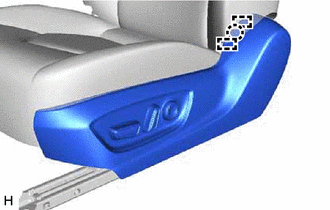

    3. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and slightly pull the front seat cushion shield LH as shown in the illustration.
      GTY773316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this direction

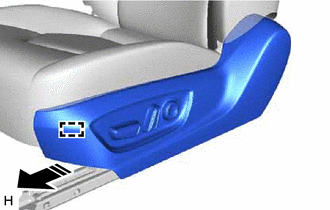

    4. Disengage the guide as shown in the illustration.
      GTY768052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction

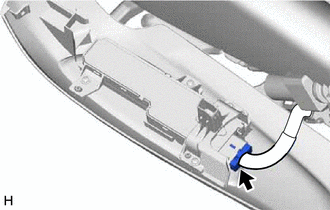

    5. Disconnect the front power seat switch LH connector to remove the front seat cushion shield LH.
      GTY598283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT SEAT INNER CUSHION SHIELD LH
    1. Disengage the 2 claws.
      GTY542381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

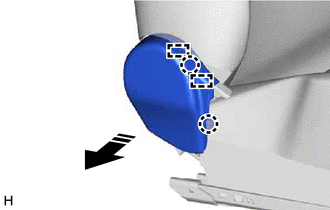

    2. Disengage the 2 claws and 2 guides to remove the front seat inner cushion shield LH as shown in the illustration.
      GTY579670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
  6. REMOVE SLIDE & VERTICAL POWER SEAT SWITCH KNOB
    1. GTY542061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

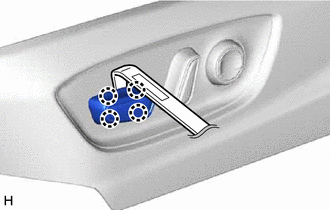

      Using a moulding remover, disengage the 4 claws to remove the slide and vertical power seat switch knob.

  7. REMOVE RECLINING POWER SEAT SWITCH KNOB

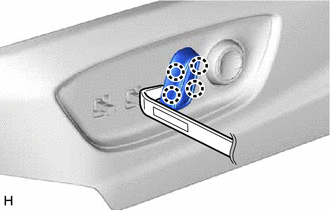

    1. GTY542062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a moulding remover, disengage the 4 claws to remove the reclining power seat switch knob.

  8. REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET LH

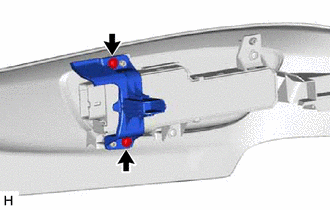

    1. Remove the 2 screws and seat adjuster shield clamp bracket LH from the front seat cushion shield LH.
      GTY542063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT POWER SEAT SWITCH LH

    Refer to PROCEDURE - Step 8

  10. REMOVE LOWER NO. 3 SEAT TRACK SPACER

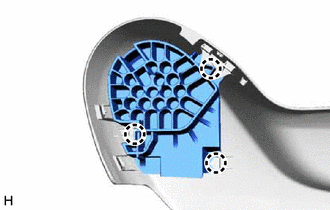

    GTY759727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

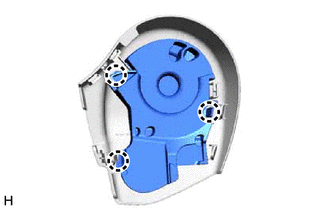

    1. Disengage the 3 claws to remove the lower No. 3 seat track spacer from the front seat cushion shield LH.
  11. REMOVE LOWER NO. 4 SEAT TRACK SPACER
    GTY759729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 3 claws to remove the lower No. 4 seat track spacer from the front seat inner cushion shield LH.
  12. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

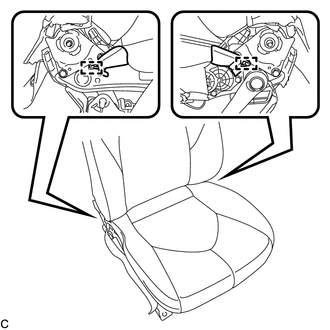

    1. Disengage the 2 hooks.
      GTY759754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and 4 clamps to separate the front seat airbag assembly LH wire harness.
      GTY759770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the 4 clamps first.

    3. Disconnect the connector.
      GTY759751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the clamp.

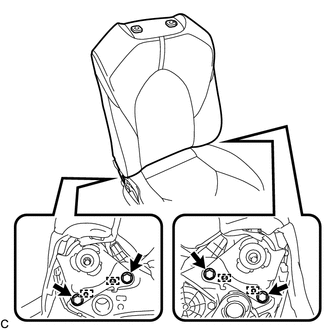

    5. Remove the 4 bolts.
      GTY772761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the 4 guides to remove the separate type front seatback assembly from the separate type front seat cushion assembly.
  13. REMOVE FRONT SEAT HEADREST SUPPORT
    1. Disengage the 3 hooks.
      GTY542085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the 2 fasteners.
      GTY605596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and remove the 2 front seat headrest supports.
      GTY759759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Remove the separate type front seatback cover with pad.
  15. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. Using a screwdriver, disengage the 9 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration.
      GTY748355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  16. REMOVE FRONT SEAT AIRBAG ASSEMBLY LH

    Refer to PROCEDURE - Step 20

  17. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

    Refer to PROCEDURE - Step 9

  18. REMOVE FRONT SEATBACK EDGE PROTECTOR
    1. Remove the 2 front seatback edge protectors from the lumbar support adjuster assembly LH.
  19. REMOVE FRONT NO. 2 SEATBACK HOOK
    1. Remove the 2 front No. 2 seatback hooks from the front seatback frame sub-assembly LH.
      GTY574545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FRONT SEAT NO. 2 WIRE LH
    1. Disconnect each connector and disengage each clamp to remove the front seat No. 2 wire LH.
  21. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. Disengage the 10 hooks and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.

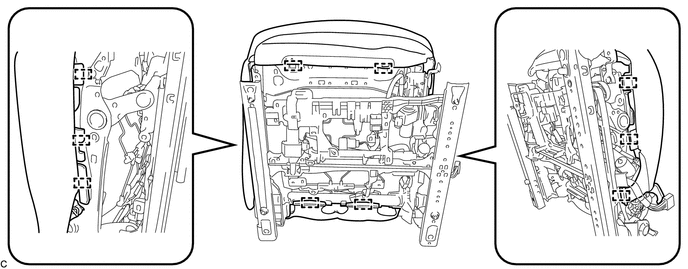

      GTY542089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER
    1. Using a screwdriver, disengage the 14 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.
      GTY751914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  23. REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH

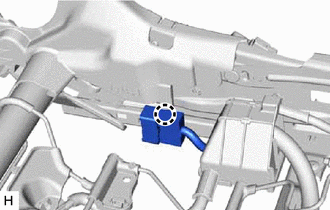

    1. Disengage the claw.
      GTY542090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

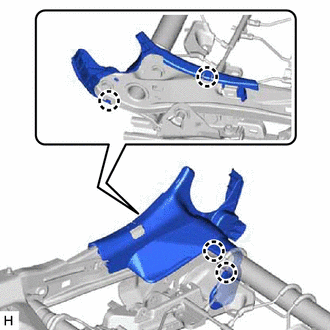

    2. Disengage the 4 claws to remove the LH seat reclining adjuster inside cover LH.

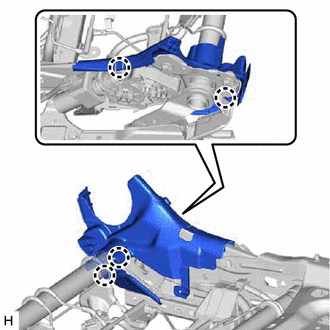

      GTY542091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH
    1. Disengage the 4 claws to remove the LH seat reclining adjuster inside cover RH.
      GTY598289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH
    1. Disengage the hook.

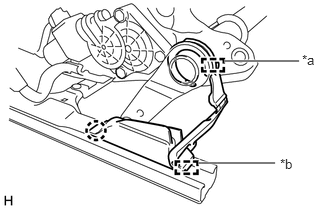

      GTY538906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Disengage the claw and guide to remove the front seat lower cushion shield LH.
  26. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH
    1. Disengage the hook.

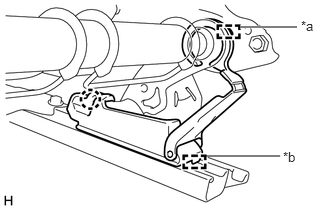

      GTY604168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Disengage the claw and guide to remove the front seat lower cushion shield RH.
  27. REMOVE FRONT SEAT WIRE LH
    1. Disconnect each connector and disengage each clamp to remove the front seat wire LH.
  28. REMOVE SEAT SLIDE POSITION SENSOR PROTECTOR

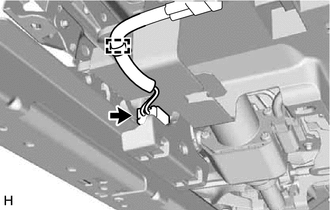

    1. Disengage the clamp and disconnect the connector.
      GTY772623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

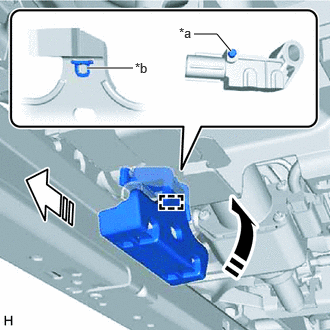

    2. Disengage the seat slide position sensor protector from the pin of the seat position airbag sensor as shown in the illustration.
      GTY762532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Engagement Point
      Disengage in this Direction
      Slide in this Direction
    3. Slide the seat slide position sensor protector as shown in the illustration to remove it.
  29. REMOVE FRONT SEAT NO. 3 WIRE LH
    1. Disengage the claw to remove the front seat No. 3 wire LH.

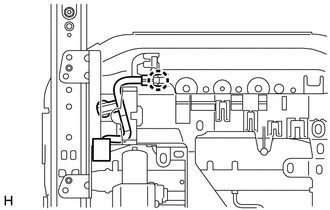

      GTY772756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH
    1. Disengage the 6 hooks to remove the front seat cushion spring sub-assembly LH from the front seat adjuster assembly LH.
      GTY542111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER LH

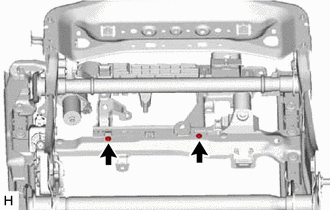

    1. Remove the 2 screws.
      GTY542113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws.

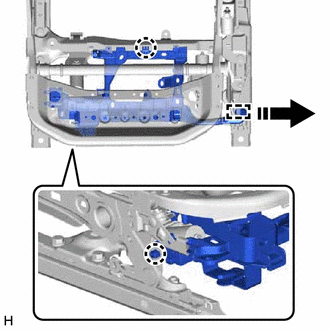

      GTY599346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
    3. Disengage the guide to remove the front seat cushion wire harness holder LH as shown in the illustration.
  32. REMOVE FRONT SEAT LOWER CUSHION SHIELD
    1. Disengage the claw.

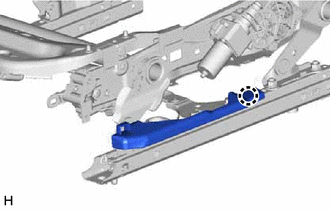

      GTY542117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

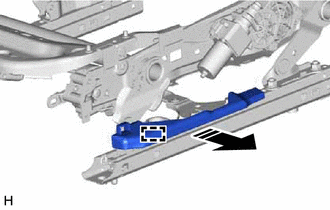

    2. Disengage the guide to remove the front seat lower cushion shield as shown in the illustration.
      GTY563324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
  33. REMOVE POWER SEAT LIFTER MOTOR ASSEMBLY LH
    1. Remove the power seat lifter motor assembly LH.

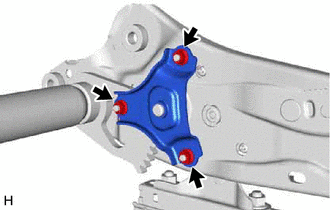

      1. Remove the 3 nuts and front seat adjuster plate LH.
        GTY699523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

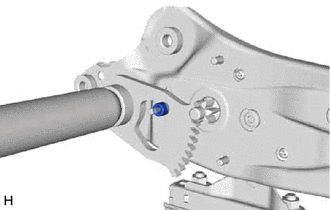

      2. Remove the vertical adjuster spacer.
        GTY699529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

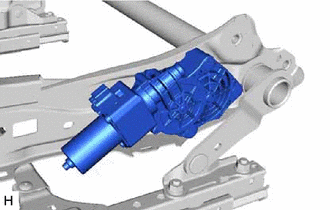

      3. Remove the front seat vertical housing sub-assembly LH.
        GTY699528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE POWER SEAT TILT MOTOR ASSEMBLY LH

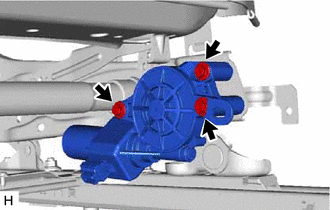

    1. Remove the 3 bolts and power seat tilt motor assembly LH.
      GTY699530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
