Removal [10/2020 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2020 - ]

  2. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 5

  3. REMOVE FRONT SEAT FRONT CUSHION SHIELD

    Refer to PROCEDURE - Step 6

  4. REMOVE FRONT SEAT CUSHION SHIELD

    Refer to PROCEDURE - Step 7

  5. REMOVE FRONT SEAT INNER CUSHION SHIELD

    Refer to PROCEDURE - Step 8

  6. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 13

  7. REMOVE FRONT SEAT HEADREST SUPPORT

    Refer to PROCEDURE - Step 14

  8. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 15

  9. REMOVE SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 16

  10. REMOVE FRONT SEATBACK HEATER ASSEMBLY

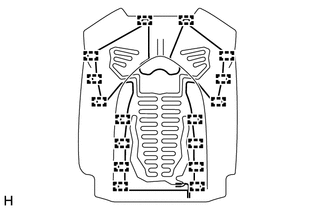

    1. Remove the 16 tag pins and front seatback heater assembly from the separate type front seatback cover.
