Removal [10/2020 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [10/2020 - ]

  2. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 5

  3. REMOVE FRONT SEAT FRONT CUSHION SHIELD

    Refer to PROCEDURE - Step 6

  4. REMOVE FRONT SEAT CUSHION SHIELD

    Refer to PROCEDURE - Step 7

  5. REMOVE FRONT SEAT INNER CUSHION SHIELD

    Refer to PROCEDURE - Step 8

  6. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 13

  7. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 24

  8. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

    Refer to PROCEDURE - Step 25

  9. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY
    1. Remove the 32 tag pins and front seat cushion heater assembly from the separate type front seat cushion cover.

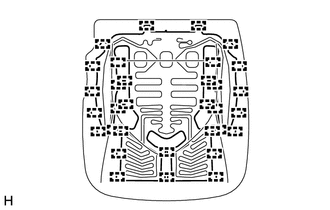

      GTY755890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
