Disassembly [06/2017 - 09/2019]: Procedure

  1. REMOVE SEAT POSITION AIRBAG SENSOR (for Driver Side)

    Refer to PROCEDURE - Step 2

  2. REMOVE OCCUPANT DETECTION ECU (for Front Passenger Side)

    Refer to PROCEDURE - Step 4

  3. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 4

  5. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

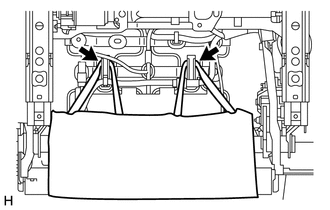

    1. Disconnect the 2 rubber bands of the separate type front seatback cover.
      GTY756297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT SEAT FRONT CUSHION SHIELD

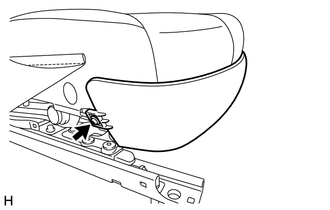

    1. Remove the screw.
      GTY756292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

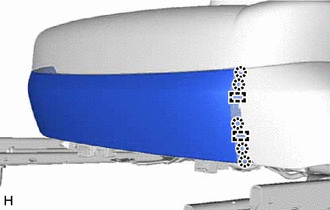

    2. Disengage the 5 claws and 2 guides to remove the front seat front cushion shield.
      GTY772004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT SEAT CUSHION SHIELD

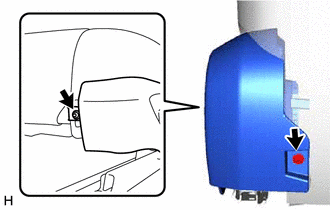

    1. Remove the 2 screws.
      GTY756293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

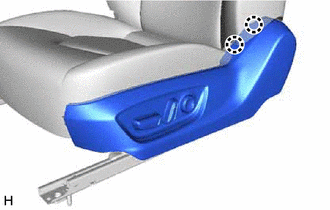

    2. Disengage the 2 claws.
      GTY756294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

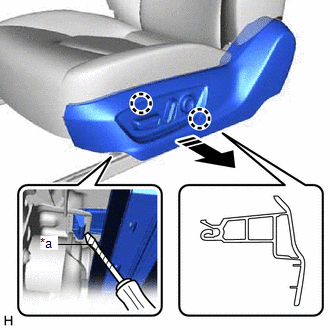

    3. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and slightly pull the front seat cushion shield as shown in the illustration.
      GTY757572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

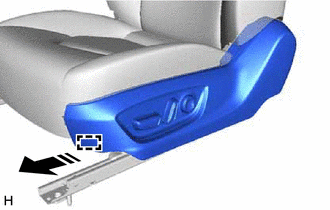

    4. Disengage the guide as shown in the illustration.
      GTY773108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

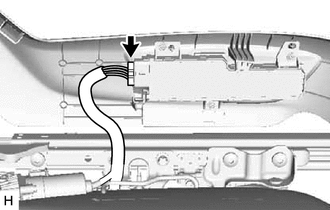

    5. Disconnect the front power seat switch connector to remove the front seat cushion shield.
      GTY756302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT SEAT INNER CUSHION SHIELD

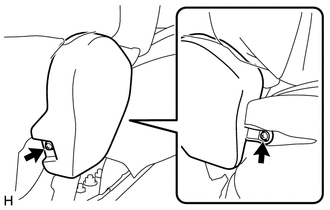

    1. Remove the 2 screws.
      GTY751368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

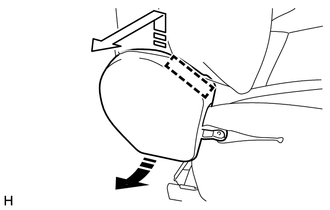

    2. Disengage the guide to remove the front seat inner cushion shield as shown in the illustration.
      GTY761048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  9. REMOVE FRONT SEAT LOWER CUSHION SHIELD

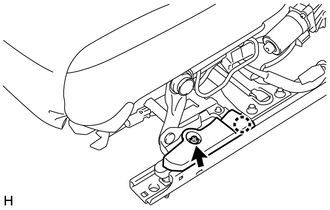

    1. Remove the screw.
      GTY755884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the front seat lower cushion shield.
  10. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. Using a moulding remover, disengage the 4 claws to remove the slide and vertical power seat switch knob.
      GTY542061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE RECLINING POWER SEAT SWITCH KNOB
    1. Using a moulding remover, disengage the 4 claws to remove the reclining power seat switch knob.
      GTY542062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT POWER SEAT SWITCH

    Refer to PROCEDURE - Step 7

  13. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

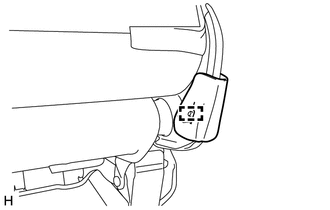

    1. Disengage the hook.
      GTY756303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

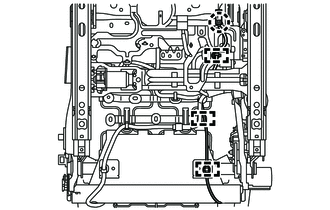

    2. Disengage the claw and 3 clamps to separate the front seat airbag assembly wire harness.
      GTY756304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the 3 clamps first.

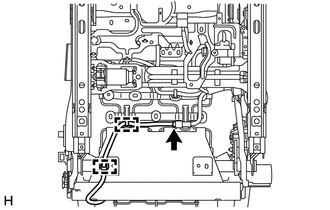

    3. Disengage the 2 clamps.
      GTY756301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector to separate the front seat No. 2 wire.
    5. w/ Seat Heater System:

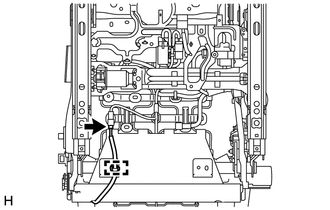

      1. Disengage the clamp.
        GTY772006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector to separate the front seatback heater assembly connector.

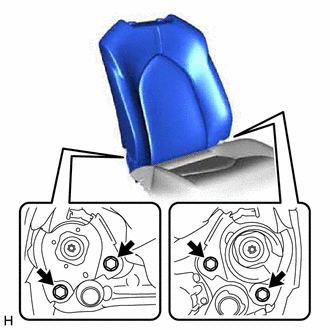

    6. Remove the 4 bolts to remove the separate type front seatback assembly from the separate type front seat cushion assembly.
      GTY772007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT SEAT HEADREST SUPPORT

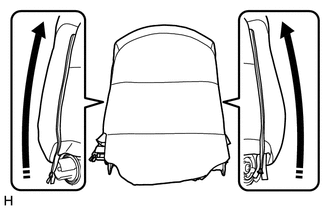

    1. Open the 2 fasteners.
      GTY756381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

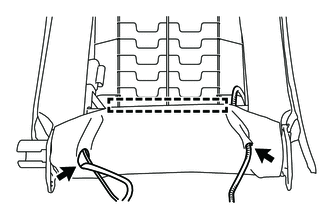

    2. Disengage the hook.
      GTY771896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pass each wire harness through the hole of the separate type front seatback cover.
    4. w/ Webbing

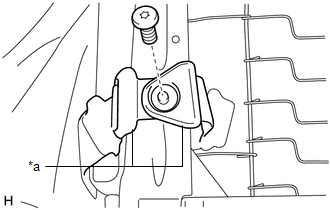

      1. Using a T25 "TORX" socket wrench, remove the screw and disengage the 2 brackets.
        GTY770838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bracket

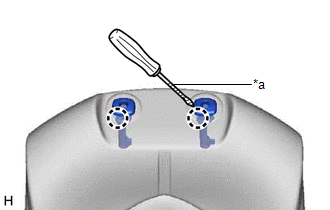

    5. Using a screwdriver, disengage the 2 claws and remove the 2 front seat headrest supports.
      GTY745745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  15. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Remove the separate type front seatback cover with pad.
  16. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. w/o Fastener:

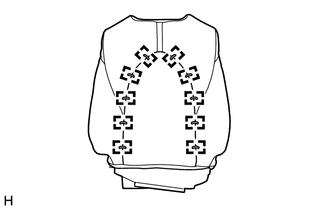

      1. Remove the 10 hog rings to remove the separate type front seatback cover from the separate type front seatback pad.
        GTY926995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Fastener:

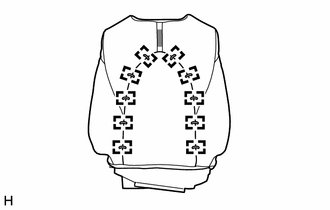

      1. Remove the 10 hog rings, disengage the fastener and remove the separate type front seatback cover from the separate type front seatback pad.
        GTY757335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fastener
  17. REMOVE FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 10

  18. REMOVE FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 18

  19. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 9

  20. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY RH (for Front Passenger Side)

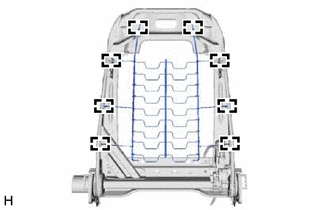

    1. Disengage the 8 hooks to remove the front seatback spring sub-assembly RH from the front seatback frame sub-assembly.
      GTY756306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT NO. 2 SEATBACK HOOK

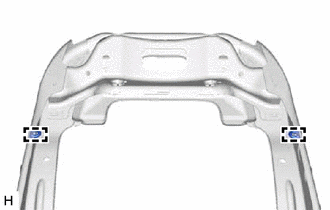

    1. Disengage the 2 clamps to remove the 2 front No. 2 seatback hooks from the front seatback frame sub-assembly.
      GTY841876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT SEAT NO. 2 WIRE
    1. Disconnect each connector and disengage each clamp to remove the front seat No. 2 wire.
  23. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. w/ Seat Heater System:

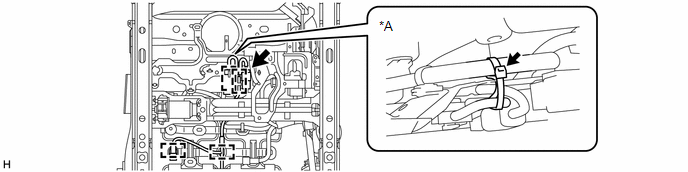

      1. Disengage the wire harness clamp. (w/ Wire Harness Clamp)
        GTY1177118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Wire Harness Clamp - -
      2. Disengage the 4 clamps.
      3. Disconnect the connector to separate the front seat cushion heater assembly wire harness.

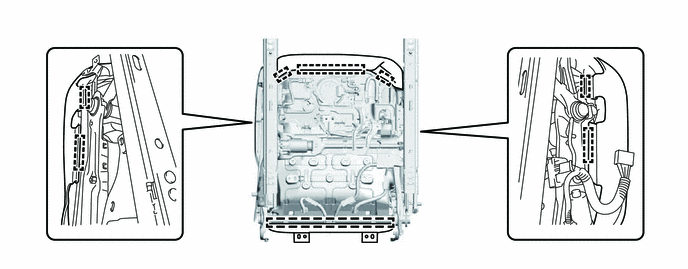

    2. Disengage each hook and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.
      GTY829734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

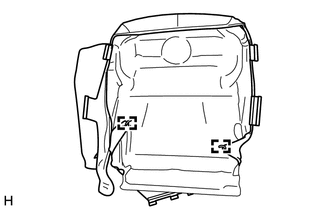

    1. Remove the 2 hog rings.
      GTY756334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

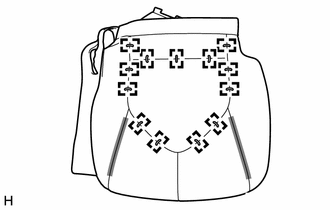

    2. Remove the 13 hog rings, disengage the 2 fasteners and remove the separate type front seat cushion cover from the separate type front seat cushion pad.
      GTY763673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
  25. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 9

  26. REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER

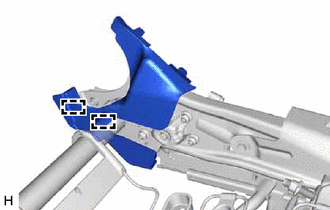

    1. Disengage the 2 guides to remove the LH seat reclining adjuster inside cover.
      GTY786769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)

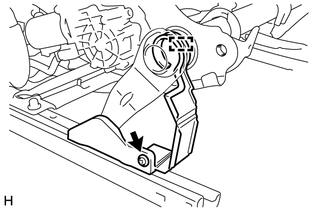

    1. Remove the screw.
      GTY755905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the hook.

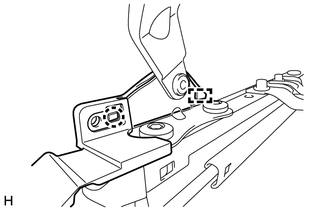

    3. Disengage the claw and guide to remove the front seat lower cushion shield LH.
      GTY755907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)

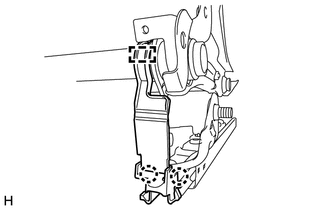

    1. Disengage the hook.
      GTY755882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the front seat lower cushion shield RH.
  29. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (for Front Passenger Side)

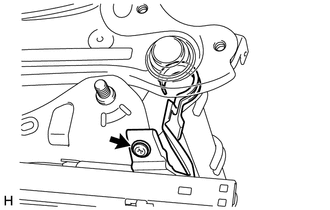

    1. Remove the screw.
      GTY755904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

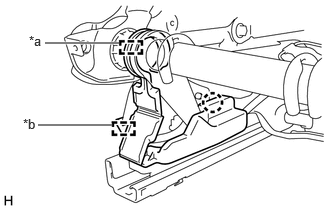

    2. Disengage the hook.
      GTY758703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    3. Disengage the claw and guide to remove the front seat lower cushion shield LH.
  30. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (for Front Passenger Side)

    HINT:

    Use the same procedure as for the front seat lower cushion shield LH (for Driver Side).

  31. REMOVE SEAT TRACK UPPER RAIL COVER LH

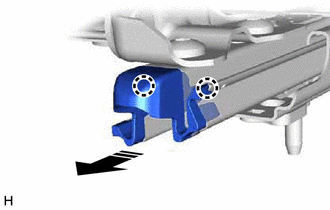

    1. Disengage the 2 claws to remove the seat track upper rail cover LH as shown in the illustration.
      GTY747040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  32. REMOVE SEAT TRACK UPPER RAIL COVER RH

    HINT:

    Use the same procedure as for the LH side.

  33. REMOVE LH SEAT SEAT TRACK UPPER RAIL COVER (for Driver Side)

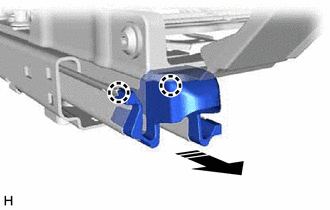

    1. Disengage the 2 claws to remove the LH seat seat track upper rail cover as shown in the illustration.
      GTY770753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  34. REMOVE RH SEAT SEAT TRACK UPPER RAIL COVER (for Front Passenger Side)

    HINT:

    • Use the same procedure as for the LH seat seat track upper rail cover (for Driver Side).
    • Use the same procedure for both RH seat seat track upper rail covers.
  35. REMOVE FRONT SEAT WIRE

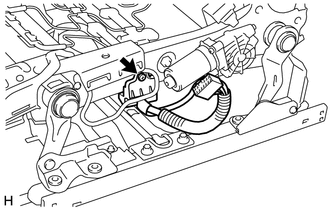

    1. Remove the screw.
      GTY755883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and disengage each clamp to remove the front seat wire.
  36. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

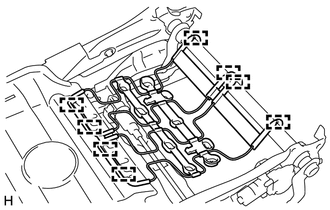

    1. Disengage the 8 hooks to remove the front seat cushion spring sub-assembly from the front seat adjuster assembly.
      GTY771908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE FRONT SEAT CUSHION PANEL SUB-ASSEMBLY

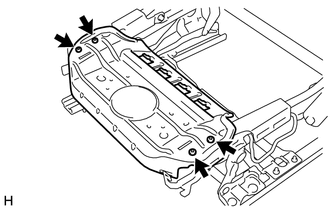

    1. Remove the 4 screws and front seat cushion panel sub-assembly from the front seat adjuster assembly.
      GTY755880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
