Disassembly [03/2017 - 09/2019]: Procedure

  1. REMOVE OCCUPANT DETECTION ECU

    Refer to PROCEDURE - Step 2 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 3 [06/2017 - 09/2019]

  2. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

    Refer to PROCEDURE - Step 4 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 4 [06/2017 - 09/2019]

  3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER
    1. GTY753003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the rubber band of the separate type front seatback cover.

  4. REMOVE VERTICAL ADJUSTING HANDLE RH

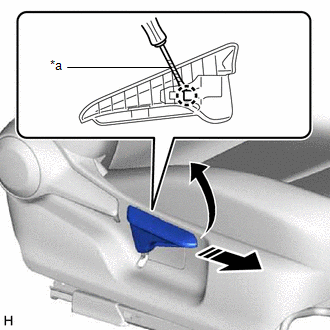

    1. Operate the vertical adjusting handle RH and using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the vertical adjusting handle RH as shown in the illustration.
      GTY741656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this direction
  5. REMOVE RECLINING HINGE COVER RH

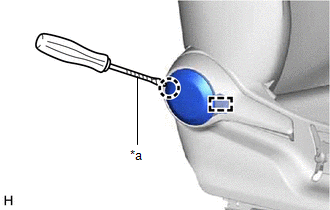

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
      GTY745680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Disengage the guide to remove the reclining hinge cover RH.
  6. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

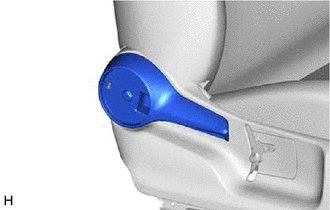

    1. GTY748038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the reclining adjuster release handle RH.

  7. REMOVE SEAT ADJUSTER COVER CAP RH

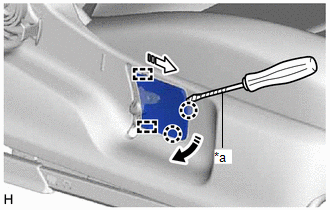

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.
      GTY742987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this direction (1)
      Remove in this direction (2)
    2. Disengage the 2 guides to remove the seat adjuster cover cap RH as shown in the illustration.
  8. REMOVE FRONT SEAT CUSHION SHIELD RH
    1. Disengage the 2 claws.

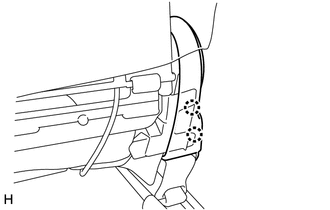

      GTY748111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

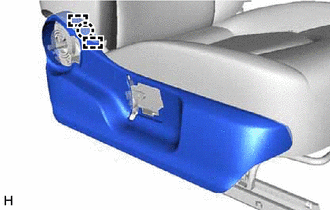

    2. Disengage the claw and 2 guides.
      GTY759764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

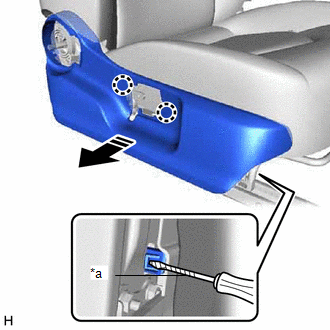

    3. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and slightly pull the front seat cushion shield RH as shown in the illustration.
      GTY745040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this direction
    4. Disengage the guide to remove the front seat cushion shield RH as shown in the illustration.

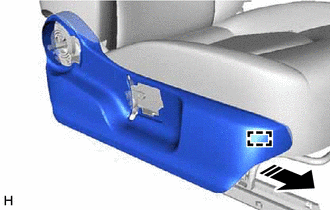

      GTY743849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
  9. REMOVE FRONT SEAT INNER CUSHION SHIELD RH
    1. Disengage the 2 claws.
      GTY748114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

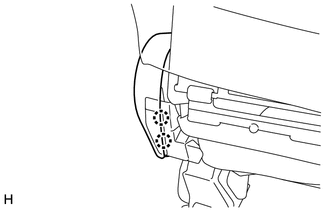

    2. Disengage the 2 claws and 2 guides to remove the front seat inner cushion shield RH as shown in the illustration.

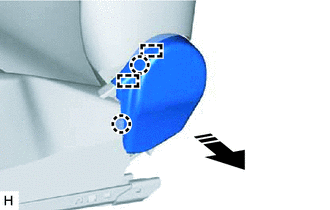

      GTY750945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
  10. REMOVE LOWER NO. 2 SEAT TRACK SPACER
    GTY759725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

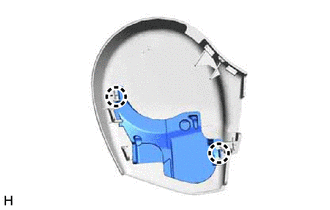

    1. Disengage the 2 claws to remove the lower No. 2 seat track spacer from the front seat inner cushion shield RH.
  11. REMOVE LOWER NO. 1 SEAT TRACK SPACER
    GTY759728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

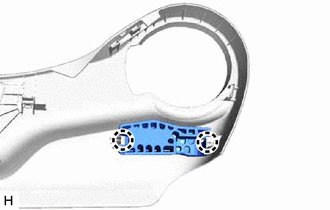

    1. Disengage the 2 claws to remove the lower No. 1 seat track spacer from the front seat cushion shield RH.
  12. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY
    1. Disengage the 2 hooks.
      GTY759758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and 4 clamps to separate the front seat airbag assembly wire harness.

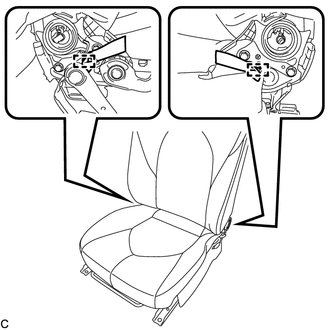

      GTY753004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the 4 clamps first.

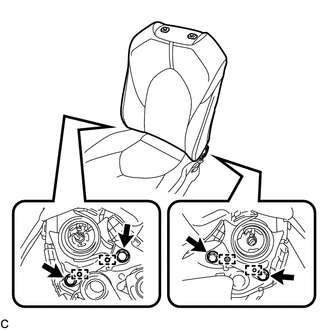

    3. Remove the 4 bolts.
      GTY759757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 guides to remove the separate type front seatback assembly from the separate type front seat cushion assembly.
  13. REMOVE FRONT SEAT HEADREST SUPPORT
    1. Disengage the 3 hooks.

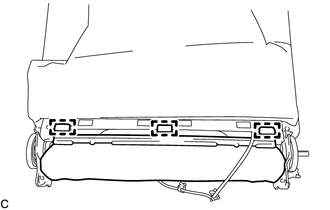

      GTY752998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the 2 fasteners.
      GTY605596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and remove the 2 front seat headrest supports.
      GTY759759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Remove the separate type front seatback cover with pad.
  15. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. Using a screwdriver, disengage the 9 claws and remove the separate type front seatback cover from the separate type front seatback pad as shown in the illustration.

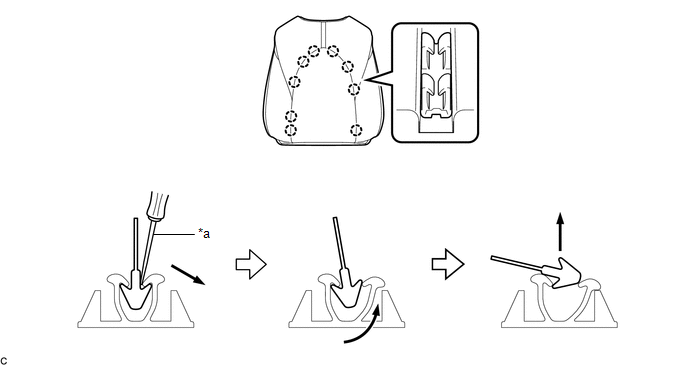

      GTY760272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  16. REMOVE FRONT SEAT AIRBAG ASSEMBLY RH

    Refer to PROCEDURE - Step 20

  17. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY RH
    1. Disengage the 2 claws to remove the 2 front seatback edge protectors from the front seatback frame sub-assembly RH.
      GTY748032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

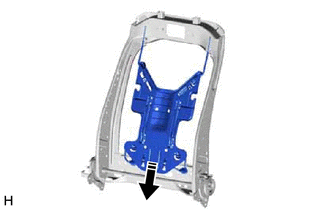

    2. Remove the front seatback spring sub-assembly RH from the front seatback frame sub-assembly RH as shown in the illustration.
      GTY753414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this direction
  18. REMOVE FRONT SEATBACK EDGE PROTECTOR
    1. Remove the 2 front seatback edge protectors from the front seatback spring sub-assembly RH.
  19. REMOVE FRONT NO. 1 SEATBACK HOOK
    1. Remove the 2 front No. 1 seatback hooks from the front seatback frame sub-assembly RH.
      GTY574545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. Disengage the 2 hooks.

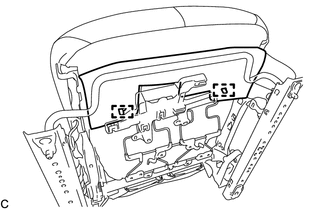

      GTY752999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

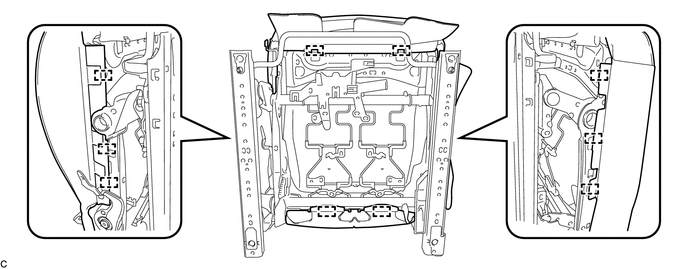

    2. Disengage the 10 hooks and remove the separate type front seat cushion cover with pad from the separate type front seat cushion spring assembly.
      GTY753000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

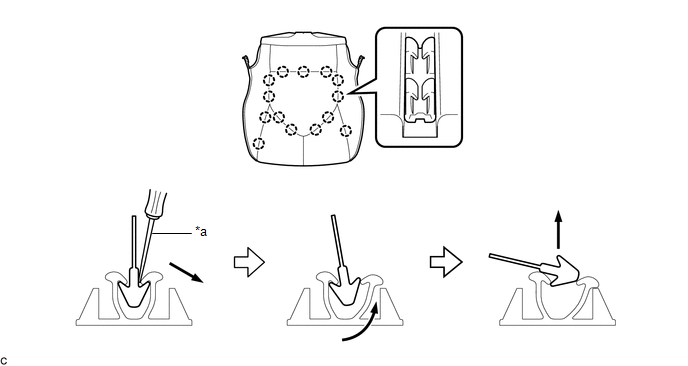

    1. Using a screwdriver, disengage the 14 claws and remove the separate type front seat cushion cover from the separate type front seat cushion pad as shown in the illustration.
      GTY772239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver - -
  22. REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER LH
    1. GTY759723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

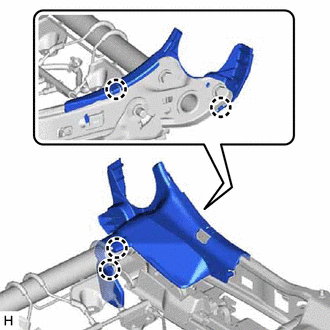

      Disengage the 4 claws to remove the RH seat reclining adjuster inside cover LH.

  23. REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  24. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH
    1. Disengage the hook.

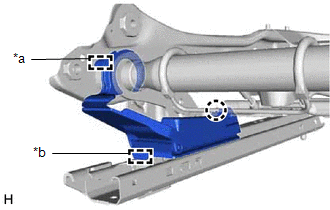

      GTY743175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Disengage the claw and guide to remove the front seat lower cushion shield LH.
  25. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH
    1. Disengage the hook.

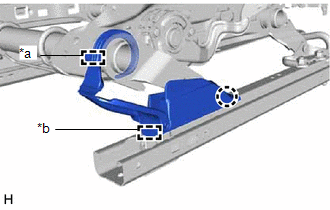

      GTY768812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Disengage the claw and guide to remove the front seat lower cushion shield RH.
  26. REMOVE FRONT SEAT WIRE RH
    1. Disconnect each connector and disengage each clamp to remove the front seat wire RH.
  27. REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER RH
    1. Remove the 2 screws.

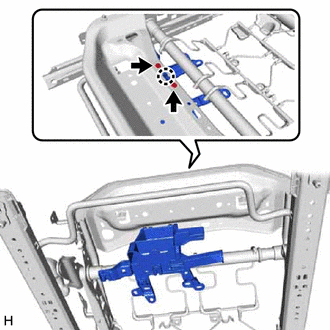

      GTY770172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the front seat cushion wire harness holder RH.
  28. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY RH
    1. Disengage the 6 hooks to remove the front seat cushion spring sub-assembly RH from the front seat adjuster assembly RH.

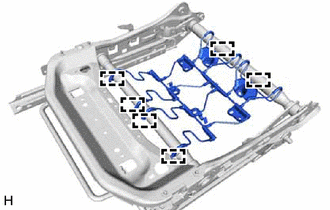

      GTY748036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE SEAT TRACK ADJUSTING HANDLE

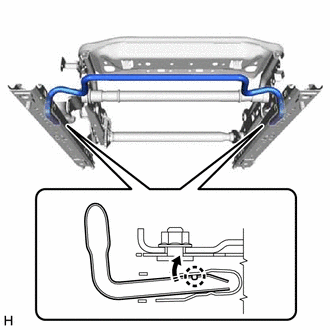

    1. Disengage the 2 claws to remove the seat track adjusting handle from the front seat adjuster assembly RH.
      GTY770190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT SEAT VERTICAL ADJUSTER ASSEMBLY
    1. Remove the front seat vertical adjuster assembly.
      1. Remove the 3 nuts and vertical adjuster plate.

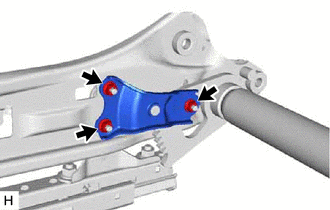

        GTY757862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

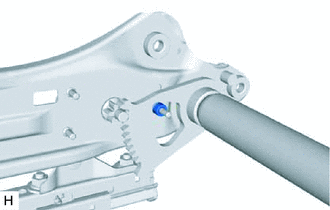

      2. Remove the vertical adjuster spacer.
        GTY757859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

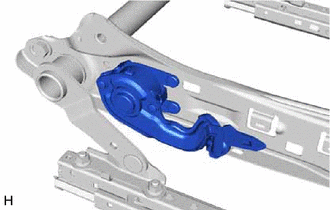

      3. Remove the front vertical adjuster brake sub-assembly RH.
        GTY772344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE VERTICAL ADJUSTER BRACKET COVER RH
    1. Disengage the claw to remove the vertical adjuster bracket cover RH from the front vertical adjuster brake sub-assembly RH.
      GTY772345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
