Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY RH

    Refer to REMOVAL [03/2017 - 09/2019]

  2. REMOVE OCCUPANT DETECTION ECU

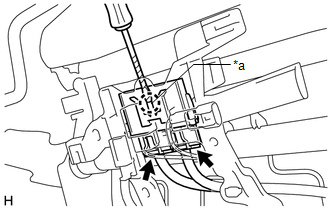

    1. Disconnect the 2 connectors.
      GTY747725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the occupant detection ECU.
