Reassembly [10/2020 - 08/2021]: Procedure

  1. INSTALL GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
    1. With the cylinder lock plate pressed, insert the glove compartment door lock cylinder assembly into the glove compartment door lever to install it as shown in the illustration.
      GTY1008523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cylinder Lock Plate
      Install in this Direction
      NOTE:

      After installing the glove compartment door lock cylinder assembly, lift the glove compartment door lever and confirm that the cylinder lock plate is correctly protruding and that the glove compartment door lock cylinder assembly does not move even when pushed from the rear.

  2. INSTALL INSTRUMENT PANEL CUSHION
    1. Clean the instrument panel safety pad sub-assembly surface.
      1. Remove any remaining double-sided tape from the instrument panel safety pad sub-assembly.
      2. Wipe off any tape adhesive residue with cleaner.
    2. Remove the release paper from a new instrument panel cushion.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Install the instrument panel cushion as shown in the illustration.
      GTY765285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Edge of Curved Surface
      *b Outline
  3. INSTALL NO. 1 INSTRUMENT PANEL PIN

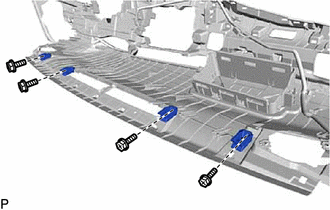

    1. Install the 4 No. 1 instrument panel pins with the 4 screws <C>.
      GTY750316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL HOLE COVER (w/ Headup Display)
    1. Engage the 3 guides.
      GTY751768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 claws to install the instrument panel hole cover.
      GTY751769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH
    1. Engage the 5 guides.
      GTY746851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips to install the No. 1 defroster nozzle garnish.
      GTY746854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 METER BRACKET SUB-ASSEMBLY (w/ Headup Display)

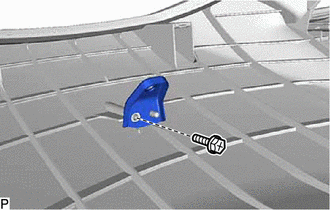

    1. Install the No. 2 meter bracket sub-assembly with the screw <C>.
      GTY751766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 METER BRACKET SUB-ASSEMBLY
    1. Install the No. 1 meter bracket sub-assembly with the screw <C>.
      GTY750310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

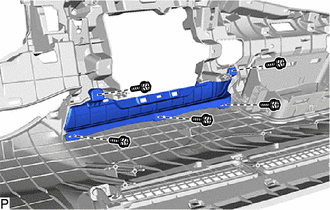

  8. INSTALL RADIO TUNER FINISH RETAINER
    1. Install the radio tuner finish retainer with the 5 screws <C>.
      GTY1015943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

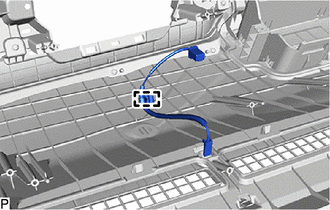

  9. INSTALL NO. 3 INSTRUMENT PANEL WIRE
    1. Engage the clamp to install the No. 3 instrument panel wire.
      GTY1015942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

    Refer to PROCEDURE - Step 1

  11. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/o Navigation System)

    Refer to PROCEDURE - Step 4

  12. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET (w/ Navigation System)

    Refer to PROCEDURE - Step 3

  13. INSTALL ANTENNA CORD SUB-ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 1

  14. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET (w/ Manual (SOS) Switch)

    Refer to PROCEDURE - Step 3

  15. INSTALL TELEPHONE AND GPS ANTENNA CORD (w/ Manual (SOS) Switch)

    Refer to PROCEDURE - Step 1

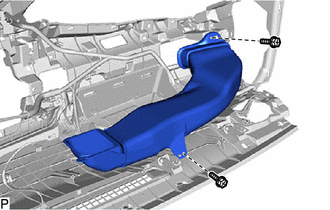

  16. INSTALL NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Install the No. 3 heater to register duct sub-assembly with the 2 screws <C>.
      GTY1015945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

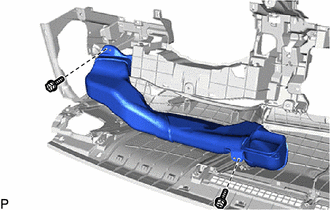

  17. INSTALL NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Install the No. 1 heater to register duct sub-assembly with the 2 screws <C>.
      GTY1015944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL METER MIRROR SUB-ASSEMBLY (w/ Headup Display)

    Refer to PROCEDURE - Step 1

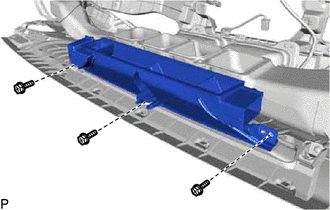

  19. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the defroster nozzle assembly with the 3 screws <C>.
      GTY750309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the claw as shown in the illustration.
      GTY741145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

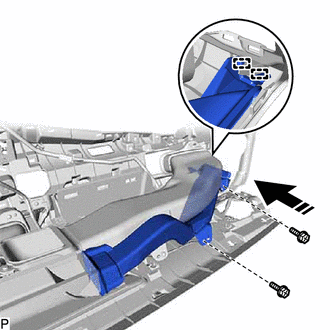

    2. Engage the 2 guides as shown in the illustration.
      GTY772500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the No. 2 side defroster nozzle duct with the 2 screws <C>.
  21. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. Engage the claw as shown in the illustration.
      GTY755492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

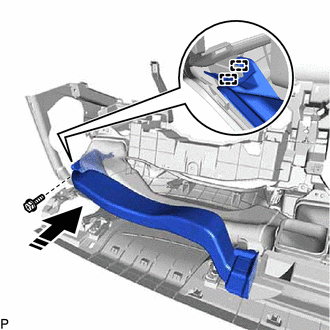

    2. Engage the 2 guides as shown in the illustration.
      GTY1005624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the No. 1 side defroster nozzle duct with the screw <C>.
  22. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 2
