Disassembly [09/2019 - 10/2020]: Procedure

  1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

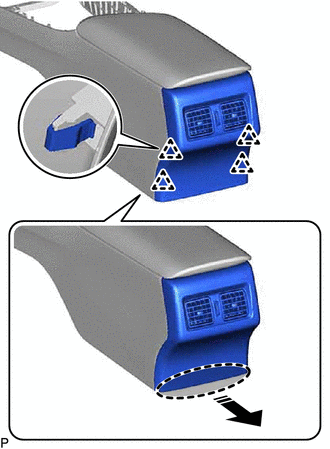

    1. Disengage the 4 clips as shown in the illustration.
      GTY772003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

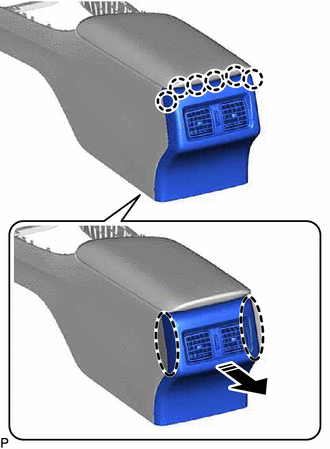

    2. Disengage the 6 claws to remove the console rear end panel sub-assembly as shown in the illustration.
      GTY757697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  2. REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/ Register)

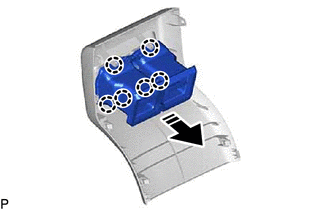

    1. Disengage the 6 claws to remove the console box register assembly as shown in the illustration.
      GTY766571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE REAR CONSOLE ARMREST ASSEMBLY
    1. Disengage the 2 guides.
      GTY746799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the E-ring.
      GTY753381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the console compartment door stopper pin as shown in the illustration.
      GTY746241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Disengage the guide to remove the console box mount bracket spring and console box spacer as shown in the illustration.
      GTY748626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Remove the rear console armrest assembly as shown in the illustration.
      GTY769196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE CONSOLE COMPARTMENT DOOR PANEL

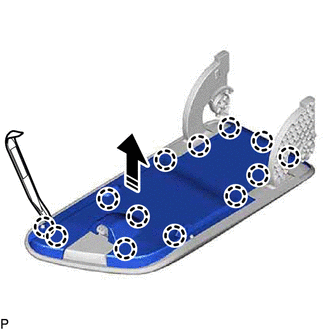

    1. Using a moulding remover, disengage the 13 claws to remove the console compartment door panel as shown in the illustration.
      GTY743665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE CONSOLE COMPARTMENT DOOR CUSHION
    1. Disengage the 2 claws to remove the 2 console compartment door cushions.
      GTY751777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
    1. Remove the 3 screws and console compartment door lock sub-assembly.
      GTY770994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY
    1. Remove the 6 screws and console compartment door hinge sub-assembly.
      GTY751782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE USB CHARGER SOCKET (w/ Power Outlet Socket)

    Refer to PROCEDURE - Step 2

  9. REMOVE CONSOLE BOX RETAINER
    1. Disengage the 2 claws to remove the console box retainer.
      GTY751781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 BOX SIDE PANEL

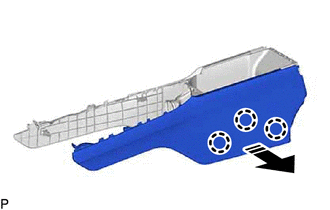

    1. Disengage the 3 claws as shown in the illustration.
      GTY750766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

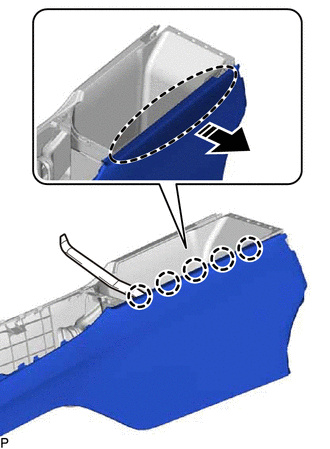

    2. Using a moulding remover, disengage the 5 claws to remove the No. 2 box side panel as shown in the illustration.
      GTY759767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction
  11. REMOVE NO. 1 BOX SIDE PANEL

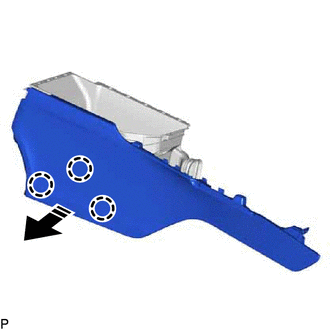

    1. Disengage the 3 claws as shown in the illustration.
      GTY763204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

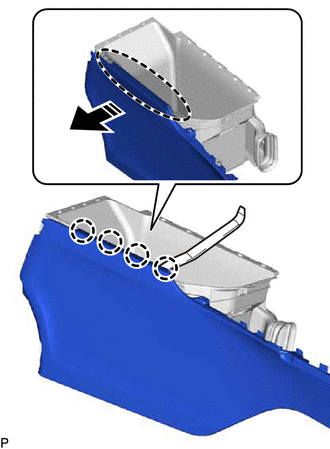

    2. Using a moulding remover, disengage the 4 claws to remove the No. 1 box side panel as shown in the illustration.
      GTY745482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction
  12. REMOVE NO. 3 CONSOLE BOX DUCT (w/ Register)
    1. Disengage the 2 claws.
      GTY751343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

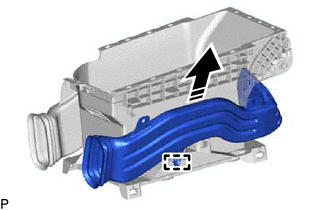

    2. Disengage the guide to remove the No. 3 console box duct as shown in the illustration.
      GTY750233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE NO. 2 CONSOLE BOX DUCT (w/ Register)
    1. Disengage the 2 claws.
      GTY750328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

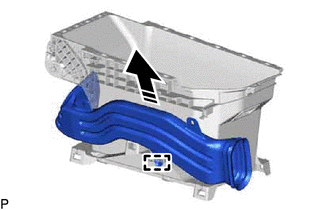

    2. Disengage the guide to remove the No. 2 console box duct as shown in the illustration.
      GTY751968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
