Removal [06/2017 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [06/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 03/2020] , or refer to REMOVAL [03/2020 - ]

  2. REMOVE USB CHARGER SOCKET

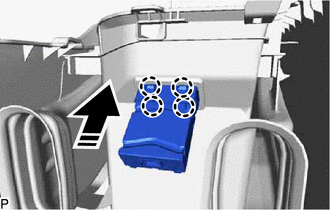

    1. Disengage the 4 claws and remove the USB charger socket as shown in the illustration.
      GTY759984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
