Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE REAR COMBINATION LIGHT COVER LH

    Refer to PROCEDURE - Step 8

  2. REMOVE REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE REAR BUMPER ASSEMBLY

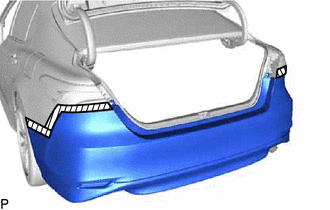

    1. Apply protective tape around the rear bumper assembly as shown in the illustration.
      GTY741381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 2 screws.

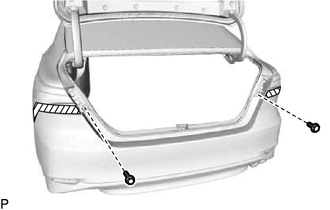

      GTY753162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip.

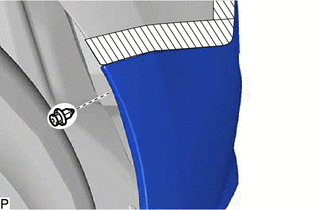

      GTY753167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    4. for Single Type:

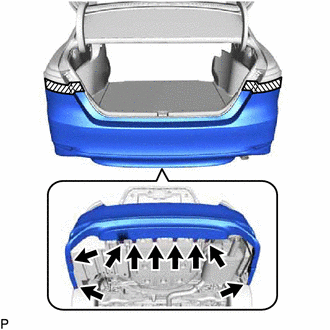

      GTY764230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 9 clips.
    5. for Dual Type:

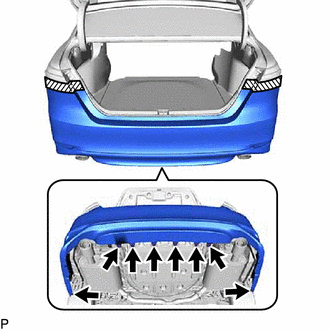

      GTY762067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 8 clips.

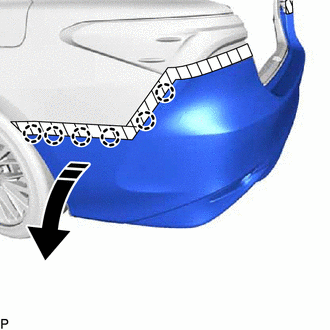

    6. Disengage the 6 claws as shown in the illustration.
      GTY742023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

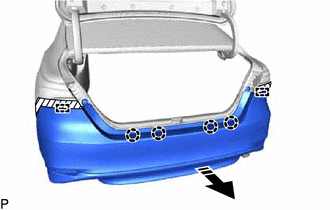

    7. Disengage the 4 claws and 2 guides to remove the rear bumper assembly as shown in the illustration.
      GTY759256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
