Removal [03/2017 - ]: Procedure

REMOVE SPARE WHEEL COVER ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE SPARE WHEEL COVER TRAY
Refer to PROCEDURE - Step 2
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 3
REMOVE LUGGAGE COMPARTMENT DOOR STRIKER COVER
Refer to PROCEDURE - Step 4
REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 5
REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER RH (for RH Side)
Refer to PROCEDURE - Step 6
REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER LH (for LH Side)
Refer to PROCEDURE - Step 7

REMOVE REAR COMBINATION LIGHT COVER

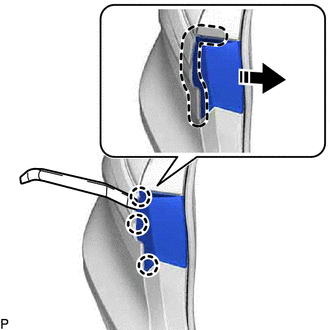

Using a moulding remover, disengage the 3 claws as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Insert Moulding Remover Here
	Remove in this Direction

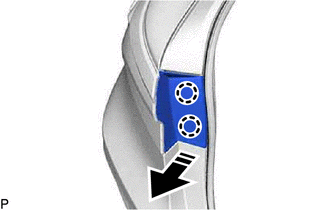

Disengage the 2 claws to remove the rear combination light cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE REAR COMBINATION LIGHT ASSEMBLY

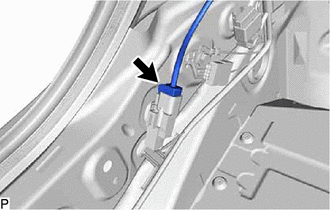

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

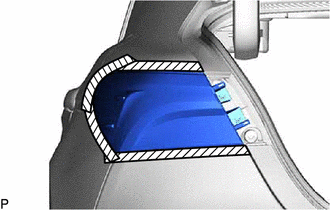

Apply protective tape around the rear combination light assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

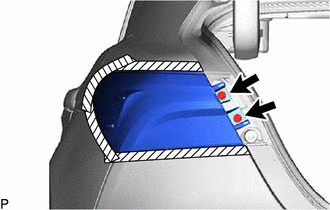

Remove the 2 screws.

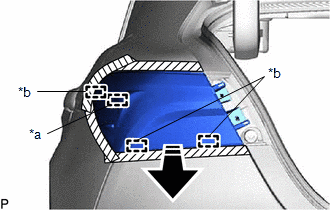

Pull the rear combination light assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light assembly.

NOTE:

To prevent the rear combination light assembly from falling when disengaging the pin and guides, lightly hold the rear combination light assembly.

*a	Pin
*b	Guide
	Remove in this Direction

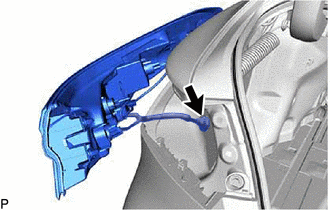

Disengage the grommet to remove the rear combination light assembly.
