- REMOVE REFLEX REFLECTOR ASSEMBLY LH
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the screw.
- Disengage the claw and guide to remove the reflex reflector assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REFLEX REFLECTOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE LOWER REAR BUMPER COVER (for Type A)
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 clips.
- Disengage the 12 claws to remove the lower rear bumper cover.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER EXTENSION MOULDING LH (for Type B)
- Disengage the 4 claws to remove the rear bumper extension moulding LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER EXTENSION MOULDING RH (for Type B)
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER CORNER EXTENSION LH (for Type B)
- Disengage the 4 claws and 4 guides to remove the rear bumper corner extension LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER CORNER EXTENSION RH (for Type B)
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER PAD

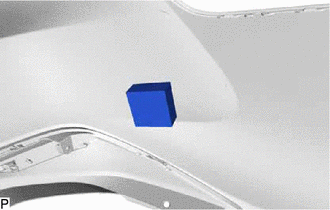

- Remove the rear bumper pad.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use the same procedure for the RH side and LH side.
- REMOVE SPARE WHEEL COVER ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE SPARE WHEEL COVER TRAY
Refer to PROCEDURE - Step 2
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Refer to PROCEDURE - Step 3
- REMOVE LUGGAGE COMPARTMENT DOOR STRIKER COVER
Refer to PROCEDURE - Step 4
- REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 5
- REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER RH
Refer to PROCEDURE - Step 6
- REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER LH
Refer to PROCEDURE - Step 7
- REMOVE REAR BUMPER SIDE RETAINER LH
- Remove the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

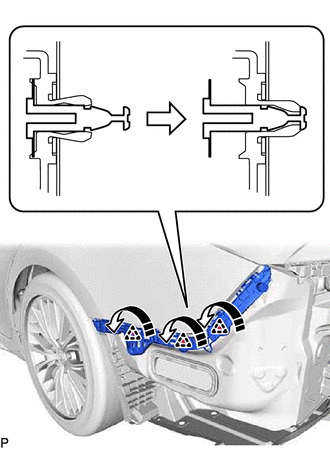

- Disengage the 3 clips as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Remove in this Direction |

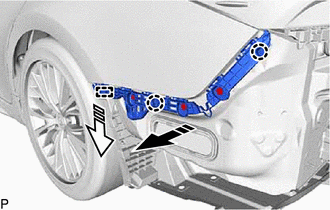

- Disengage the 2 claws as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction (1) |
 |
Remove in this Direction (2) |
- Disengage the guide to remove the rear bumper side retainer LH.
- REMOVE REAR BUMPER SIDE RETAINER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 9
- REMOVE REAR COMBINATION LIGHT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER UPPER RETAINER LH

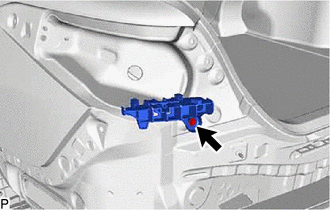

- Remove the screw and rear bumper upper retainer LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER UPPER RETAINER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER SIDE SEAL LH
- Remove the 2 grommets.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Single Type:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 3 clips and rear bumper side seal LH.
- for Dual Type:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 clips and rear bumper side seal LH.
- REMOVE REAR BUMPER SIDE SEAL RH
- Remove the 2 grommets.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 clips and rear bumper side seal RH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER ENERGY ABSORBER (for Type A)

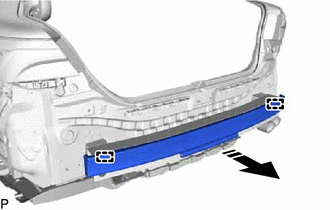

- Disengage the 2 guides to remove the rear bumper energy absorber as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE REAR BUMPER ENERGY ABSORBER (for Type B)

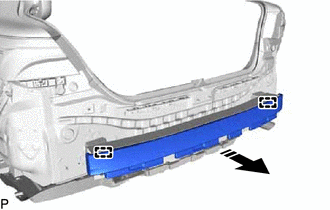

- Disengage the 2 guides to remove the rear bumper energy absorber as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE REAR BUMPER REINFORCEMENT
- Remove the 6 bolts and rear bumper reinforcement.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
