Reassembly [10/2020 - ]: Procedure

  1. INSTALL FRONT BUMPER SIDE RETAINER LH
    1. Engage the 2 clips as shown in the illustration.
      GTY744456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front bumper side retainer LH with the bolt.
      GTY753182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  2. INSTALL FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  3. INSTALL FRONT BUMPER REINFORCEMENT
    1. Install the front bumper reinforcement with the 8 bolts.
      GTY753168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    2. Engage the 5 clamps.
      GTY753181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the headlight assembly LH.

      Refer to PROCEDURE - Step 1

    4. Install the headlight assembly RH.

      HINT:

      Use the same procedure as for the LH side.

  4. INSTALL FRONT BUMPER ENERGY ABSORBER
    1. Engage the 4 guides to install the front bumper energy absorber as shown in the illustration.
      GTY750957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL NO. 2 FRONT BUMPER ENERGY ABSORBER
    1. Engage the 2 guides to install the No. 2 front bumper energy absorber as shown in the illustration.
      GTY750678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  6. INSTALL FRONT FENDER LINER RETAINER
    1. Engage the 2 claws to install the 2 front fender liner retainers as shown in the illustration.
      GTY753027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  7. INSTALL FRONT BUMPER SIDE MOULDING LH (for Mesh Type Radiator Grille)
    1. Engage the 2 guides and 2 claws.
      GTY1015624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front bumper side moulding LH with the 2 clips.
      GTY1015606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT BUMPER SIDE MOULDING RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  9. INSTALL LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Bar Type Radiator Grille)
    1. Engage the 17 claws.
      GTY1016260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the lower radiator grille sub-assembly with the 4 screws.
      GTY1015596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Engage the 6 guides and 24 claws.
        GTY1015604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the lower radiator grille sub-assembly with the 4 screws.
        GTY1015603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for TRD:
      1. Engage the 18 claws.
        GTY753186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the lower radiator grille sub-assembly with the 2 screws.
        GTY771303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL LOWER CENTER RADIATOR GRILLE MOULDING (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Engage the guide and 4 claws.
        GTY1015539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the lower center radiator grille moulding with the screw.
        GTY1015568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LOWER RADIATOR GRILLE MOULDING LH (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Engage the guide and 8 claws.
        GTY1015567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the lower radiator grille moulding LH with the screw.
        GTY1015566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL LOWER RADIATOR GRILLE MOULDING RH (for Mesh Type Radiator Grille)

    except TRD:

    HINT:

    Use the same procedure as for the LH side.

  14. INSTALL FOG LIGHT COVER LH (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Engage the 6 claws.
        GTY1015592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the clip.
        GTY1015589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Install the fog light cover LH with the 4 clips.
        GTY1018069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for TRD:
      1. Engage the 6 claws to install the fog light cover LH.
        GTY764209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FOG LIGHT COVER RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  16. INSTALL FRONT BUMPER SIDE MOULDING LH (for Bar Type Radiator Grille)
    1. Engage the 2 guides and 3 claws.
      GTY1015585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front bumper side moulding LH with the 5 screws.
      GTY1015583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT BUMPER SIDE MOULDING RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  18. INSTALL RADIATOR GRILLE (for Bar Type Radiator Grille)
    1. Engage the guide and 10 claws.
      GTY1018226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator grille with the 2 screws.
      GTY1018225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL RADIATOR GRILLE (for Mesh Type Radiator Grille)
    1. Engage the 8 claws.
      GTY1018179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 10 screws.
      GTY1015580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the radiator grille with the 2 clips.
      GTY1015578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FRONT CENTER BUMPER BAR (for Bar Type Radiator Grille)
    1. Install the 4 screws.
      GTY1018298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b Screw
    2. Install the front center bumper bar with the 2 clips.
  21. INSTALL FRONT BUMPER UPPER RETAINER

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Engage the 2 guides.
      GTY1015565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the front bumper upper retainer with the screw.
  22. INSTALL RADIATOR GRILLE EMBLEM ASSEMBLY
    1. Engage the guide and 4 claws.
      GTY1015564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator grille emblem assembly with the screw.
      GTY1015563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL HOOD TO FRONT END PANEL SEAL

    HINT:

    When installing the hood to front end panel seal, heat the front bumper cover using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Front Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front bumper cover excessively.

    1. Clean the front bumper cover surface.
      1. Using a heat light, heat the front bumper cover surface.
      2. Remove any remaining double-sided tape from the front bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Engage the 6 clips.
      GTY1015558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the release paper from a new hood to front end panel seal.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

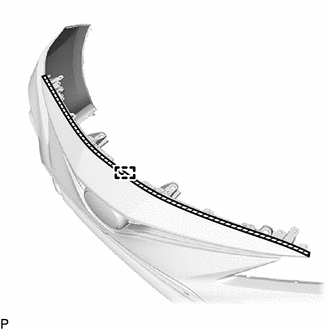

    4. Engage the guide and attach the double-sided tape as shown in the illustration to install the hood to front end panel seal.
      GTY1014996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape

      HINT:

      Press the hood to front end panel seal firmly to install it.

  24. INSTALL FRONT SPOILER (for TRD)

    HINT:

    When installing the front spoiler, heat the front bumper cover using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Front Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front bumper cover excessively.

    1. Clean the front bumper cover surface.
      1. Using a heat light, heat the front bumper cover surface.
      2. Remove the double-sided tape from the front bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Engage the 30 claws.
      GTY847183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the release paper from a new front spoiler.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    4. Attach the double-sided tape as shown in the illustration.
      GTY926955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape

      HINT:

      • Press the front spoiler firmly to install it.
      • Use the same procedure for the RH side and LH side.
    5. Install the front spoiler with the 2 screws and 2 clips.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY928273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
  25. INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    for Bar Type Radiator Grille:

    Refer to PROCEDURE - Step 1

  26. INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    for Mesh Type Radiator Grille:

    Refer to PROCEDURE - Step 2

  27. INSTALL FRONT BUMPER COVER INSERT (w/ Panoramic View Monitor System)
    1. for Mesh Type Radiator Grille:
      GTY1015510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 claws to install the front bumper cover insert.
  28. INSTALL FRONT BUMPER PAD LH (for Bar Type Radiator Grille)

    HINT:

    When installing the front bumper pad LH, heat the front bumper cover using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Front Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front bumper cover excessively.

    1. Clean the front bumper cover surface.
      1. Using a heat light, heat the front bumper cover surface.
      2. Remove any remaining double-sided tape from the front bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Remove the release paper from a new front bumper pad LH.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

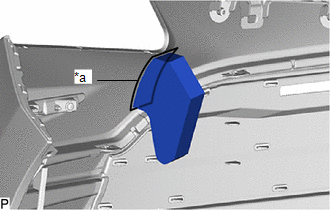

    3. Install the front bumper pad LH as shown in the illustration.
      GTY1015955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Press the front bumper pad LH firmly to install it.

  29. INSTALL FRONT BUMPER PAD RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  30. INSTALL FRONT BUMPER PAD LH (for Mesh Type Radiator Grille)
    1. Engage the guide and 2 claws to install the front bumper pad LH.
      GTY1015530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FRONT BUMPER PAD RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  32. INSTALL FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY (for Bar Type Radiator Grille)

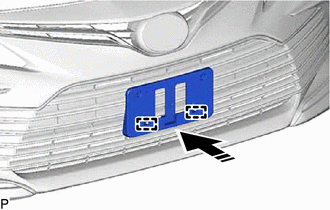

    1. Engage the 2 guides as shown in the illustration.
      GTY1015872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front license plate bracket sub-assembly with the 2 screws.
      GTY1015523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY (for Mesh Type Radiator Grille)

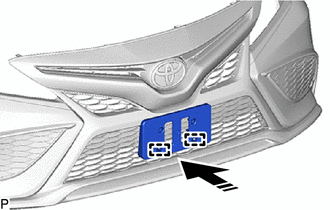

    1. Engage the 2 guides as shown in the illustration.
      GTY1016302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front license plate bracket sub-assembly with the 2 screws.
      GTY1015526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

    Refer to PROCEDURE - Step 1

  35. INSTALL NO. 4 ENGINE ROOM WIRE (w/ Parking Support Brake System)
    1. for Bar Type Radiator Grille:
      1. Engage the 7 clamps to install the No. 4 engine room wire.
        GTY1015512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Mesh Type Radiator Grille:
      1. Engage the 12 clamps to install the No. 4 engine room wire.
        GTY1015533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 1

  37. INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 3

  38. INSTALL FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 4

scientia non olet · About LEMON Manuals
