Installation [06/2017 - ]: Procedure

1. Connect each connector.
2. For Bulb Type Turn Signal Light:
   1. Engage the clamp.

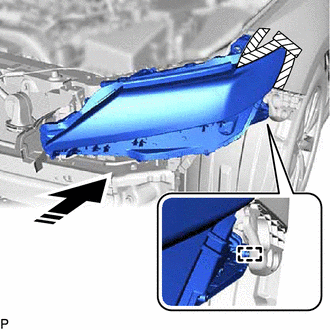

3. Engage the guide to temporarily install the headlight assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

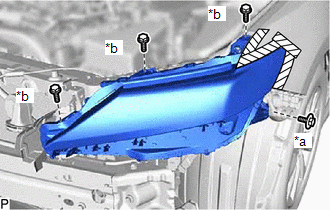

4. Install the headlight assembly with the bolt and 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt
   *b	Screw

   Bolt

   Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

5. Remove the protective tape.

Refer to INSTALLATION [06/2017 - 10/2020] , or refer to INSTALLATION [10/2020 - ]

Refer to ADJUSTMENT [03/2017 - ]
