Reassembly [09/2019 - 10/2020]: Procedure

  1. INSTALL FRONT BUMPER SIDE RETAINER LH
    1. Engage the 2 clips as shown in the illustration.
      GTY744456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front bumper side retainer LH with the bolt.
      GTY753182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  2. INSTALL FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  3. INSTALL FRONT BUMPER REINFORCEMENT
    1. Install the front bumper reinforcement with the 8 bolts.
      GTY753168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    2. Engage the 5 clamps.
      GTY753181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the headlight assembly LH.

      Refer to PROCEDURE - Step 1

    4. Install the headlight assembly RH.

      HINT:

      Use the same procedure as for the LH side.

  4. INSTALL FRONT BUMPER ENERGY ABSORBER
    1. Engage the 4 guides to install the front bumper energy absorber as shown in the illustration.
      GTY750957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL NO. 2 FRONT BUMPER ENERGY ABSORBER
    1. Engage the 2 guides to install the No. 2 front bumper energy absorber as shown in the illustration.
      GTY750678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  6. INSTALL FRONT FENDER LINER RETAINER
    1. Engage the 2 claws to install the 2 front fender liner retainers as shown in the illustration.
      GTY753027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  7. INSTALL RADIATOR GRILLE SIDE MOULDING LH (for Mesh Type Radiator Grille)
    1. Engage the 2 guides and 2 claws.
      GTY753185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator grille side moulding LH with the 2 clips.
      GTY753187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL RADIATOR GRILLE SIDE MOULDING RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  9. INSTALL LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Bar Type Radiator Grille)
    1. Engage the 23 claws.
      GTY753258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the lower radiator grille sub-assembly with the 6 screws.
      GTY753257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Mesh Type Radiator Grille)
    1. Engage the 18 claws.
      GTY753186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the lower radiator grille sub-assembly with the 2 screws.
      GTY771303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FOG LIGHT COVER LH (for Mesh Type Radiator Grille)
    1. Engage the 6 claws to install the fog light cover LH.
      GTY764209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FOG LIGHT COVER RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  13. INSTALL LOWER RADIATOR GRILLE MOULDING LH (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Engage the 10 claws to install the lower radiator grille moulding LH.
        GTY753192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL LOWER RADIATOR GRILLE MOULDING RH (for Mesh Type Radiator Grille)

    except TRD:

    HINT:

    Use the same procedure as for the LH side.

  15. INSTALL LOWER RADIATOR GRILLE MOULDING (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Engage the 16 claws.
        GTY753191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the lower radiator grille moulding with the 2 screws.
        GTY753190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL RADIATOR GRILLE (for Bar Type Radiator Grille)
    1. Install the 6 screws.
      GTY762071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator grille with the 2 clips.
      GTY753261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL RADIATOR GRILLE (for Mesh Type Radiator Grille)
    1. Install the 10 screws.
      GTY771304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator grille with the 2 clips.
      GTY753193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL RADIATOR GRILLE SIDE MOULDING LH (for Bar Type Radiator Grille)
    1. Engage the 3 claws as shown in the illustration.
      GTY762333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the radiator grille side moulding LH with the screw.
      GTY753269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL RADIATOR GRILLE SIDE MOULDING RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  20. INSTALL RADIATOR GRILLE EMBLEM ASSEMBLY
    1. Engage the guide and 2 claws.
      GTY753268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator grille emblem assembly with the 2 screws.
      GTY771323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL HOOD TO FRONT END PANEL SEAL

    HINT:

    When installing the hood to front end panel seal, heat the front bumper cover using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Front Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front bumper cover excessively.

    1. Clean the front bumper cover surface.
      1. Using a heat light, heat the front bumper cover surface.
      2. Remove any remaining double-sided tape from the front bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Remove the release paper from a new hood to front end panel seal.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Engage the guide to attach the double-sided tape as shown in the illustration.
      GTY751845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape

      HINT:

      Press the hood to front end panel seal firmly to install it.

    4. Engage the 6 clips to install the hood to front end panel seal.
      GTY753264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL FRONT SPOILER (for TRD)

    HINT:

    When installing the front spoiler, heat the front bumper cover using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Front Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front bumper cover excessively.

    1. Clean the front bumper cover surface.
      1. Using a heat light, heat the front bumper cover surface.
      2. Remove the double-sided tape from the front bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.

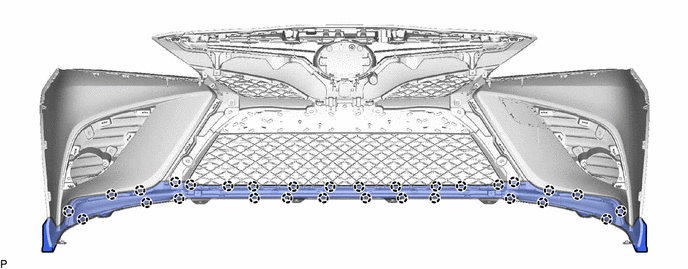

    2. Engage the 30 claws.
      GTY847183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the release paper from a new front spoiler.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

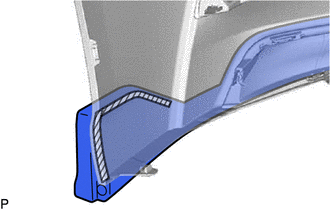

    4. Attach the double-sided tape as shown in the illustration.
      GTY926955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape

      HINT:

      • Press the front spoiler firmly to install it.
      • Use the same procedure for the RH side and LH side.

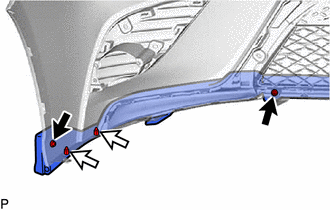

    5. Install the front spoiler with the 2 screws and 2 clips.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY928273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
  23. INSTALL NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)
    1. for Bar Type Radiator Grille:
      1. Engage the 10 clamps to install the No. 4 engine room wire.
        GTY754117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Mesh Type Radiator Grille:
      1. Engage the 12 clamps to install the No. 4 engine room wire.
        GTY771492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 1

  25. INSTALL FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    for Bar Type Radiator Grille:

    Refer to PROCEDURE - Step 2

  26. INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

  27. INSTALL FRONT CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 5

  28. INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    for Bar Type Radiator Grille:

    Refer to PROCEDURE - Step 1

  29. INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    for Mesh Type Radiator Grille:

    Refer to PROCEDURE - Step 2

  30. INSTALL FRONT BUMPER COVER INSERT (w/ Panoramic View Monitor System)
    1. for Mesh Type Radiator Grille:
      GTY750703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 claws to install the front bumper cover insert.
  31. INSTALL FRONT BUMPER PAD LH (for Bar Type Radiator Grille)
    1. Engage the guide and 2 claws to install the front bumper pad LH.
      GTY771322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL FRONT BUMPER PAD RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  33. INSTALL FRONT BUMPER PAD LH (for Mesh Type Radiator Grille)
    1. Engage the guide and 2 claws to install the front bumper pad LH.
      GTY762066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL FRONT BUMPER PAD RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  35. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET (for Bar Type Radiator Grille)
    1. Engage the 2 guides as shown in the illustration.
      GTY768894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front bumper extension mounting bracket with the 2 screws.
      GTY753248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET (for Mesh Type Radiator Grille)
    1. Engage the 2 guides as shown in the illustration.
      GTY772157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front bumper extension mounting bracket with the 2 screws.
      GTY753212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

    Refer to PROCEDURE - Step 1
