Disassembly [10/2020 - ]: Procedure

  1. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 3

  3. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 5

  4. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Parking Support Brake System)
    1. for Bar Type Radiator Grille:
      1. Disengage the 7 clamps to remove the No. 4 engine room wire.

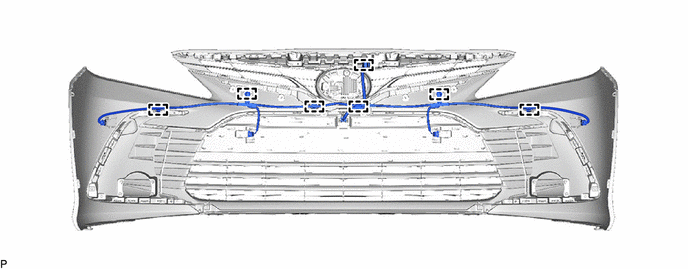

        GTY1015512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Mesh Type Radiator Grille:
      1. Disengage the 12 clamps to remove the No. 4 engine room wire.

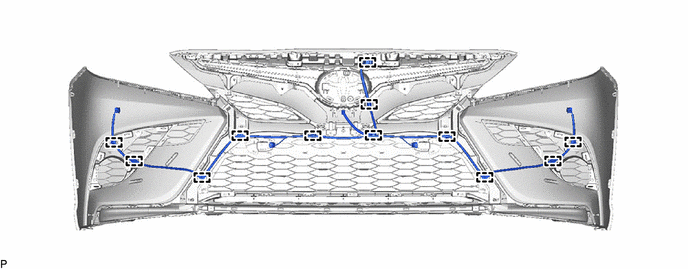

        GTY1015533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  6. REMOVE FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY (for Bar Type Radiator Grille)

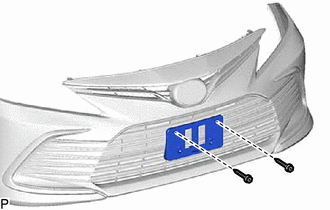

    1. Remove the 2 screws.
      GTY1015523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the front license plate bracket sub-assembly as shown in the illustration.

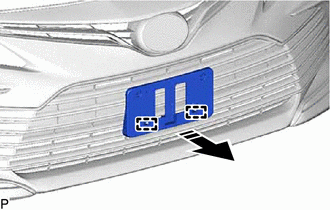

      GTY1015079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY (for Mesh Type Radiator Grille)

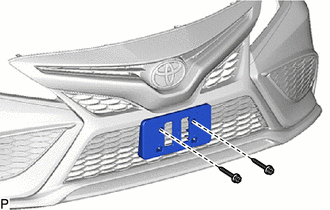

    1. Remove the 2 screws.
      GTY1015526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

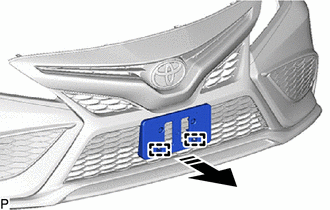

    2. Disengage the 2 guides to remove the front license plate bracket sub-assembly as shown in the illustration.
      GTY1015928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE FRONT BUMPER PAD LH (for Bar Type Radiator Grille)
    1. Remove the front bumper pad LH.

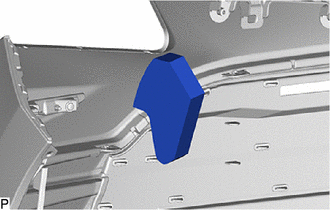

      GTY1015529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT BUMPER PAD RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE FRONT BUMPER PAD LH (for Mesh Type Radiator Grille)
    1. Disengage the 2 claws and guide to remove the front bumper pad LH.

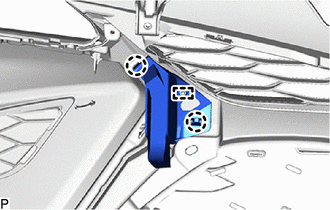

      GTY1015530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT BUMPER PAD RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    for Bar Type Radiator Grille:

    Refer to PROCEDURE - Step 2

  13. REMOVE FRONT BUMPER COVER INSERT (w/ Panoramic View Monitor System)
    1. for Mesh Type Radiator Grille:
      1. Disengage the 2 claws to remove the front bumper cover insert.

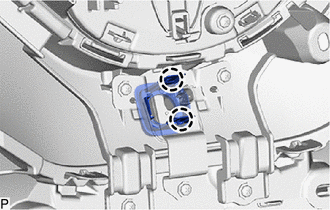

        GTY1015510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    for Mesh Type Radiator Grille:

    Refer to PROCEDURE - Step 4

  15. REMOVE FRONT SPOILER (for TRD)
    1. Remove the 2 screws and 2 clips.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY928273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
    2. Separate the double-sided tape.
      GTY926955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape

      HINT:

      Use the same procedure for the RH side and LH side.

    3. Disengage the 30 claws to remove the front spoiler.
      GTY847183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE HOOD TO FRONT END PANEL SEAL

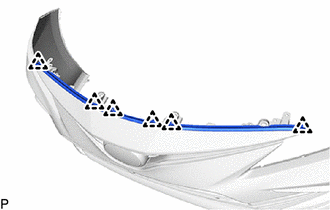

    1. Disengage the 6 clips.
      GTY1015558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

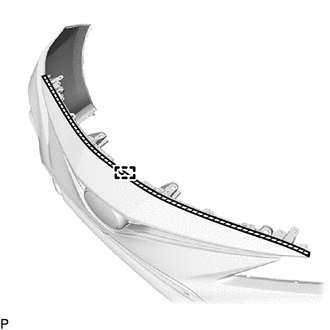

    2. Separate the double-sided tape and disengage the guide to remove the hood to front end panel seal.
      GTY1014998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
  17. REMOVE RADIATOR GRILLE EMBLEM ASSEMBLY
    1. Remove the screw.

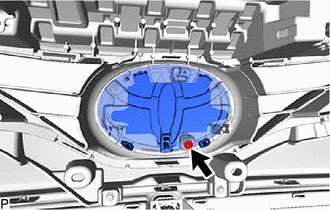

      GTY1015563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

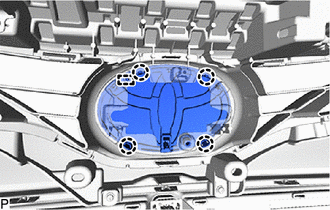

    2. Disengage the 4 claws and guide to remove the radiator grille emblem assembly.
      GTY1015564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT BUMPER UPPER RETAINER

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Remove the screw.

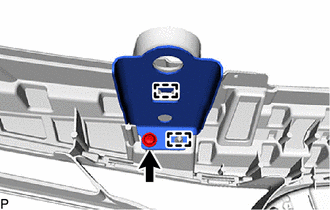

      GTY1015565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the front bumper upper retainer.
  19. REMOVE FRONT CENTER BUMPER BAR (for Bar Type Radiator Grille)
    1. Remove the 2 clips.

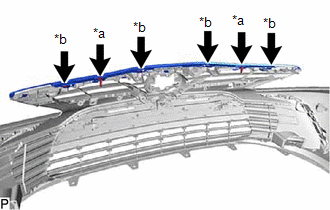

      GTY1018298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b Screw
    2. Remove the 4 screws and front center bumper bar.
  20. REMOVE RADIATOR GRILLE (for Bar Type Radiator Grille)
    1. Remove the 2 screws.

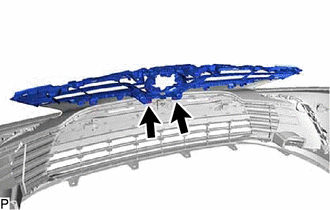

      GTY1018225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 10 claws and guide to remove the radiator grille.

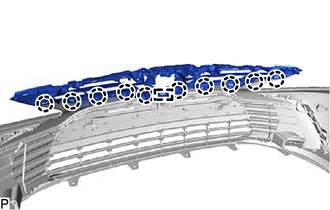

      GTY1018226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE RADIATOR GRILLE (for Mesh Type Radiator Grille)

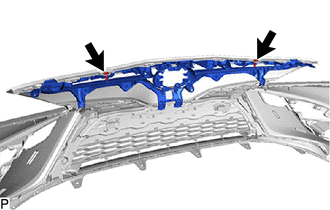

    1. Remove the 2 clips.
      GTY1015578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 10 screws.

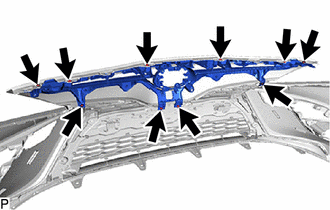

      GTY1015580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

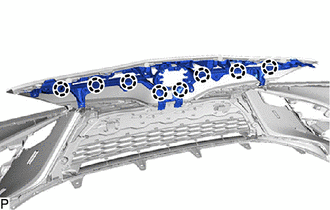

    3. Disengage the 8 claws to remove the radiator grille.
      GTY1018179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT BUMPER SIDE MOULDING LH (for Bar Type Radiator Grille)
    1. Remove the 5 screws.

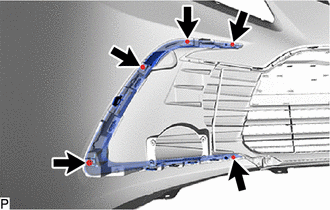

      GTY1015583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws and 2 guides to remove the front bumper side moulding LH.

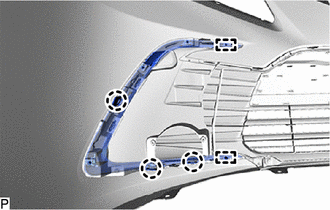

      GTY1015585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT BUMPER SIDE MOULDING RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  24. REMOVE FOG LIGHT COVER LH (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Remove the 4 clips.

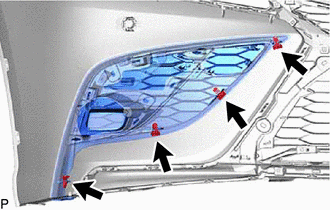

        GTY1018069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the clip.

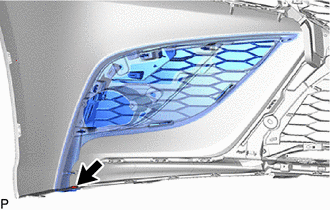

        GTY1015589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the 6 claws to remove the fog light cover LH.

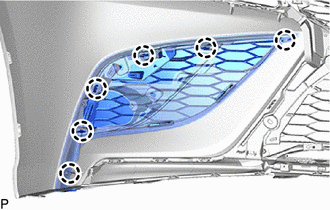

        GTY1015592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for TRD:
      1. Disengage the 6 claws to remove the fog light cover LH.
        GTY764209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FOG LIGHT COVER RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  26. REMOVE LOWER RADIATOR GRILLE MOULDING LH (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Remove the screw.

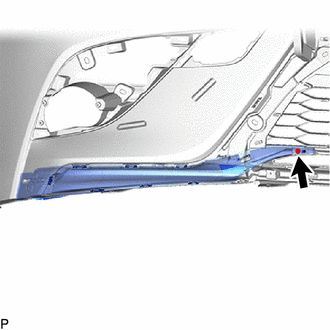

        GTY1015566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 8 claws and guide to remove the lower radiator grille moulding LH.

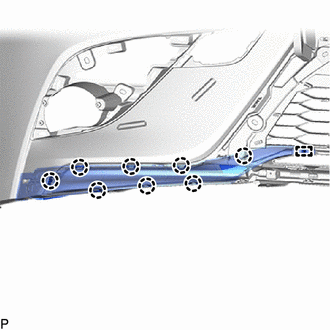

        GTY1015567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE LOWER RADIATOR GRILLE MOULDING RH (for Mesh Type Radiator Grille)

    except TRD:

    HINT:

    Use the same procedure as for the LH side.

  28. REMOVE LOWER CENTER RADIATOR GRILLE MOULDING (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Remove the screw.

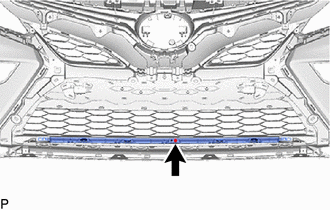

        GTY1015568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 4 claws and guide to remove the lower center radiator grille moulding.

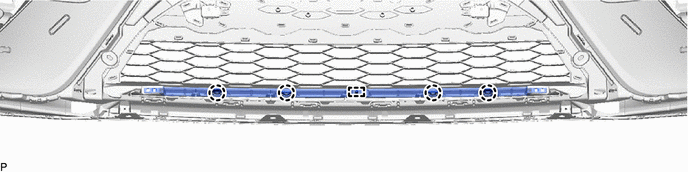

        GTY1015539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Bar Type Radiator Grille)

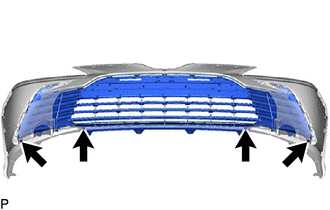

    1. Remove the 4 screws.
      GTY1015596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

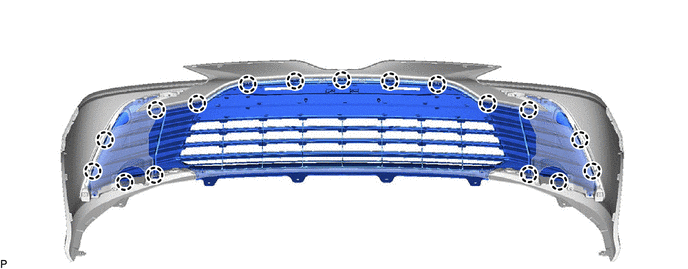

    2. Disengage the 17 claws to remove the lower radiator grille sub-assembly.
      GTY1016260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (for Mesh Type Radiator Grille)
    1. except TRD:
      1. Remove the 4 screws.

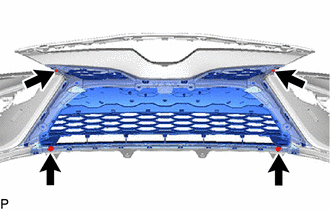

        GTY1015603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

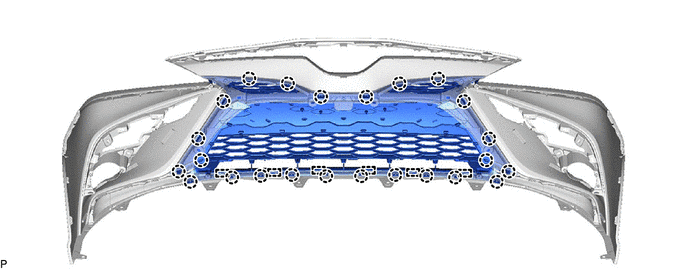

      2. Disengage the 24 claws and 6 guides to remove the lower radiator grille sub-assembly.
        GTY1015604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for TRD:
      1. Remove the 2 screws.
        GTY771303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 18 claws to remove the lower radiator grille sub-assembly.
        GTY753186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE FRONT BUMPER SIDE MOULDING LH (for Mesh Type Radiator Grille)

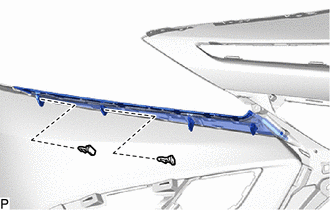

    1. Remove the 2 clips.
      GTY1015606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

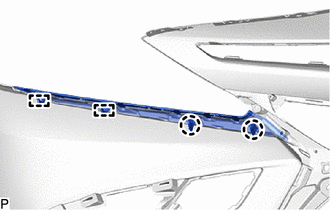

    2. Disengage the 2 claws and 2 guides to remove the front bumper side moulding LH.
      GTY1015624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE FRONT BUMPER SIDE MOULDING RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  33. REMOVE PIN HOLD CLIP
    1. Disengage the 4 claws to remove the 2 pin hold clips as shown in the illustration.
      GTY766757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  34. REMOVE FRONT FENDER LINER RETAINER
    1. Remove the 2 front fender liner retainers as shown in the illustration.
      GTY770154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  35. REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER
    1. Disengage the 2 guides to remove the No. 2 front bumper energy absorber as shown in the illustration.
      GTY747886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  36. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. Disengage the 4 guides to remove the front bumper energy absorber as shown in the illustration.
      GTY752426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  37. REMOVE FRONT BUMPER REINFORCEMENT
    1. Remove the headlight assembly LH.

      Refer to PROCEDURE - Step 2

    2. Remove the headlight assembly RH.

      HINT:

      Use the same procedure as for the LH side.

    3. Disengage the 5 clamps.
      GTY753181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 8 bolts and front bumper reinforcement.
      GTY753168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE FRONT BUMPER SIDE RETAINER LH
    1. Remove the bolt.
      GTY753182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips to remove the front bumper side retainer LH as shown in the illustration.
      GTY769369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  39. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.
