Removal [10/2020 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [10/2020 - ]

  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (for Bar Type Radiator Grille)

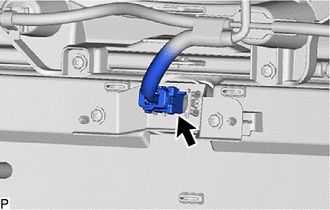

    1. Disconnect the connector.
      GTY991034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

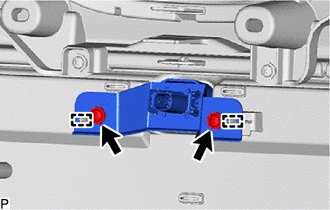

    2. Remove the 2 screws.
      GTY991033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the front television camera assembly.
  3. REMOVE FRONT BUMPER COVER INSERT (for Mesh Type Radiator Grille)

    Refer to PROCEDURE - Step 13

  4. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (for Mesh Type Radiator Grille)

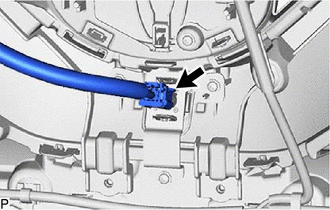

    1. Disconnect the connector.
      GTY991029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

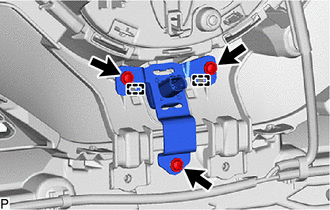

    2. Remove the 3 screws.
      GTY991066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the front television camera assembly.
