Home >> Toyota >> 2021 >> Camry LE, FWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Door / Hatch - Service Information (2 Of 2) (Except Hybrid) >> Rear Door >> Reassembly [03/2017 - 06/2017] >> Procedure

Reassembly [03/2017 - 06/2017]: Procedure

  1. REPAIR INSTRUCTION

    Refer to PROCEDURE - Step 2

  2. INSTALL REAR DOOR OUTSIDE STRIPE

    Refer to PROCEDURE - Step 2

  3. INSTALL REAR DOOR LOWER OUTSIDE STRIPE

    Refer to PROCEDURE - Step 3

  4. INSTALL REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. INSTALL REAR DOOR FRONT OUTSIDE SEAL

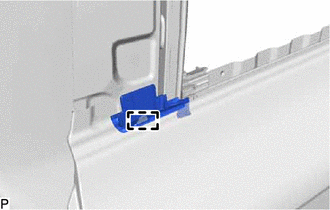

    1. Engage the guide to install the rear door front outside seal.
      GTY772670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR DOOR FRONT WINDOW FRAME MOULDING

    Refer to PROCEDURE - Step 2

  7. INSTALL DOOR WINDOW FRAME MOULDING CLIP

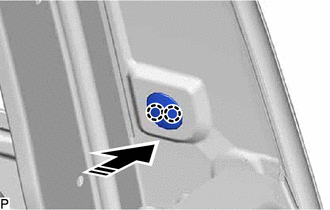

    1. Engage the 2 claws to install the door window frame moulding clip.
      GTY774560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  8. INSTALL REAR DOOR BELT MOULDING ASSEMBLY

    Refer to PROCEDURE - Step 1

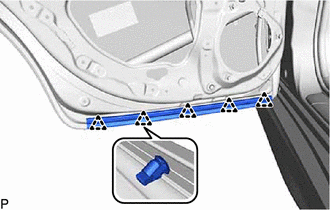

  9. INSTALL REAR DOOR NO. 2 WEATHERSTRIP
    1. Engage the 5 clips to install the rear door No. 2 weatherstrip.
      GTY759345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR DOOR PANEL CUSHION

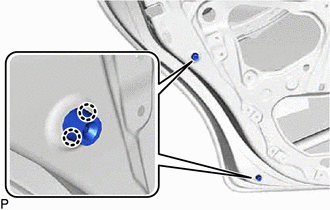

    1. Engage the 4 claws to install 2 new rear door panel cushions.
      GTY772673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

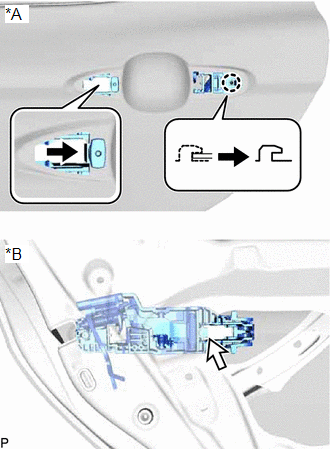

  11. INSTALL REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. Apply MP grease to the sliding parts of the rear door outside handle frame sub-assembly.
    2. Engage the claw as shown in the illustration.
      GTY747779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Outside
      *B Inside
    3. Using a T30 "TORX" socket wrench, install the rear door outside handle frame sub-assembly with the screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

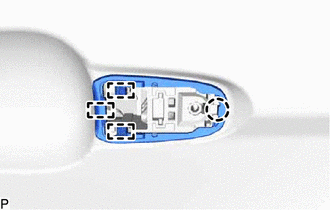

  12. INSTALL REAR DOOR REAR OUTSIDE HANDLE PAD
    1. Engage the 3 guides and claw to install the rear door rear outside handle pad.
      GTY759361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

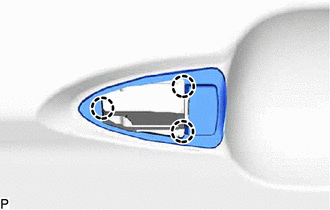

  13. INSTALL REAR DOOR FRONT OUTSIDE HANDLE PAD
    1. Engage the 3 claws to install the rear door front outside handle pad.
      GTY759362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR DOOR OUTSIDE HANDLE COVER

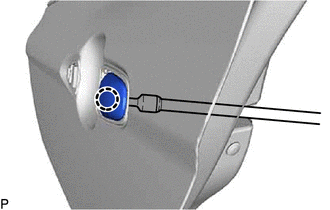

    1. Engage the claw.
      GTY759359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T30 "TORX" socket wrench, install the rear door outside handle cover with the screw.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

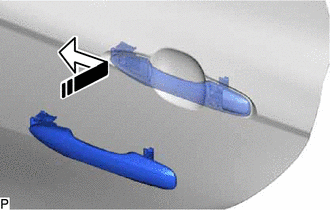

  15. INSTALL REAR DOOR OUTSIDE HANDLE ASSEMBLY
    1. Insert the front end of the rear door outside handle assembly into the rear door outside handle frame sub-assembly.
      GTY742544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Insert the rear end of the rear door outside handle assembly into the rear door outside handle frame sub-assembly, then slide the rear door outside handle assembly toward the front of the vehicle to install it.

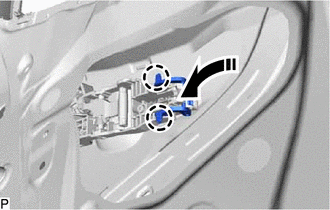

    3. Move the lever as shown in the illustration and engage the 2 claws to secure the rear door outside handle assembly.
      GTY765952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Engage in this Direction
  16. INSTALL REAR DOOR LOCK WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 4

  17. INSTALL REAR DOOR WINDOW REGULATOR ASSEMBLY
    1. Apply MP grease to the sliding parts of the rear door window regulator assembly.
    2. Temporarily install the temporary bolt to the rear door window regulator assembly.
    3. Temporarily install the rear door window regulator assembly with the 3 bolts.

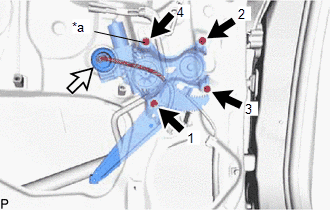

      Fig 1: Rear Door Window Regulator Assembly Bolts Tightening Sequence
      GTY760751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Temporary Bolt
    4. Tighten the temporary bolt and 3 bolts to install the rear door window regulator assembly.

      HINT:

      Tighten the bolts in the order shown in the illustration.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Connect the connector.
  18. INSTALL REAR DOOR GLASS CHANNEL FILLER
    1. Apply soapy water to a new rear door glass channel filler.
    2. Install the rear door glass channel filler to the rear door glass sub-assembly at position shown in the illustration.
      GTY756763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Front Side
      *B Rear Side
      *a Edge of curved surface
      STANDARD DIMENSION

      Area Measurement
      A 5.0 mm (0.197 in.)
      B 5.0 mm (0.197 in.)
  19. INSTALL REAR DOOR GLASS CHANNEL SUB-ASSEMBLY
    1. Apply soapy water to the channel filler side of the rear door glass channel sub-assembly.
    2. Using a plastic hammer, install the rear door glass channel sub-assembly to the position shown in the illustration.
      GTY751136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Front Side
      *B Rear Side
      *a Edge of curved surface
      STANDARD DIMENSION

      Area Measurement
      A 5.0 mm (0.197 in.)
      B 5.0 mm (0.197 in.)
      NOTE:

      To prevent damaging the rear door glass sub-assembly, be careful not to strike the rear door glass channel sub-assembly with too much force.

  20. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

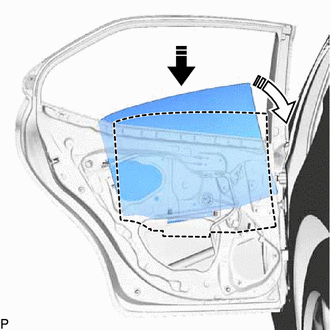

    1. Insert the rear door glass sub-assembly into the rear door panel as indicated by the arrows, in the order shown in the illustration.
      NOTE:

      Do not damage the rear door glass sub-assembly.

      GTY747099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

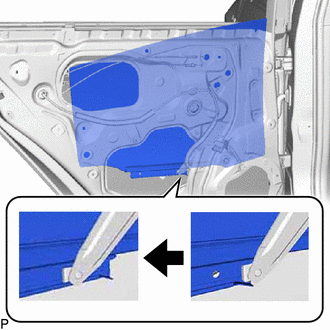

    2. Slide the rear door glass sub-assembly to install it as shown in the illustration.
      GTY759428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

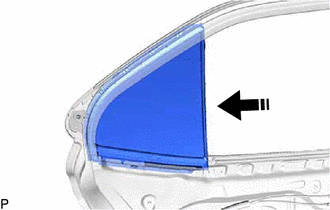

  21. INSTALL REAR DOOR QUARTER WINDOW GLASS
    1. Install the rear door quarter window glass to the rear door quarter window weatherstrip.
    2. Install the rear door quarter window glass with rear door quarter window weatherstrip as shown in the illustration.
      GTY769322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  22. INSTALL REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY

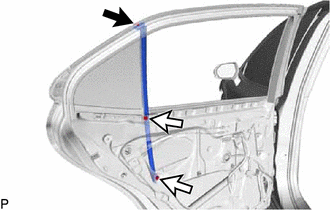

    1. Install the rear door rear lower window frame sub-assembly with the screw and 2 bolts.
      GTY745477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt

      Screw

      Torque: 3.1 N*m (32 kgf*cm, 27 in.*lbf)

      Bolt

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

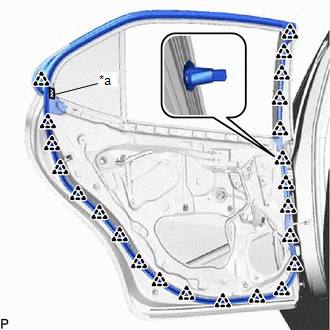

  23. INSTALL REAR DOOR WEATHERSTRIP
    1. Clean the rear door panel.
    2. Remove the release paper from a new rear door weatherstrip.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Engage the 23 clips and install the rear door weatherstrip.
      GTY741472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
  24. INSTALL REAR DOOR CHECK ASSEMBLY
    1. Clean the bolt hole in the vehicle body.
    2. Clean the threads of the bolt.
    3. Apply adhesive to the threads of the bolt.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

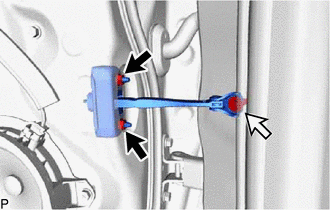

    4. Install the rear door check assembly with the 2 nuts and bolt.
      GTY757666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt

      Bolt

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

      Nut

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  25. INSTALL REAR DOOR GLASS RUN

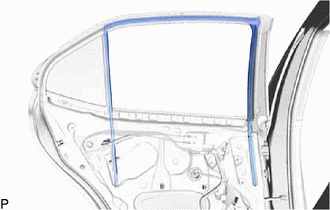

    1. Install the rear door glass run.
      GTY759433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL REAR DOOR PANEL PROTECTOR
    1. Install the rear door panel protector.
      GTY592769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

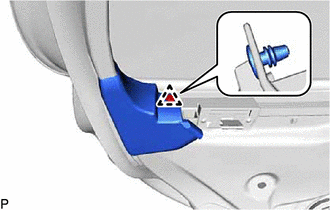

    2. Engage the clip.
      GTY743439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

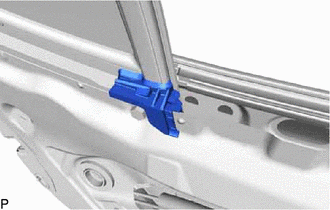

  27. INSTALL REAR DOOR NO. 1 VENT SEAL
    1. Install the rear door No. 1 vent seal.
      GTY759437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

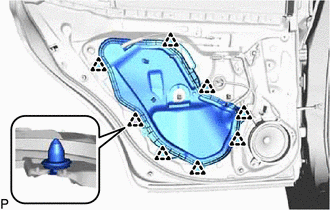

  28. INSTALL REAR DOOR SERVICE HOLE COVER
    1. Engage the 8 clips to install the rear door service hole cover.
      GTY759435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

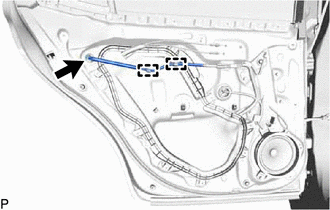

    2. Engage the 2 clamps.
      GTY759436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
  29. INSTALL REAR DOOR FRAME GARNISH

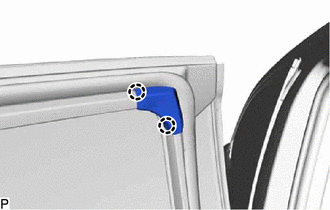

    1. Engage the 2 claws to install the rear door frame garnish.
      GTY772694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 1

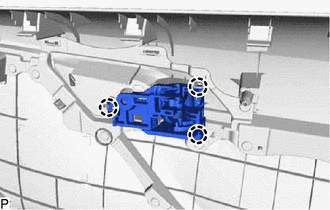

  31. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
    1. Engage the 3 claws to install the rear door inside handle sub-assembly.
      GTY759447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL REAR DOOR NO. 2 SERVICE HOLE COVER
    1. Install the rear door No. 2 service hole cover to the rear door inner glass weatherstrip.
      GTY761310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  33. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP

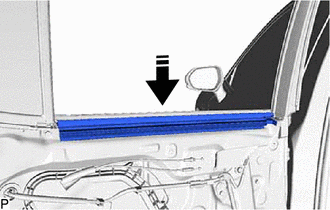

    1. Install the rear door inner glass weatherstrip with rear door No. 2 service hole cover as shown in the illustration.
      GTY750027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

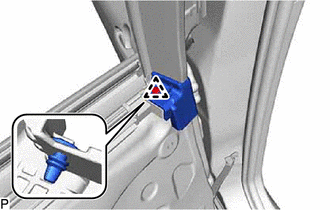

    2. Engage the clip.
      GTY743440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

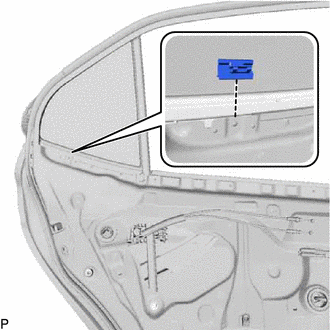

    1. Install the No. 1 door scuff plate clamp as shown in the illustration.
      GTY759434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

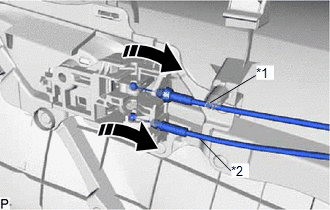

    2. Connect the rear door lock remote control cable assembly and rear door inside locking cable assembly to the rear door inside handle sub-assembly as shown in the illustration.
      GTY754579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Inside Locking Cable Assembly
      *2 Rear Door Lock Remote Control Cable Assembly
      Install in this Direction

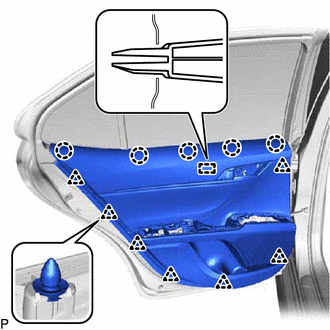

    3. Engage the 5 claws and guide.
      GTY1006852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

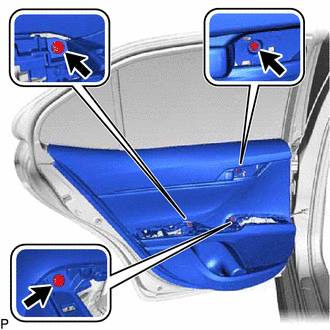

    4. Engage the 7 clips to install the rear door trim board sub-assembly.
    5. Install the 3 screws.
      GTY772704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL REAR ARMREST ASSEMBLY

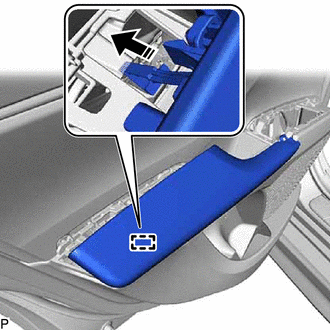

    1. Engage the guide as shown in the illustration.
      GTY742611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

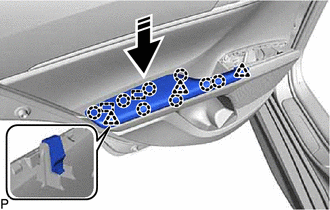

    2. Engage the 3 clips, 8 claws and 2 guides to install the rear armrest assembly as shown in the illustration.
      GTY766330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  36. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
    1. Connect the connector.

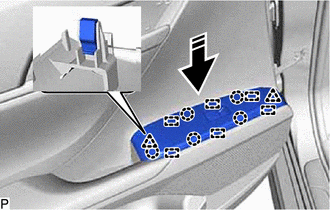

    2. Engage the 2 clips 5 claws and 6 guides to install the rear power window regulator switch assembly with rear door upper armrest base panel as shown in the illustration.
      GTY762160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

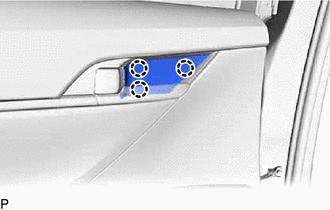

  37. INSTALL REAR DOOR ARMREST COVER SUB-ASSEMBLY
    1. Engage the 3 claws to install the rear door armrest cover sub-assembly.
      GTY759464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  39. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Refer to INITIALIZATION [03/2017 - ]

  40. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [03/2017 - ]
