Removal [03/2017 - 09/2019]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [03/2017 - 09/2019]

  2. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

    Refer to PROCEDURE - Step 2 [03/2017 - 08/2018] , or refer to PROCEDURE - Step 2 [08/2018 - 09/2019]

  3. REMOVE FRONT SEAT FRONT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 3 [03/2017 - 08/2018] , or refer to PROCEDURE - Step 3 [08/2018 - 09/2019]

  4. REMOVE FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 4 [03/2017 - 08/2018] , or refer to PROCEDURE - Step 4 [08/2018 - 09/2019]

  5. REMOVE SLIDE & VERTICAL POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 6 [03/2017 - 08/2018] , or refer to PROCEDURE - Step 6 [08/2018 - 09/2019]

  6. REMOVE RECLINING POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 7 [03/2017 - 08/2018] , or refer to PROCEDURE - Step 7 [08/2018 - 09/2019]

  7. REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET LH

    Refer to PROCEDURE - Step 8 [03/2017 - 08/2018] , or refer to PROCEDURE - Step 8 [08/2018 - 09/2019]

  8. REMOVE FRONT POWER SEAT SWITCH LH

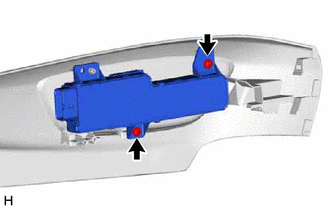

    1. Remove the 2 screws and front power seat switch LH from the front seat cushion shield LH.
      GTY598277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
