Reassembly [08/2018 - 09/2019]: Procedure

  1. INSTALL POWER SEAT TILT MOTOR ASSEMBLY LH
    1. Install the power seat tilt motor assembly LH with the 3 bolts.

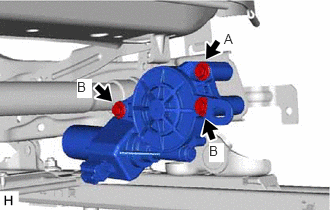

      GTY726556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      NOTE:

      Bolt (A) is shorter than bolt (B). Make sure to install them to the correct positions.

  2. INSTALL POWER SEAT LIFTER MOTOR ASSEMBLY LH
    1. Install the power seat lifter motor assembly LH.
      1. Install the front seat vertical housing sub-assembly LH.

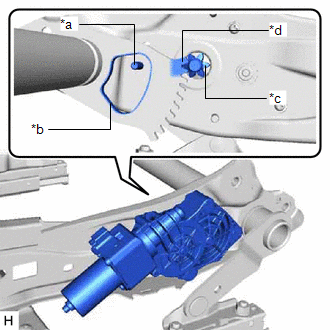

        GTY698289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Stud Bolt of the Front Seat Vertical Housing Sub-assembly LH
        *b Hole of the Front Seat Adjuster Assembly
        *c Front Seat Vertical Housing Sub-assembly LH
        *d Front Seat Adjuster Assembly
        NOTE:
        • Make sure to insert the stud bolt of the front seat vertical housing sub-assembly LH into the hole of the front seat adjuster assembly LH as shown in the illustration.
        • Make sure to position the front seat adjuster assembly LH so that when the front seat vertical housing sub-assembly LH is installed, their gears will be positioned as shown in the illustration.
      2. Install the vertical adjuster spacer.
        GTY699529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Install the front seat adjuster plate LH with the 3 nuts.

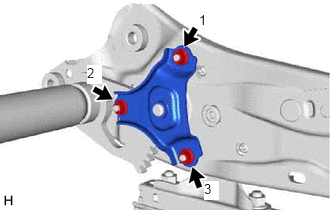

        GTY720589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

        NOTE:

        Tighten the nuts in the order shown in the illustration.

  3. INSTALL FRONT SEAT LOWER CUSHION SHIELD
    1. Engage the guide as shown in the illustration.

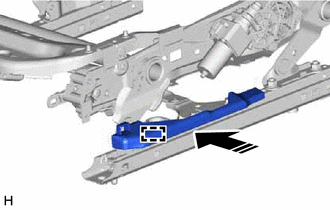

      GTY556630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the claw to install the front seat lower cushion shield.
      GTY542117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER LH
    1. Engage the guide as shown in the illustration.

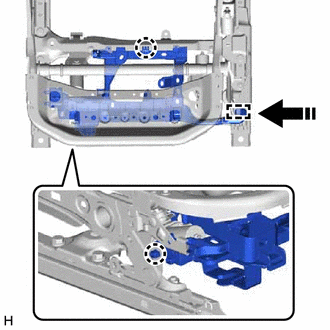

      GTY606923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 claws to install the front seat cushion wire harness holder LH.
    3. Install the 2 screws.
      GTY542113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY LH
    1. Engage the 6 hooks to install the front seat cushion spring sub-assembly LH to the front seat adjuster assembly LH.
      GTY542111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT SEAT NO. 3 WIRE LH
    1. Engage the claw to install the front seat No. 3 wire LH.
      GTY772756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL SEAT SLIDE POSITION SENSOR PROTECTOR
    1. Insert the seat slide position sensor protector as shown in the illustration.

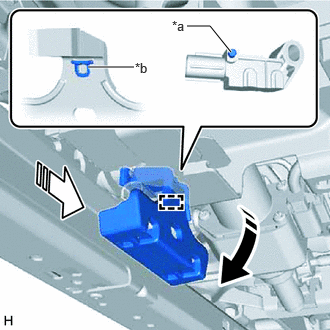

      GTY761338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Engagement Point
      Engage in this Direction
      Insert in this Direction
    2. Engage the seat slide position sensor protector to the pin of the seat position airbag sensor as shown in the illustration.
    3. Engage the clamp and connect the connector.
      GTY772623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT SEAT WIRE LH
    1. Connect each connector and engage each clamp to install the front seat wire LH.
  9. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH
    1. Engage the claw and guide to install the front seat lower cushion shield LH.
      GTY538906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Engage the hook.
  10. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH
    1. Engage the claw and guide to install the front seat lower cushion shield RH.
      GTY604168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Guide
    2. Engage the hook.
  11. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH
    1. GTY542091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 4 claws to install the LH seat reclining adjuster inside cover LH.

    2. Engage the claw.
      GTY542090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH
    1. GTY598289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 4 claws to install the LH seat reclining adjuster inside cover RH.

  13. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER
    1. Engage the 14 claws to install the separate type front seat cushion cover to the separate type front seat cushion pad.
      GTY759749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
    1. Engage the 10 hooks to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.
      GTY542089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT SEAT NO. 2 WIRE LH
    1. Connect each connector and engage each clamp to install the front seat No. 2 wire LH.
  16. INSTALL FRONT NO. 2 SEATBACK HOOK
    1. Install the 2 front No. 2 seatback hooks to the front seatback frame sub-assembly LH.
      GTY574545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT SEATBACK EDGE PROTECTOR
    1. Install the 2 front seatback edge protectors to the lumbar support adjuster assembly LH.
  18. INSTALL SEATBACK FELT
    1. Install the seatback felt to the lumbar support adjuster assembly LH.
  19. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  20. INSTALL FRONT SEAT AIRBAG ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  21. INSTALL SEPARATE TYPE FRONT SEATBACK COVER
    1. GTY759747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 9 claws to install the separate type front seatback cover to the separate type front seatback pad.

  22. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Install the separate type front seatback cover with pad.
  23. INSTALL FRONT SEAT HEADREST SUPPORT
    1. Engage the 4 claws to install the 2 front seat headrest supports.
      GTY759759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the 2 fasteners.
      GTY574703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 3 hooks.
      GTY542085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
    1. Engage the 4 guides.
      GTY772761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    3. Engage the clamp.
      GTY759751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connector.
    5. Engage the claw and 4 clamps to install the front seat airbag assembly LH wire harness.
      GTY759770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Engage the claw first.

    6. Engage the 2 hooks.
      GTY759754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Pass the separate type front seatback cover through the grooves of the LH seat reclining adjuster inside cover LH and LH seat reclining adjuster inside cover RH.
      GTY699522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL LOWER NO. 3 SEAT TRACK SPACER
    GTY759727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 3 claws to install the lower No. 3 seat track spacer to the front seat cushion shield LH.
  26. INSTALL LOWER NO. 4 SEAT TRACK SPACER
    GTY759729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 3 claws to install the lower No. 4 seat track spacer to the front seat inner cushion shield LH.
  27. INSTALL FRONT POWER SEAT SWITCH LH

    Refer to PROCEDURE - Step 1

  28. INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET LH
    1. Install the seat adjuster shield clamp bracket LH to the front seat cushion shield LH with the 2 screws.
      GTY542063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL RECLINING POWER SEAT SWITCH KNOB
    1. GTY598296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 4 claws to install the reclining power seat switch knob.

  30. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. GTY542122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 4 claws to install the slide and vertical power seat switch knob.

  31. INSTALL FRONT SEAT INNER CUSHION SHIELD LH
    1. Engage the 2 claws and 2 guides as shown in the illustration.

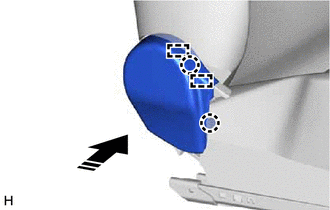

      GTY609496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 claws to install the front seat inner cushion shield LH.
      GTY542381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL FRONT SEAT CUSHION SHIELD LH
    1. Connect the front power seat switch LH connector.
      GTY598283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guide (A) as shown in the illustration.

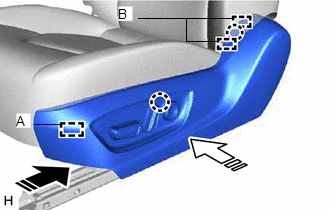

      GTY763934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    3. Engage the 2 claws and 2 guides (B) as shown in the illustration.
    4. Engage the 2 claws to install the front seat cushion shield LH.
      GTY542058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL FRONT SEAT FRONT CUSHION SHIELD LH
    1. Engage the 3 guides.
      GTY542052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws as shown in the illustration.

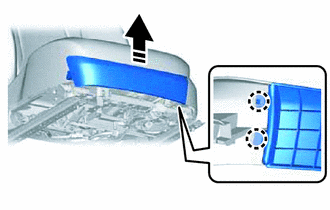

      GTY771920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the guide as shown in the illustration.

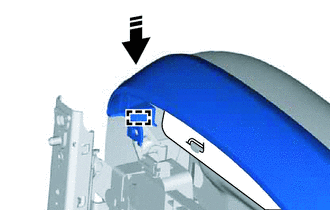

      GTY763645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the front seat front cushion shield LH with the clip.
      GTY542050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. CONNECT SEPARATE TYPE FRONT SEATBACK COVER
    1. GTY542049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the rubber band of the separate type front seatback cover.

  35. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 1
