Removal [02/2017 - 10/2017]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  2. REMOVE HEADLIGHT ASSEMBLY LH

    Refer to REMOVAL [02/2017 - 10/2017]

  3. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 5

  5. REMOVE FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  6. REMOVE NO. 1 RADIATOR GRILLE RETAINER

    Refer to PROCEDURE - Step 16

  7. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL

    Refer to PROCEDURE - Step 17

  8. REMOVE HOOD LOCK NUT CAP

    Refer to PROCEDURE - Step 8

  9. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  11. REMOVE NO. 2 RADIATOR AIR GUIDE

    Refer to PROCEDURE - Step 11

  12. REMOVE FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 18

  13. REMOVE FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 21

  14. REMOVE NO. 1 RADIATOR AIR GUIDE LH

    Refer to PROCEDURE - Step 27

  15. REMOVE NO. 1 RADIATOR AIR GUIDE RH

    Refer to PROCEDURE - Step 28

  16. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

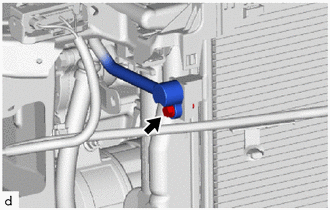

    1. Remove the bolt to disconnect the discharge hose sub-assembly from the cooler condenser assembly.
      GTY773210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  17. DISCONNECT COOLER REFRIGERANT LIQUID PIPE A

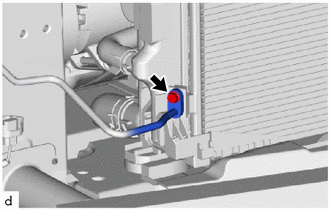

    1. Remove the bolt to disconnect the cooler refrigerant liquid pipe A from the cooler condenser assembly.
      GTY773211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the cooler refrigerant liquid pipe A.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  18. REMOVE COOLER CONDENSER ASSEMBLY

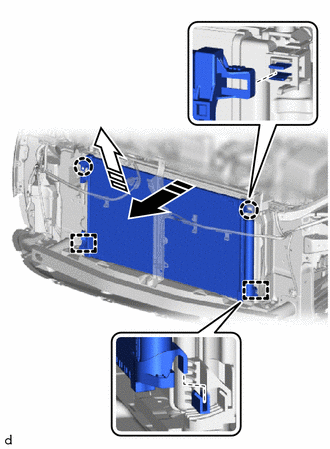

    1. Disengage the claws and guides to remove the cooler condenser assembly as shown in the illustration.
      GTY761339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      Do not damage the cooler condenser assembly or radiator assembly when removing the cooler condenser assembly.
