Installation [02/2017 - 05/2018]: Procedure

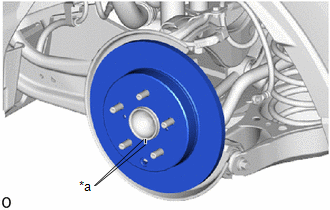

- INSTALL REAR DISC
- INSTALL REAR DISC BRAKE CYLINDER MOUNTING

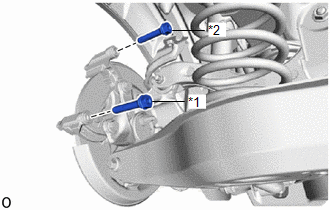

- Install the rear disc brake cylinder mounting to the rear axle carrier sub-assembly with the 2 bolts.
Torque: 107 N*m (1091 kgf*cm, 79 ft.*lbf)
- Install the rear disc brake cylinder mounting to the rear axle carrier sub-assembly with the 2 bolts.
- INSTALL REAR DISC BRAKE BUSHING DUST BOOT
- Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new rear disc brake bushing dust boots.
HINT:
Apply more than 0.3 g (0.01 oz.) of lithium soap base glycol grease to each rear disc brake bushing dust boot.
Lithium Soap Base Glycol Grease - Install the 2 rear disc brake bushing dust boots to the rear disc brake cylinder mounting.
- Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new rear disc brake bushing dust boots.
- INSTALL REAR DISC BRAKE CYLINDER SLIDE PIN
Lithium Soap Base Glycol Grease Apply a light layer of lithium soap base glycol grease to the contact surface of the rear No. 2 disc brake cylinder slide pin.
- Install a new rear disc brake cylinder slide bushing to the rear No. 2 disc brake cylinder slide pin.
Lithium Soap Base Glycol Grease Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin.
- Install the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin to the rear disc brake cylinder mounting.
*1 Rear No. 1 Disc Brake Cylinder Slide Pin *2 Rear No. 2 Disc Brake Cylinder Slide Pin - Push the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin into each rear disc brake bushing dust boot to engage the pins to the boots.
- INSTALL REAR DISC BRAKE PAD SUPPORT PLATE
- Install the 4 rear disc brake pad support plates to the rear disc brake cylinder mounting.NOTE:
Be sure to install each rear disc brake pad support plate in the correct position and direction.
- Install the 4 rear disc brake pad support plates to the rear disc brake cylinder mounting.
- INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM
Refer to PROCEDURE - Step 1
- INSTALL REAR DISC BRAKE PAD
- Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.NOTE:
Install the rear disc brake pad so that the rear disc brake pad wear indicator plate is mounted on the lower side of the vehicle.
HINT:
If the rear disc brake pad has an identification mark, be sure to confirm the installation location.
*a Inner Side (Brown) *b Outer Side (Green)
- Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.
- INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY

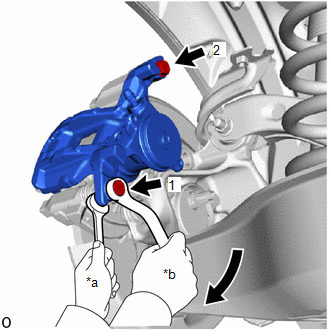

- Hold the 2 rear disc brake cylinder slide pins, and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with the 2 new bolts in the order shown in the illustration.
Torque: 34.3 N*m (350 kgf*cm, 25 ft.*lbf)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Hold *b Turn
- Hold the 2 rear disc brake cylinder slide pins, and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with the 2 new bolts in the order shown in the illustration.
- INSTALL PARKING BRAKE ACTUATOR ASSEMBLY
- Apply a light coat of lithium soap base glycol grease to a new O-ring.
- Install the O-ring to the rear disc brake cylinder assembly.NOTE:
Make sure to replace the O-ring with a new one when installing the parking brake actuator assembly.
- Using a 5 mm hexagon socket wrench, install the parking brake actuator assembly to the rear disc brake cylinder assembly with the 2 bolts.
Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)
- CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
- Connect the No. 2 parking brake wire assembly connector to the parking brake actuator assembly.
- CONNECT REAR FLEXIBLE HOSE
- Connect the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.
Torque: 30.4 N*m (310 kgf*cm, 22 ft.*lbf)
NOTE:Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.
- Connect the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.
- BLEED BRAKE LINE
Refer to BLEEDING [02/2017 - 05/2018]
- BLEED REAR DISC BRAKE CYLINDER ASSEMBLY WARNING:
If the rear disc brake cylinder assembly has been disassembled, perform air bleeding for the rear disc brake cylinder.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
- While performing air bleeding of the rear disc brake assembly, the bolt can be reused during the bleeding procedure. After air bleeding is complete, replace the bolt with a new one.
- Perform the procedure to enter rear disc brake pad replacement mode 5 times.
Refer to TEST MODE PROCEDURE [02/2017 - ]

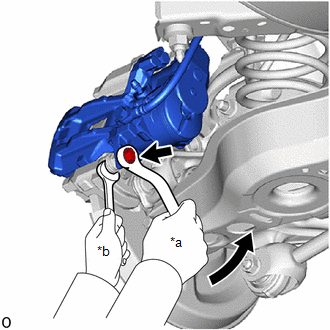

*a Turn *b Hold - Remove the bolt and separate the rear disc brake cylinder assembly.*1NOTE:
Keep the rear no. 2 disc brake cylinder slide pin free of foreign matter.
- Hold the rear disc brake cylinder assembly horizontally, then tilt it 45° toward the bleeder plug side as shown in the illustration.*2
- Temporarily install the rear disc brake cylinder assembly with the bolt.*3
*a Turn *b Hold - Depress the brake pedal several times, and then loosen the bleeder plug with the pedal depressed.*4
- When fluid stops coming out, tighten the bleeder plug and release the brake pedal.*5
- Repeat steps *1 and *5 until all the air in the brake fluid is completely bled out and new brake fluid comes out.
- Tighten the bleeder plug completely.
Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
- Repeat the above 3 steps to replace the brake fluid of the brake tubes for rear wheel.
- Install the rear disc brake cylinder assembly with a new bolt.
Torque: 34.3 N*m (350 kgf*cm, 25 ft.*lbf)
- INSTALL REAR WHEEL
Refer to INSTALLATION [02/2017 - 05/2018]
- NORMAL CONDITION RECOVERY
Refer to TEST MODE PROCEDURE [02/2017 - ]
