Installation [02/2017 - 05/2018]: Procedure

1. Check the rear disc brake pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Inner Side (Brown)
   *b	Outer Side (Green)

   HINT:

   If the rear disc brake pad has an identification mark, be sure to confirm the installation location.

2. Install 2 new rear disc brake pad wear indicator plates to each rear disc brake pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear No. 1 Disc Brake Anti-squeal Shim
   *2	Rear No. 2 Disc Brake Anti-squeal Shim
   *3	Rear Disc Brake Pad Wear Indicator Plate
   *a	Claw

   NOTE:

   Install the rear disc brake pad wear indicator plate in the correct positions and direction.

3. Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim to each rear disc brake pad.
   NOTE:

   • Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim in the correct positions and direction as shown in the illustration.
   • Install the No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti squeal shim with the claws in the locations shown in the illustration to the outer side of the vehicle.
   • Install so that the claws are towards the outer side of the vehicle.

1. Push back the rear disc brake piston.
   NOTE:

   Do not forcibly install the rear disc brake piston into rear disc brake cylinder assembly.

2. Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.
   NOTE:

   Make sure that disc brake grease is applied onto the lining surface of the rear disc brake pad.

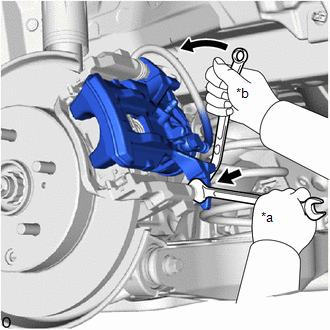

3. Hold the rear disc brake cylinder slide pin and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with the new bolt.

   Torque: 34.3 N*m (350 kgf*cm, 25 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   *b	Turn

4. Depress the brake pedal several times.

See step  2

Refer to INSTALLATION [02/2017 - 05/2018]
