Disassembly [02/2017 - ]: Procedure

  1. REMOVE NO. 2 REAR SPOILER
    1. Remove the 2 screws.

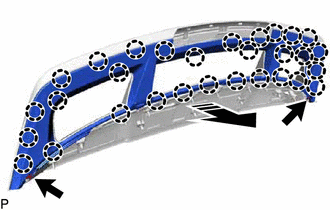

      GTY752739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claws to remove the No. 2 rear spoiler as shown in the illustration.
  2. REMOVE NO. 2 REAR SPOILER PROTECTOR

    HINT:

    Using the same procedure, remove every No. 2 rear spoiler protector.

    1. Remove the No. 2 rear spoiler protector.

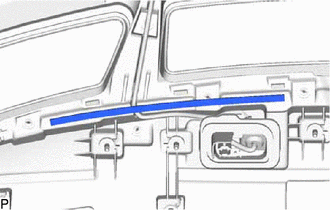

      GTY755549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY
    1. Disengage the claws and guide to remove the rear side spoiler sub-assembly as shown in the illustration.

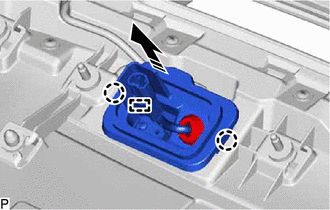

      GTY772199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the screw.
      GTY755591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guide to remove the No. 5 rear spoiler retainer.
  5. REMOVE CENTER STOP LIGHT CORD ASSEMBLY
    1. Disengage the guides to remove the center stop light cord assembly.
      GTY771843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 REAR SPOILER PROTECTOR

    HINT:

    Using the same procedure, remove every No. 1 rear spoiler protector.

    1. Remove the No. 1 rear spoiler protector.
      GTY755594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
