Removal [02/2017 - ]: Procedure

  1. REMOVE REAR SPOILER ASSEMBLY

    Refer to REMOVAL [02/2017 - ]

  2. REMOVE NO. 2 REAR SPOILER COVER

    Refer to PROCEDURE - Step 1

  3. REMOVE CENTER STOP LIGHT ASSEMBLY
    1. Remove the 2 screws.

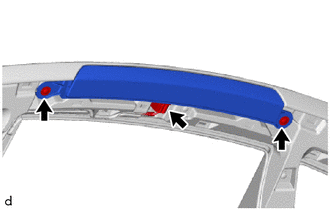

      GTY774398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the center stop light assembly.
