- REMOVE BACK-UP LIGHT ASSEMBLY (for LED Type Back-up Light)
Refer to PROCEDURE - Step 1

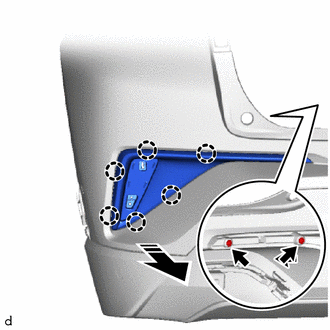

- REMOVE FOG LIGHT BRACKET (for Bulb Type Back-up Light)
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the guides to remove the fog light bracket.
- REMOVE NO. 6 FLOOR WIRE (w/ Wire Harness)
- Disengage the clamps to remove the No. 6 floor wire.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER UPPER COVER LH
- Disengage the hook to remove the rear bumper upper cover LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER UPPER COVER RH
HINT:
Use the same procedure as for the LH side.

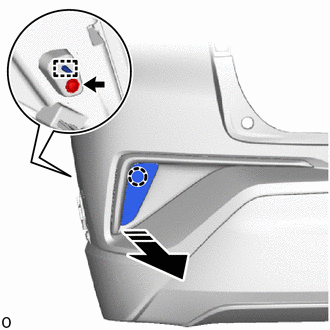

- REMOVE REFLEX REFLECTOR ASSEMBLY LH
- Remove the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Remove in this Direction |
- Disengage the claw and guide to remove the reflex reflector assembly LH as shown in the illustration.
- REMOVE REFLEX REFLECTOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER PLATE LH
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- Disengage the claws to remove the rear bumper plate LH as shown in the illustration.
- REMOVE REAR BUMPER PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 REAR BUMPER PLATE
- Disengage the claws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the hook to remove the No. 1 rear bumper plate.
- REMOVE REAR BUMPER PAD
- for TMC Made:
- Remove the rear bumper pad.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for TMMT Made:
- Remove the rear bumper pad.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

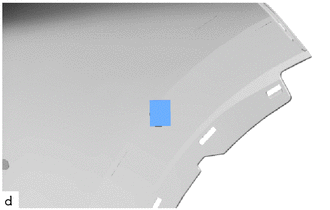

- REMOVE REAR BUMPER PAD LH
- Remove the rear bumper pad LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER PAD RH
HINT:
Use the same procedure as for the LH side.

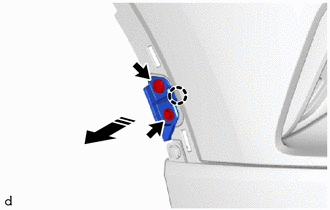

- REMOVE REAR BUMPER SIDE STAY LH
- Remove the screw and clip.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- Disengage the claw to remove the rear bumper side stay LH as shown in the illustration.
- REMOVE REAR BUMPER SIDE STAY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER CENTER GUARD
- Remove the 2 clips and 6 outside moulding retainers.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *a |
Clip |
*b |
Outside Moulding Retainer |
- Disengage the claws and guides to remove the rear bumper center guard.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER SIDE RETAINER LH
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the claw and guide to remove the rear bumper side retainer LH as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction (1) |
 |
Remove in this Direction (2) |
- REMOVE REAR BUMPER SIDE RETAINER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT COVER LH
- REMOVE REAR COMBINATION LIGHT COVER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT LH
- REMOVE REAR COMBINATION LIGHT RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER UPPER RETAINER LH
- Remove the screw and rear bumper upper retainer LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER UPPER RETAINER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY (for Type A)
- Remove the 6 bolts.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the guides to remove the rear bumper reinforcement sub-assembly.
- REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH (for Type A)
- Remove the 4 bolts and rear bumper arm sub-assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH (for Type A)
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY (for Type B)
- Remove the 8 bolts and rear bumper reinforcement sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
