Removal [09/2019 - 12/2021]: Procedure

  1. REMOVE BACK-UP LIGHT ASSEMBLY
    1. Disengage the clamp and disconnect the connector.

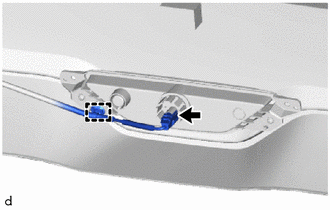

      GTY855018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.

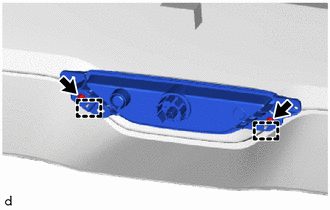

      GTY855019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guides to remove the back-up light assembly.
