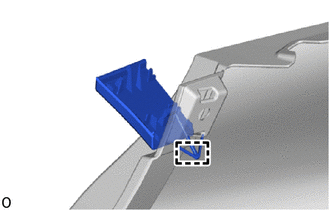

- REMOVE REAR BUMPER UPPER COVER LH
- Disengage the hook to remove the rear bumper upper cover LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER UPPER COVER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE FOG LIGHT BRACKET
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the guides to remove the fog light bracket.
- REMOVE REFLEX REFLECTOR ASSEMBLY LH
- Remove the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the claw and guide to remove the reflex reflector assembly LH.
- REMOVE REFLEX REFLECTOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER PLATE LH
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the claws to remove the rear bumper plate LH.
- REMOVE REAR BUMPER PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 REAR BUMPER PLATE
- Disengage the claws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the hook to remove the No. 1 rear bumper plate.

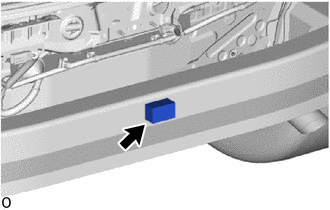

- REMOVE REAR BUMPER PAD
- Remove the rear bumper pad.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

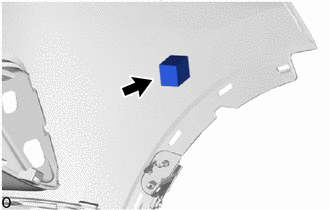

- REMOVE REAR BUMPER PAD LH
- Remove the rear bumper pad LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER PAD RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER SIDE STAY LH
- Remove the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the clip.
- Disengage the claw to remove the rear bumper side stay LH.
- REMOVE REAR BUMPER SIDE STAY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER CENTER GUARD
- Remove the 2 clips.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 6 outside moulding retainers.
- Disengage the claws and guides to remove the rear bumper center guard.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER SIDE RETAINER LH
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

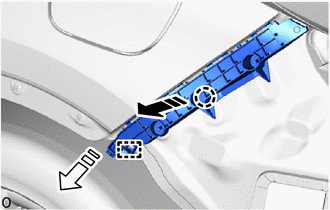

- Disengage the claw and guide to remove the rear bumper side retainer LH as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Remove in this Direction (1) |
 |
Remove in this Direction (2) |
- REMOVE REAR BUMPER SIDE RETAINER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT COVER LH
Refer to PROCEDURE - Step 1
- REMOVE REAR COMBINATION LIGHT COVER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT LH
Refer to PROCEDURE - Step 2
- REMOVE REAR COMBINATION LIGHT RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER UPPER RETAINER LH
- Disengage the guides to remove the rear bumper upper retainer LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER UPPER RETAINER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
- Remove the 6 bolts.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the guides to remove the rear bumper reinforcement sub-assembly.
- REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH
- Remove the 4 bolts and rear bumper arm sub-assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
