Removal [02/2017 - 10/2017]: Procedure

  1. REMOVE REAR COMBINATION LIGHT COVER

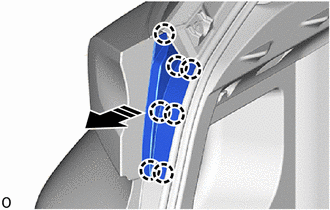

    1. Disengage the claws to remove the rear combination light cover as shown in the illustration.
      GTY764267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE REAR COMBINATION LIGHT ASSEMBLY

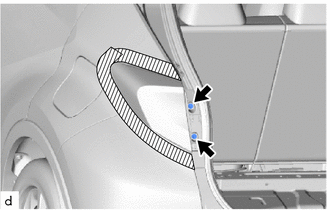

    1. Apply protective tape around the rear combination light assembly as shown in the illustration.
      GTY744104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 2 screws.

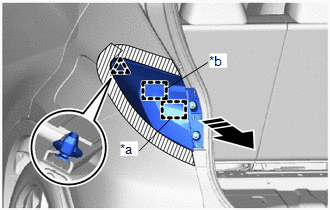

    3. Pull the rear combination light assembly toward the rear of the vehicle as shown in the illustration to disengage the clip, guide and pin to separate the rear combination light assembly.
      NOTE:

      To prevent the rear combination light assembly from falling when disengaging the pins and guides, lightly hold the rear combination light assembly.

      GTY745492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
      *b Pin
      Remove in this Direction

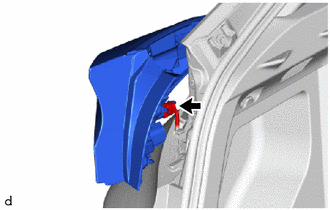

    4. Disconnect the connector to remove the rear combination light assembly.
      GTY767189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
