Disassembly [09/2019 - 12/2021]: Procedure

  1. REMOVE RADIATOR GRILLE

    See step  [09/2019 - 08/2020] See step  [08/2020 - 12/2021]

  2. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)
  3. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE NO. 5 ENGINE ROOM WIRE (w/ Wire Harness)
    1. Disengage the clamps to remove the No. 5 engine room wire.
      GTY857083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT SPOILER COVER LH
    1. Remove the screw and 2 outside moulding retainers.
      GTY847768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
      GTY847769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guides to remove the front spoiler cover LH.
    4. Remove the grommet.
      GTY847770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT SPOILER COVER RH

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE FOG LIGHT COVER LH (w/ Fog Light)
    1. Remove the 3 screws and fog light cover LH.
      GTY887594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FOG LIGHT COVER RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE FRONT BUMPER HOLE COVER LH
    1. Disengage the claws and guide to remove the front bumper hole cover LH.
      GTY847780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT BUMPER HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET LH
    1. Remove the screw and clip.
      GTY847781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claws to remove the front bumper side mounting bracket LH.
      GTY847783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the claws to remove the front fender liner retainer.
      GTY763713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE FRONT BUMPER HOLE COVER
    1. Disengage the claws and hook to remove the front bumper hole cover.
      GTY847784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. for TMC Made:
      1. Remove the 2 screws and front bumper extension mounting bracket.
        GTY928302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for TMMT Made:
      1. Remove the 2 screws.
        GTY847786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the claws to remove the front bumper extension mounting bracket as shown in the illustration.

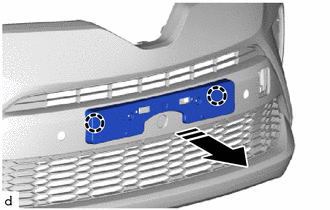

        GTY890108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
  15. REMOVE FRONT BUMPER LOWER COVER
    1. Remove the 2 screws.
      GTY847789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips and 6 outside moulding retainers.
    3. Disengage the claws and guides to remove the front bumper lower cover.
      GTY928303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 grommets.
      GTY847778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT BUMPER EXTENSION
    1. Disengage the claws and guides to remove the front bumper extension.
      GTY847751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT BUMPER SIDE RETAINER LH
    1. Remove the bolt and screw.
      GTY763724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the front bumper side retainer LH as shown in the illustration.
      GTY773246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  18. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE NO. 1 RADIATOR GRILLE RETAINER
    1. Disengage the claws to remove the No. 1 radiator grille retainer as shown in the illustration.
      GTY765764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL
    1. Disengage the wire harness clamp.
      GTY847779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips.
    3. Remove the No. 1 radiator to support seal as shown in the illustration.

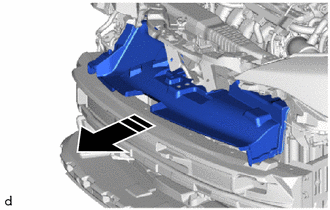

      GTY912836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  21. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. Disengage the guides to remove the front bumper energy absorber as shown in the illustration.

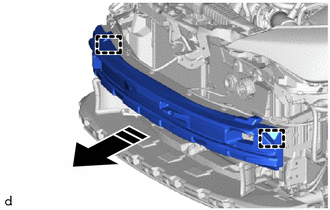

      GTY906671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  22. REMOVE LOWER FRONT BUMPER ABSORBER

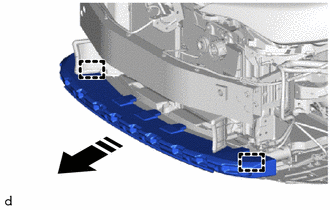

    1. Disengage the guides to remove the lower front bumper absorber as shown in the illustration.
      GTY920183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  23. REMOVE FRONT BUMPER REINFORCEMENT (for Type A)
    1. Disengage the wire harness clamps.
      GTY847733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts.
      GTY847735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guides to remove the front bumper reinforcement.
  24. REMOVE FRONT BUMPER REINFORCEMENT (for Type B)
    1. Disengage the wire harness clamps.
      GTY847736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts.
      GTY847728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guides to remove the front bumper reinforcement.
  25. REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH (for Type A)
    1. Remove the 5 bolts.
      GTY774273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guides to remove the front side member bracket sub-assembly LH.
  26. REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH (for Type B)
    1. Disengage the wire harness clamp.
      GTY773292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.
    3. Disengage the guides to remove the front side member bracket sub-assembly LH.
  27. REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH (for Type A)
    1. Remove the 4 bolts.
      GTY766645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guides to remove the front side member bracket sub-assembly RH.
  28. REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH (for Type B)

    HINT:

    Use the same procedure as for the LH side.

  29. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT
    1. Remove the 2 nuts and No. 2 front bumper reinforcement.
      GTY763718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT BUMPER BRACKET LH
    1. Remove the 4 bolts and front bumper bracket LH.
      GTY763725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE FRONT BUMPER BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  32. REMOVE NO. 1 RADIATOR AIR GUIDE LH
    1. Disengage the claw and guide to remove the No. 1 radiator air guide LH as shown in the illustration.

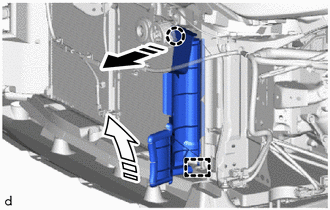

      GTY872153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  33. REMOVE NO. 1 RADIATOR AIR GUIDE RH
    1. Disengage the claw and guide to remove the No. 1 radiator air guide RH as shown in the illustration.

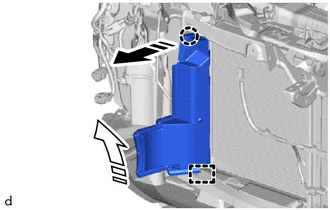

      GTY887712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
