Removal [09/2019 - 12/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [09/2019 - ]

  2. REMOVE FOG LIGHT ASSEMBLY (for Bulb Type)

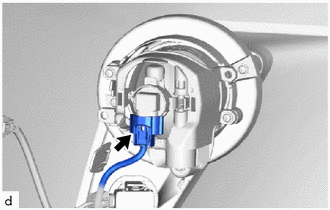

    1. Disconnect the connector.
      GTY855043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

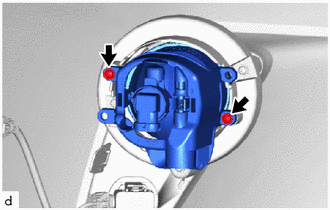

    2. Remove the screws and fog light assembly.
      GTY855042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FOG LIGHT ASSEMBLY (for LED Type)

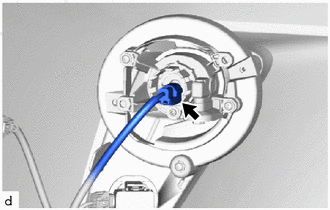

    1. Disconnect the connector.
      GTY929899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

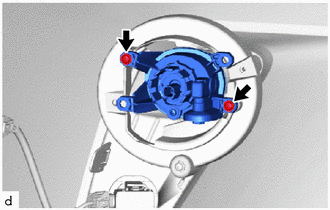

    2. Remove the screws and fog light assembly.
      GTY855044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
