Removal [10/2017 - 09/2019]: Procedure

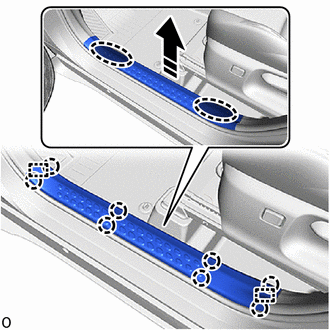

  1. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the claws and guides to remove the front door scuff plate LH as shown in the illustration.
      GTY747762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

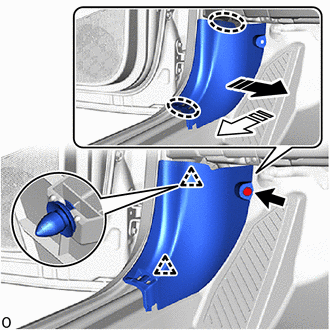

  2. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip.
      GTY751434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    2. Disengage the clips to remove the cowl side trim board LH as shown in the illustration.

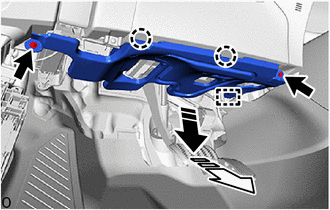

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Remove the 2 screws.
      GTY753161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the claws and guide to remove the No. 1 instrument panel under cover sub-assembly as shown in the illustration.
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

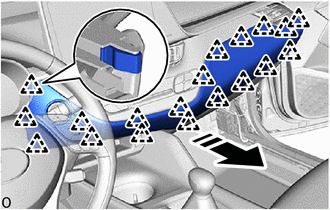

    1. Disengage the clips to remove the instrument cluster finish panel garnish assembly as shown in the illustration.
      GTY768020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE INSTRUMENT PANEL LOWER CENTER FINISH PANEL

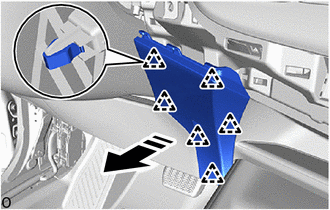

    1. Disengage the clips to remove the instrument panel lower center finish panel as shown in the illustration.
      GTY743552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claws to disconnect the cooler thermistor.
      GTY767581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE INSTRUMENT PANEL BOX ASSEMBLY

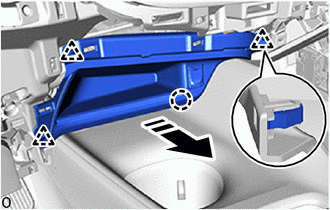

    1. Disengage the clips and claw to remove the instrument panel box assembly as shown in the illustration.
      GTY745082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. w/ Stereo Jack Adapter:
      1. Disconnect the connector.
  7. REMOVE CONSOLE BOX INSERT

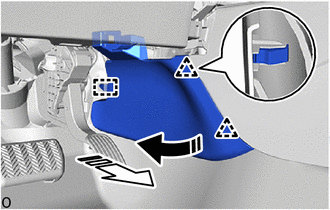

    1. Disengage the clips and guide to remove the console box insert as shown in the illustration.
      GTY748662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)

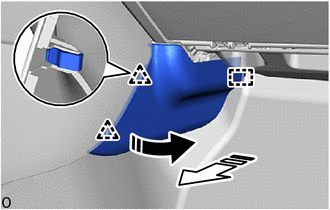

  8. REMOVE NO. 2 FRONT CONSOLE BOX INSERT
    1. Disengage the clips and guide to remove the No. 2 front console box insert as shown in the illustration.
      GTY752240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  9. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

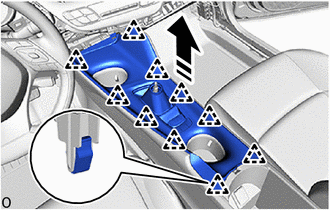

  10. REMOVE CONSOLE UPPER PANEL SUB-ASSEMBLY
    1. Disengage the clips to remove the console upper panel sub-assembly as shown in the illustration.
      GTY769580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect each connector.

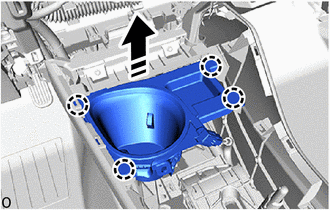

  11. REMOVE CONSOLE BOX CUP HOLDER
    1. Disengage the claws to remove the console box cup holder as shown in the illustration.
      GTY750633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. w/ Illumination:
      1. Disconnect the connector.

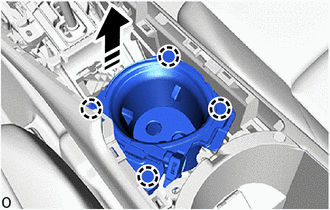

  12. REMOVE NO. 2 CONSOLE BOX CUP HOLDER
    1. Disengage the claws to remove the No. 2 console box cup holder as shown in the illustration.
      GTY756811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. w/ Illumination:
      1. Disconnect the connector.

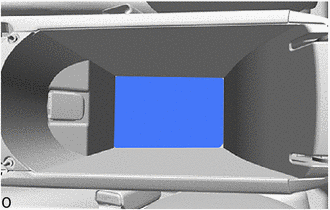

  13. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      GTY753910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

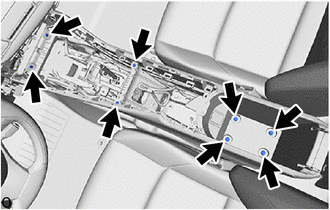

  14. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Remove the 4 screws.
      GTY753905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts.
    3. Disconnect the connector.

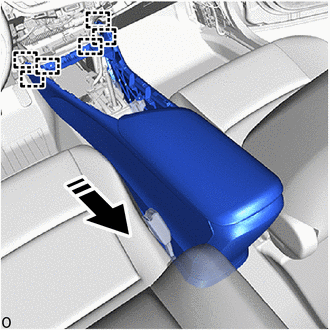

    4. Disengage the guides to remove the rear console box assembly as shown in the illustration.
      GTY764684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
