Removal [02/2017 - ]: Procedure

  1. REMOVE SHIFT LEVER CAP

    See step  2 [02/2017 - 09/2019] See step  2 [09/2019 - ]

  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    GTY745149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Remove in this Direction

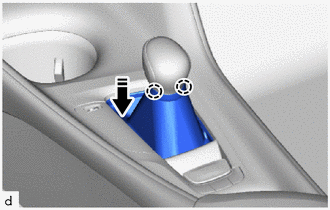

    1. Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

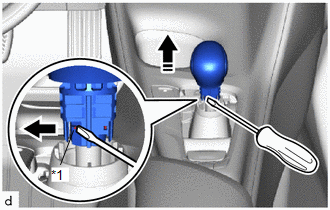

    2. Using a screwdriver, expand the LH side clip and pull out the shift knob from the floor shift lever assembly as shown in the illustration.
      GTY747177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Clip
      Remove in this Direction
