Reassembly [02/2017 - ]: Procedure

  1. CONNECT WASHER HOSE ASSEMBLY

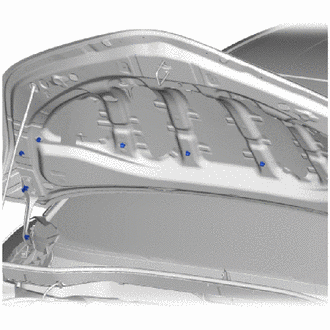

    1. Install the 7 clamps.
      GTY741352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

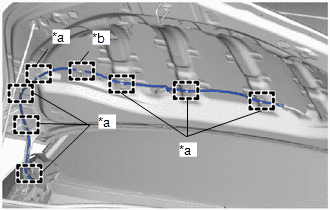

    2. Connect the washer hose assembly to the clamps and guide.
      GTY774673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
  2. INSTALL WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 3

  3. INSTALL HOLE PLUG

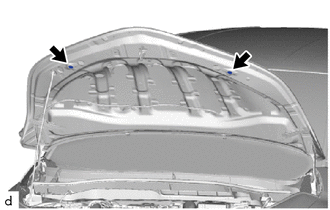

    1. Install 2 new hole plugs.
      GTY741342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 1

  5. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    Refer to ADJUSTMENT [02/2017 - ]

  6. INSTALL HOOD INSULATOR

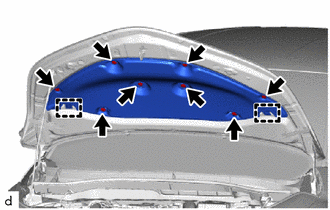

    1. Engage the guides to install the hood insulator.
      GTY741341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install 8 new clips.
  7. INSTALL HOOD SIDE PANEL LH

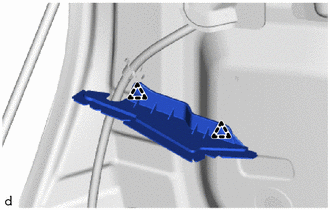

    1. Engage the clips to install a new hood side panel LH.
      GTY746338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL HOOD SIDE PANEL RH

    HINT:

    Use the same procedure as for the LH side.
