On-Vehicle Inspection [02/2017 - ]: Procedure
- INSPECT WASHER NOZZLE SUB-ASSEMBLY
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
Standard

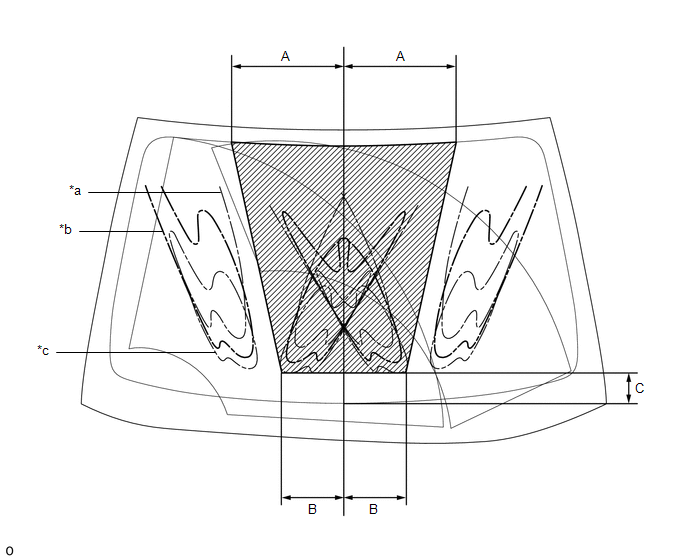

Washer fluid contacts the windshield in the areas shown in the illustration.
*a Upper Limit *b Standard *c Lower Limit - - Measurement - - Standard Measurement
Area Measurement Area Measurement A 341.0 mm (13.43 in.) B 187.0 mm (7.36 in.) C 82.5 mm (3.25 in.) - - HINT:
If the result is not as specified, replace the washer nozzle sub-assembly.
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
