Removal [09/2019 - ]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [05/2018 - ]

  2. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [09/2019 - ]

  3. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY

    Refer to REMOVAL [02/2017 - ]

  4. REMOVE ROCKER PANEL MOULDING LH

    Refer to REMOVAL [02/2017 - ]

  5. REMOVE FRONT FENDER LINER LH
    1. Remove the 2 screws, 7 clips and front fender liner LH.
      GTY858636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 RADIATOR GRILLE RETAINER

    Refer to PROCEDURE - STEP 19 [09/2019 - 12/2021] , or refer to PROCEDURE - STEP 19 [12/2021 - ]

  7. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL

    Refer to PROCEDURE - STEP 20 [09/2019 - 12/2021] , or refer to PROCEDURE - STEP 20 [12/2021 - ]

  8. REMOVE HOOD LOCK NUT CAP

    Refer to PROCEDURE - STEP 2

  9. REMOVE HOOD LOCK ASSEMBLY (w/ Engine Hood Courtesy Switch)

    Refer to PROCEDURE - STEP 3

  10. REMOVE HOOD LOCK ASSEMBLY (w/o Engine Hood Courtesy Switch)
    1. Remove the 2 bolts and hood lock bolt.
      GTY771653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hood Lock Bolt
    2. Disengage the guide to remove the hood lock assembly from the hood lock control cable assembly.
      GTY768737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 26 [09/2019 - 08/2020] , or refer to PROCEDURE - STEP 26 [08/2020 - 12/2021] , or refer to PROCEDURE - STEP 26 [12/2021 - ]

  12. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disengage the guide.
      GTY792150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
  13. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Disconnect the hood lock control cable assembly from the clamps.

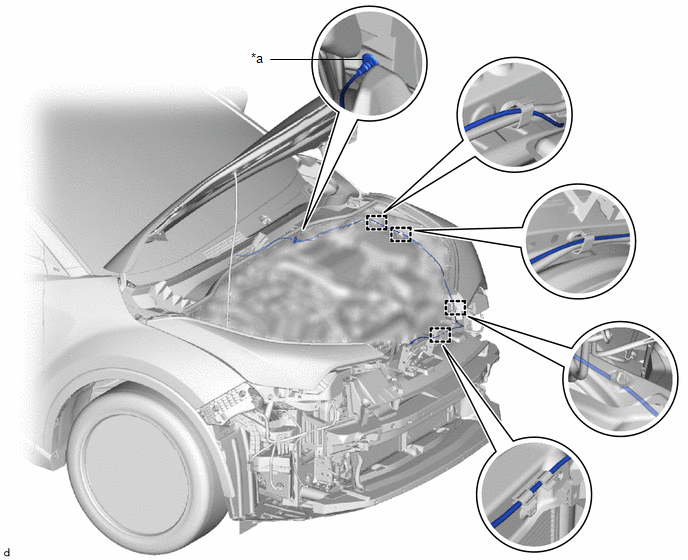

      GTY854382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet - -
    2. Disengage the grommet.
    3. Pull the hood lock control cable assembly from the engine compartment to remove it.
