Removal [10/2017 - ]: Procedure

Refer to REMOVAL [10/2017 - 09/2019] , or refer to REMOVAL [09/2019 - ]

1. Using a screwdriver with its tip wrapped in protective tape, remove the hood lock nut cap.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

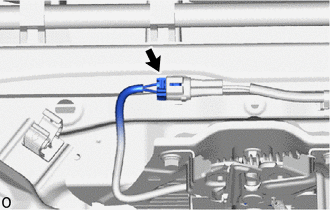

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

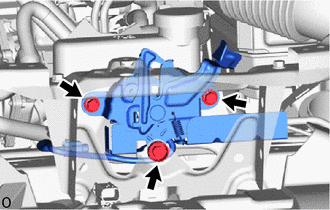

2. Remove the 2 bolts and hood lock bolt to separate the engine hood courtesy switch (hood lock assembly).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the guide.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Disconnect the hood lock control cable assembly to remove the hood courtesy switch (hood lock assembly).
