Removal [05/2018 - 09/2019]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [05/2018 - ]

  2. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [10/2017 - 09/2019]

  3. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY

    Refer to REMOVAL [02/2017 - ]

  4. REMOVE ROCKER PANEL MOULDING LH

    Refer to REMOVAL [02/2017 - ]

  5. REMOVE FRONT FENDER LINER LH

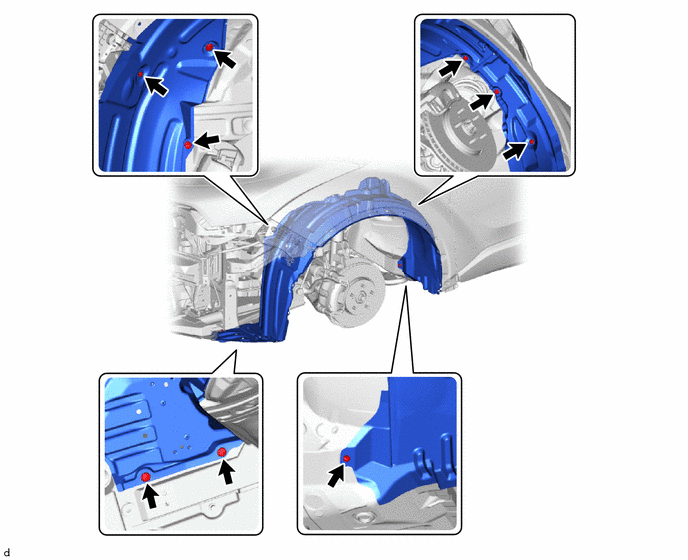

    1. Remove the 2 screws, 7 clips and front fender liner LH.
      GTY858636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 RADIATOR GRILLE RETAINER

    Refer to PROCEDURE - STEP 18

  7. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL

    Refer to PROCEDURE - STEP 19

  8. REMOVE HOOD LOCK NUT CAP

    Refer to PROCEDURE - STEP 2

  9. REMOVE HOOD LOCK ASSEMBLY (w/ Engine Hood Courtesy Switch)

    Refer to PROCEDURE - STEP 3

  10. REMOVE HOOD LOCK ASSEMBLY (w/o Engine Hood Courtesy Switch)
    1. Remove the 2 bolts and hood lock bolt.
      GTY771653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hood Lock Bolt
    2. Disengage the guide to remove the hood lock assembly from the hood lock control cable assembly.
      GTY768737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 26

  12. REMOVE HOOD LOCK CONTROL CABLE HOLDER
    1. Disengage the claw to remove the hood lock control cable holder as shown in the illustration.
      GTY750910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Remove the hood lock control lever sub-assembly from the hood lock control cable assembly.
      GTY367777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Disconnect the hood lock control cable assembly from the clamps.
      GTY774229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Grommet - -
    2. Disengage the grommet.
    3. Pull the hood lock control cable assembly from the engine compartment to remove it.
