Removal [02/2017 - 10/2017]: Procedure

Refer to REMOVAL [02/2017 - 05/2018]

Refer to REMOVAL [02/2017 - 10/2017]

Refer to REMOVAL [02/2017 - ]

Refer to REMOVAL [02/2017 - ]

HINT:

Use the same procedure as for the RH side.

Refer to PROCEDURE - STEP 5

Refer to PROCEDURE - STEP 16

Refer to PROCEDURE - STEP 17

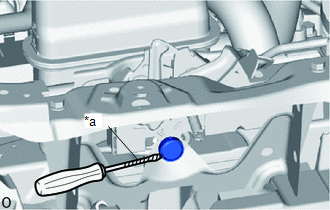

1. Using a screwdriver with its tip wrapped in protective tape, remove the hood lock nut cap.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

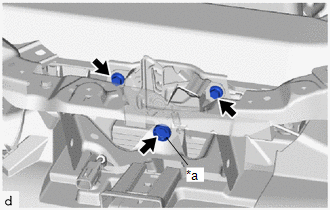

1. Remove the 2 bolts and hood lock bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hood Lock Bolt

2. Disengage the guide to remove the hood lock assembly from the hood lock control cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - STEP 26

1. Disengage the claw to remove the hood lock control cable holder as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

1. Remove the hood lock control lever sub-assembly from the hood lock control cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

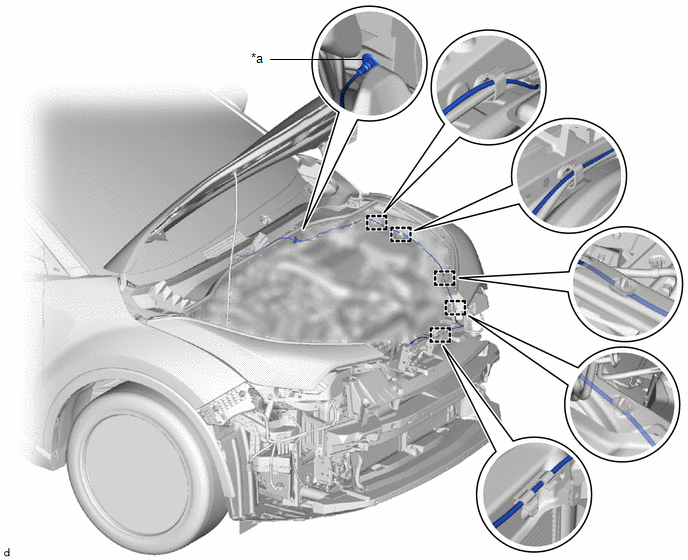

1. Disconnect the hood lock control cable assembly from the clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Grommet

   -

   -

2. Disengage the grommet.
3. Pull the hood lock control cable assembly from the engine compartment to remove it.
