Removal [02/2017 - ]: Procedure

  1. REMOVE FRONT WHEEL RH

    Refer to REMOVAL [02/2017 - 05/2018] , or refer to REMOVAL [05/2018 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

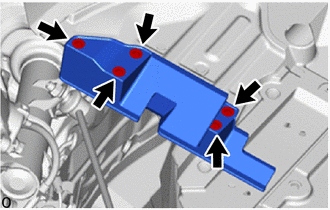

    1. Remove the 5 screws and front wheel opening extension pad RH.
      GTY746432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH

    Refer to REMOVAL [02/2017 - ]

  4. REMOVE ROCKER PANEL MOULDING RH

    Refer to REMOVAL [02/2017 - ]

  5. REMOVE FRONT FENDER LINER RH

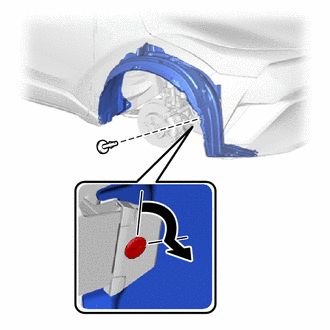

    1. Using a screwdriver, turn the pin 90 degrees counterclockwise and remove the pin hold clips.
      GTY769825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

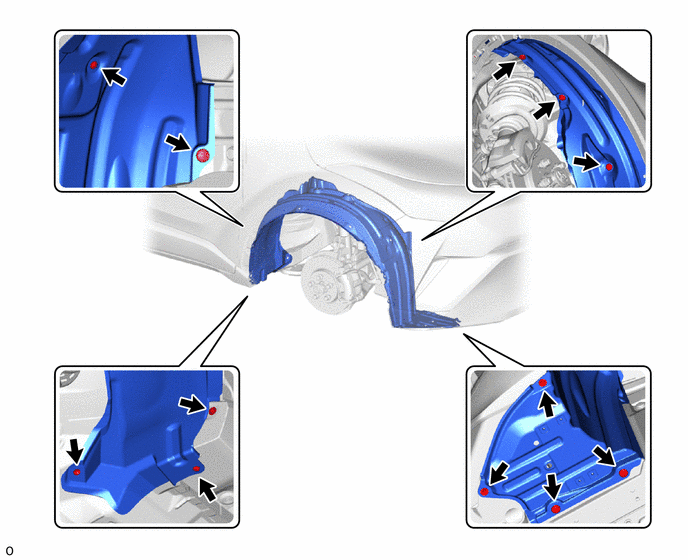

    2. Remove the 6 screws, 6 clips and front fender liner RH.
      GTY746434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DRAIN WASHER FLUID

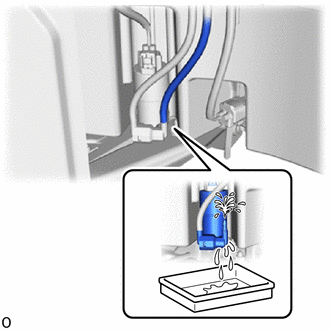

    1. Disconnect the rear washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.
      GTY746433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to collect the washer fluid.

  7. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

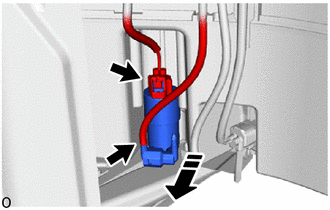

    1. Disconnect the washer hose.
      GTY758431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector.
    3. Remove the windshield washer motor and pump assembly as shown in the illustration.
