Reassembly [02/2017 - 10/2017]: Procedure
- INSTALL NO. 2 FRONT DOOR STRIPE
Refer to PROCEDURE - STEP 2
- INSTALL FRONT DOOR OUTSIDE STRIPE
Refer to PROCEDURE - STEP 3
- INSTALL NO. 4 FRONT DOOR STRIPE
Refer to PROCEDURE - STEP 4
- INSTALL FRONT DOOR UPPER WINDOW FRAME MOULDING
Refer to PROCEDURE - STEP 4

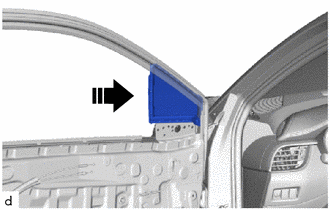

- INSTALL FRONT DOOR FRONT WINDOW FRAME MOULDING
Refer to PROCEDURE - STEP 1
- INSTALL COWL SIDE TRIM BOARD
Refer to PROCEDURE - STEP 13
- INSTALL FRONT DOOR SCUFF PLATE
Refer to PROCEDURE - STEP 14
- INSTALL FRONT DOOR BELT MOULDING ASSEMBLY
Refer to PROCEDURE - STEP 1
- INSTALL HOLE CAP
- INSTALL FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY
Refer to PROCEDURE - STEP 10
- INSTALL FRONT DOOR OUTSIDE MOULDING
Refer to PROCEDURE - STEP 1

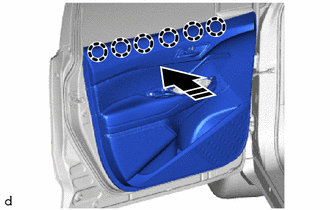

- INSTALL FRONT DOOR PANEL CUSHION
- INSTALL FRONT DOOR FIX WINDOW WEATHERSTRIP
- INSTALL FRONT DOOR FIX WINDOW GLASS
- INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
Refer to PROCEDURE - STEP 1
- INSTALL FRONT DOOR DUST PROOF SEAL
- INSTALL FRONT DOOR WEATHERSTRIP
- INSTALL FRONT DOOR CHECK ASSEMBLY
- Apply MP grease to the sliding parts of the front door check assembly.
- Clean the bolt hole in the vehicle body.
- Clean the threads of the bolt (A).
- Apply adhesive to the threads of the bolt (A).
Adhesive
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

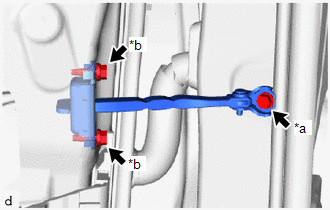

- Install the front door check assembly with the bolt (A) and 2 bolts (B).
*a Bolt (A) *b Bolt (B) Bolt (A)
Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)
for TMMT Made Bolt (B)
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
for TMC Made Bolt (B)
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

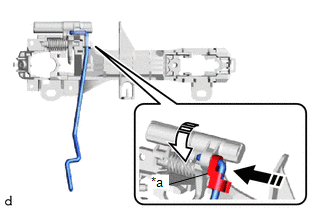

- INSTALL FRONT DOOR LOCK OPEN ROD
- INSTALL FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
- Apply MP grease to the sliding parts on the front door outside handle frame sub-assembly.
- w/ Smart Key System:

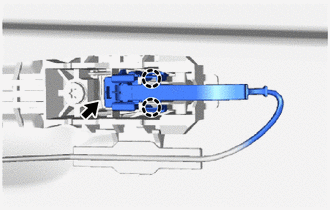

- Engage the clamps and guide.

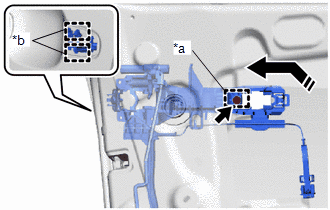

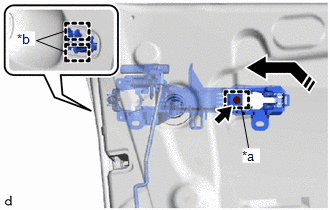

*a Guide *b Clamp - Engage the grommet and guides to install the front door outside handle frame sub-assembly as shown in the illustration.
*a Grommet *b Guide Install in this Direction - Using a T30 "TORX" socket wrench, tighten the screw.
Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

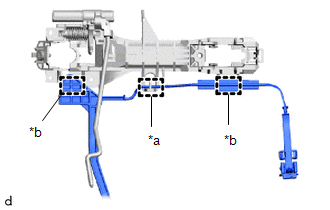

- Engage the clamps and guide.
- w/o Smart Key System:
- INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY
Refer to PROCEDURE - STEP 4
- INSTALL FRONT DOOR REAR OUTSIDE HANDLE PAD
- INSTALL FRONT DOOR FRONT OUTSIDE HANDLE PAD

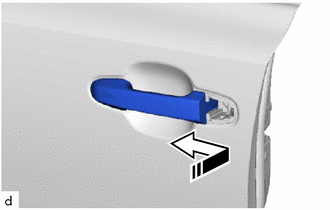

- INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY
- INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)
- INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Driver Side)

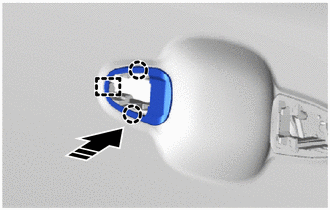

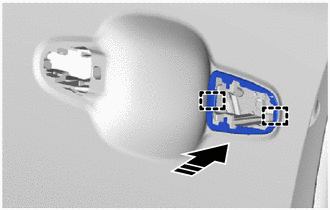

- Engage the guides and claw to install the front door outside handle cover as shown in the illustration.
Install in this Direction - Apply MP grease to the sliding area of the front door lock cylinder assembly.

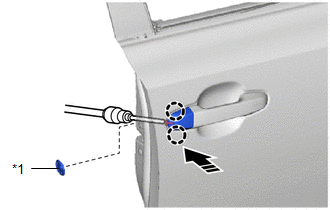

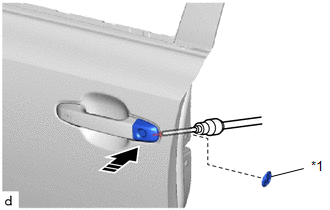

- Install the front door outside handle cover with lock cylinder assembly as shown in the illustration.
*1 Hole Plug Install in this Direction HINT:
Check that the front door lock cylinder assembly is inserted into the front door lock with motor assembly.
- Using a T30 "TORX" socket wrench, tighten the screw.
Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)
- Install the hole plug.
- Engage the guides and claw to install the front door outside handle cover as shown in the illustration.
- INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY
- INSTALL FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY
- INSTALL FRONT DOOR GLASS RUN
- INSTALL DOOR FRAME UPPER GARNISH

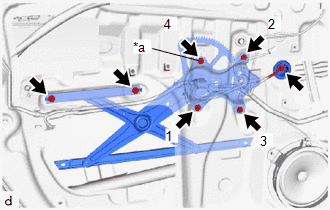

- INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY
- Apply MP grease to the sliding parts of the front door window regulator assembly.
- Temporarily install the temporary bolt to the front door window regulator assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*a Temporary Bolt - Temporarily install the front door window regulator assembly with the 5 bolts.
- Tighten the temporary bolt and 5 bolts to install the front door window regulator assembly.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
HINT:
Tighten the bolts in the order shown in the illustration.

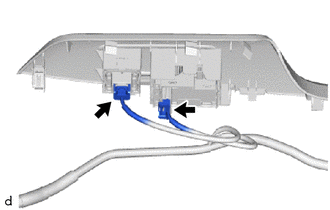

- Connect the connector.
- INSTALL NO. 2 FRONT DOOR SERVICE HOLE COVER
- INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
- for Driver Side:
- Connect the power window regulator master switch assembly.
- Connect the cable to the negative (-) battery terminal.
- Move the front door glass sub-assembly so that the door glass bolt holes can be seen.
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the power window regulator master switch assembly.
- for Front Passenger Side:
- Connect the power window regulator switch assembly.
- Connect the cable to the negative (-) battery terminal.
- Move the front door glass sub-assembly so that the door glass bolt holes can be seen.
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the power window regulator switch assembly.

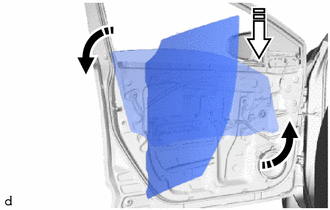

- Insert the front door glass sub-assembly into the front door panel along the front door glass run as shown in the illustration.
Install in this Direction (1) Install in this Direction (2) NOTE:Be careful not to damage the front door glass sub-assembly.
- Install the front door glass sub-assembly with the 2 bolts.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Install the hole plug.
- for Driver Side:
- INSTALL DOOR SIDE AIRBAG SENSOR
Refer to PROCEDURE - STEP 1

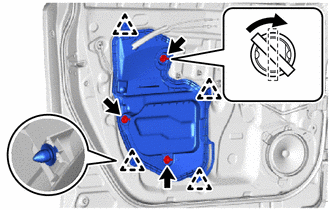

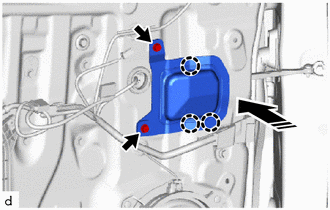

- INSTALL FRONT DOOR SERVICE HOLE COVER
- INSTALL OUTER MIRROR PROTECTOR
- INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
Refer to PROCEDURE - STEP 1
- INSTALL FRONT DOOR VENT SEAL

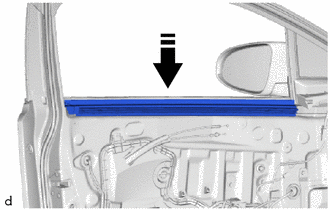

- INSTALL FRONT DOOR BELT SEAL
- INSTALL FRONT DOOR GLASS INNER WEATHERSTRIP
- INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
- INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
- INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

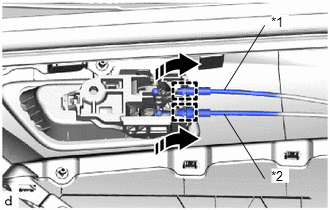

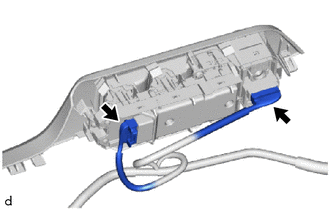

- Engage the guides to connect the front door lock remote control cable assembly and front door inside locking cable assembly as shown in the illustration.
*1 Front Door Inside Locking Cable Assembly *2 Front Door Lock Remote Control Cable Assembly Install in this Direction - Engage the claws as shown in the illustration.

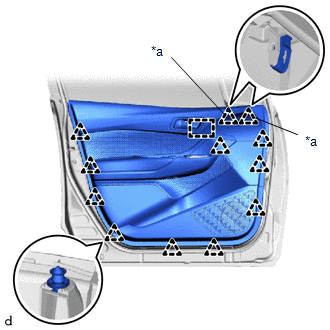

Install in this Direction - Engage the clip (A), other clips and guide to install the front door trim board sub-assembly.
*a Clip (A) - Install the 3 screws.
- Engage the guides to connect the front door lock remote control cable assembly and front door inside locking cable assembly as shown in the illustration.

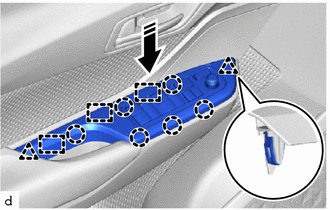

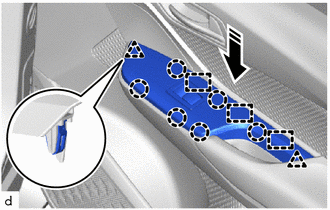

- INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Driver Side)
- INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Front Passenger Side)

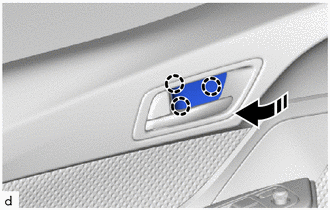

- INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - STEP 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [02/2017 - 10/2017]
- INITIALIZE POWER WINDOW CONTROL SYSTEM
Refer to INITIALIZATION [02/2017 - ]
- INSPECT POWER WINDOW OPERATION
Refer to OPERATION CHECK [02/2017 - 10/2017]
- INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM [02/2017 - 09/2019]
