Reassembly [02/2017 - 10/2017]: Procedure

  1. INSTALL REAR DOOR OUTSIDE STRIPE

    Refer to PROCEDURE - STEP 2

  2. INSTALL REAR DOOR LOWER OUTSIDE STRIPE

    Refer to PROCEDURE - STEP 3

  3. INSTALL REAR DOOR REAR WINDOW FRAME MOULDING

    Refer to PROCEDURE - STEP 1

  4. INSTALL REAR DOOR UPPER WINDOW FRAME MOULDING

    Refer to PROCEDURE - STEP 2

  5. INSTALL REAR DOOR OUTSIDE MOULDING

    Refer to PROCEDURE - STEP 1

  6. INSTALL REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 3

  7. INSTALL REAR DOOR PANEL CUSHION

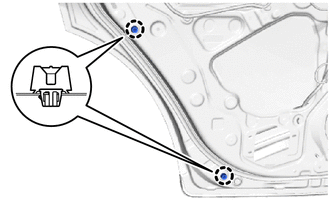

    1. Engage the claws to install the 2 rear door panel cushions.
      GTY756193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - STEP 1

  9. INSTALL REAR DOOR DUST PROOF SEAL

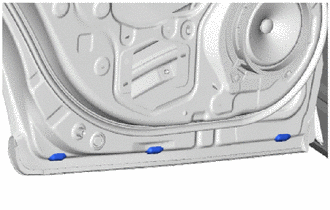

    1. Install the 3 rear door dust proof seals.
      GTY771980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR DOOR LOCK WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - STEP 4

  11. INSTALL REAR DOOR OUTSIDE HANDLE ASSEMBLY
    1. Engage the guide to connect the No. 1 rear door lock remote control cable assembly.
      GTY756188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

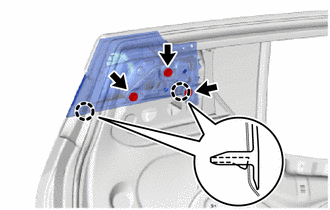

    2. Engage the claws to install the rear door outside handle assembly.
      GTY756129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 3 bolts.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

    4. Connect the No. 1 rear door lock remote control cable assembly to the clamps.

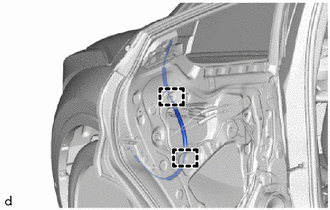

      GTY771977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR DOOR OUTSIDE HANDLE COVER
    1. Clean the rear door outside handle assembly surface.
    2. Remove the release paper from the face of the rear door outside handle cover.
    3. Engage the clips and guide to install a new rear door outside handle cover.

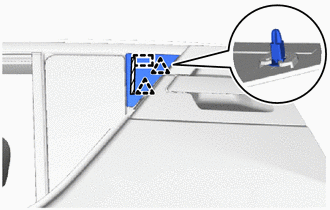

      GTY769773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    4. Press the double-sided tape area of the rear door outside handle cover.
  13. INSTALL REAR DOOR BELT MOULDING ASSEMBLY

    Refer to PROCEDURE - STEP 1

  14. INSTALL REAR DOOR QUARTER WINDOW WEATHERSTRIP
    1. Install the rear door quarter window weatherstrip to the rear door quarter window glass.
      GTY756178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR DOOR QUARTER WINDOW GLASS
    1. Install the rear door quarter window glass with rear door quarter window weatherstrip as shown in the illustration.

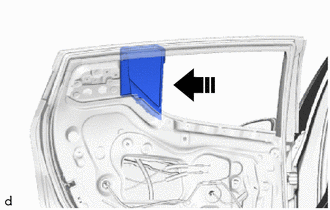

      GTY771127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL REAR DOOR WINDOW REGULATOR ASSEMBLY
    1. Apply MP grease to the sliding parts of the rear door window regulator assembly.
    2. Temporarily install the temporary bolt to the rear door window regulator assembly.

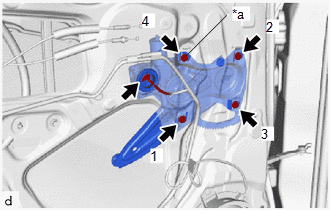

      Fig 1: Rear Door Window Regulator Assembly Tightening Sequence
      GTY742333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Temporary Bolt
    3. Temporarily install the rear door window regulator assembly with the 3 bolts.
    4. Tighten the temporary bolt and 3 bolts to install the rear door window regulator assembly.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      HINT:

      Tighten the bolts in the order shown in the illustration.

    5. Connect the connector.
  17. INSTALL REAR DOOR GLASS RUN
    1. Install the rear door glass run.

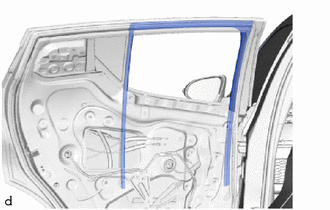

      GTY756182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL REAR DOOR FRAME GARNISH
    1. Engage the guides to install the rear door frame garnish.
      GTY756183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

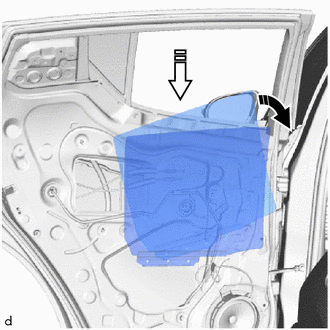

    1. Insert the rear door glass sub-assembly as shown in the illustration.
      NOTE:

      Do not damage the rear door glass sub-assembly.

      GTY749665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

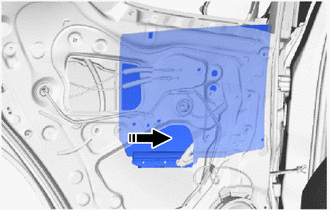

    2. Install the rear door glass sub-assembly to the rear door window regulator assembly as shown in the illustration.
      GTY747723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  20. INSTALL REAR DOOR WINDOW REAR LOWER FRAME SUB-ASSEMBLY

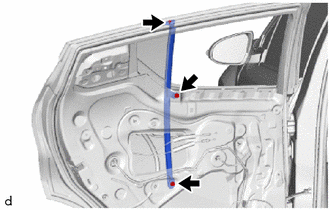

    1. Install the rear door window rear lower frame sub-assembly with the screw and 2 bolts.
      GTY771972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    2. Connect the rear door glass run.
  21. INSTALL REAR DOOR WEATHERSTRIP
    1. Clean the rear door panel.
    2. Remove the release paper from a new rear door weatherstrip.

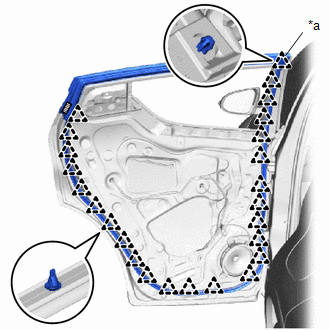

    3. Engage the clip (A) and other clip to install the rear door weatherstrip.
      GTY752406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      Double-sided Tape
    4. Press the double-sided tape area of the rear door weatherstrip.
  22. INSTALL REAR DOOR CHECK ASSEMBLY
    1. Apply MP grease to the sliding parts of the rear door check assembly.
    2. Clean the bolt hole in the vehicle body.
    3. Clean the threads of the bolt (A).
    4. Apply adhesive to the threads of the bolt (A).

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    5. Install the rear door check assembly with the bolt (A) and 2 bolts (B).

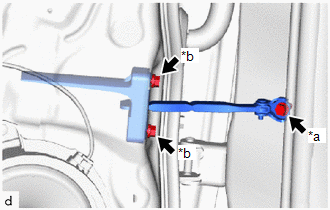

      GTY747718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt (A)
      *b Bolt (B)

      Bolt (A)

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

      Bolt (B)

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  23. INSTALL NO. 2 SEPARATOR DOOR STIFFENER CUSHION
    1. Clean the rear door panel.
    2. Remove the release paper from a new No. 2 separator door stiffener cushion.
    3. Engage the guides to install the No. 2 separator door stiffener cushion.

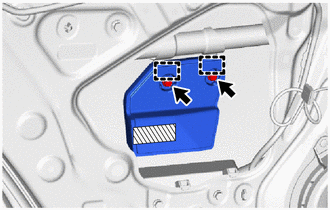

      GTY764557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    4. Install the 2 bolts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    5. Press the double-sided tape area of the No. 2 separator door stiffener cushion.
  24. INSTALL REAR DOOR CUSHION
    1. Engage the hooks to install the rear door cushion.

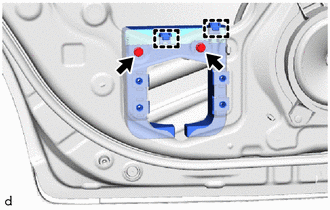

      GTY769790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  25. INSTALL REAR DOOR SERVICE HOLE COVER

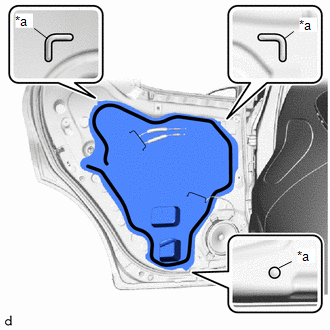

    1. Apply new butyl tape to the rear door panel.
      GTY769949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Reference Point
      Butyl Tape
    2. Pass the rear door lock remote control cable assembly and rear door inside locking cable assembly through a new rear door service hole cover.
    3. Install the front door service hole cover according to the reference points on the front door panel.
      NOTE:

      Securely install the rear door service hole cover preventing wrinkles and air bubbles.

  26. INSTALL REAR DOOR INSIDE PANEL REINFORCE SUB-ASSEMBLY

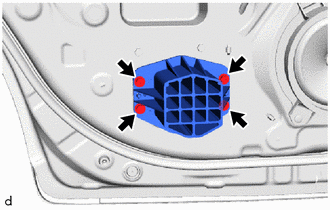

    1. Install the rear door inside panel reinforce sub-assembly with the 4 screws.
      GTY746272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL REAR DOOR TRIM BRACKET
    1. Install the rear door trim bracket with the 2 screws.

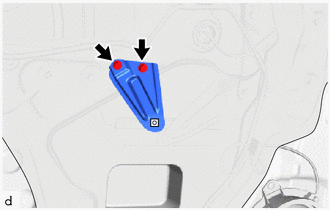

      GTY756167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL NO. 2 REAR DOOR FRAME GARNISH
    1. Install the No. 2 rear door frame garnish.

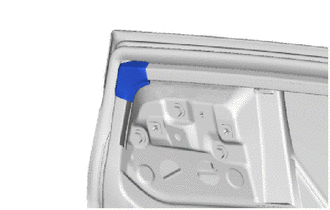

      GTY746273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL HOLE PLUG

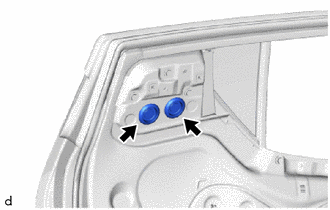

    1. Install the 2 hole plugs.
      GTY771974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL REAR DOOR BELT SEAL
    1. Install the rear door belt seal to the rear door glass inner weatherstrip as shown in the illustration.
      GTY756535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  31. INSTALL REAR DOOR GLASS INNER WEATHERSTRIP

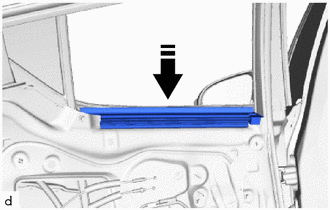

    1. Install the rear door glass inner weatherstrip with the rear door belt seal as shown in the illustration.
      GTY753786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  32. INSTALL REAR DOOR BELT REAR SEAL
    1. Install the rear door belt rear seal.

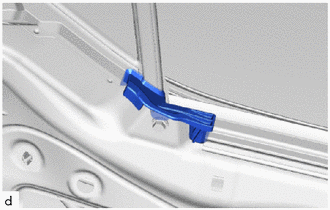

      GTY756177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY

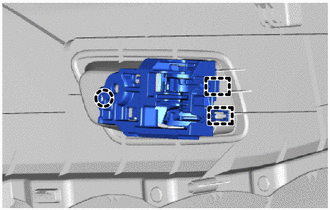

    1. Engage the guides and claw to install the front door inside handle sub-assembly.
      GTY756176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

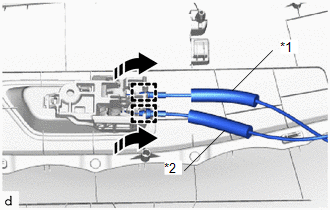

    1. Engage the guides to connect the rear door inside locking cable assembly and rear door lock remote control cable assembly.
      GTY759540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Door Inside Locking Cable Assembly
      *2 Rear Door Lock Remote Control Cable Assembly
      Install in this Direction
    2. Engage the claws as shown in the illustration.

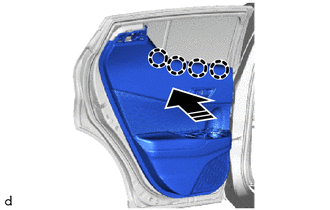

      GTY771034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Engage the guide and clips to install the rear door trim board sub-assembly.

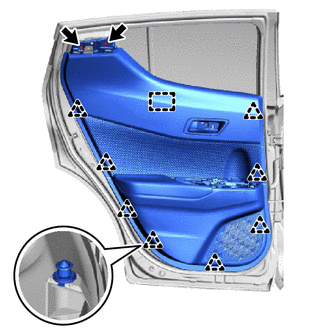

      GTY756119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

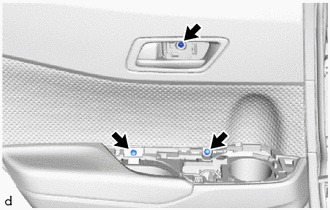

    4. Install the 2 screws.
    5. Install the 3 screws.
      GTY756267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE UPPER PANEL
    1. Connect the connector.
      GTY756199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guides, clips and claws to install the rear power window regulator switch assembly with rear door armrest base upper panel as shown in the illustration.

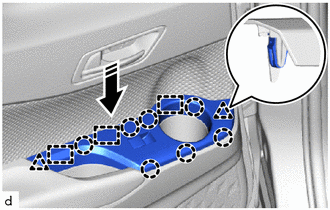

      GTY763230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  36. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG
    1. Engage the claws to install the rear door inside handle bezel plug as shown in the illustration.

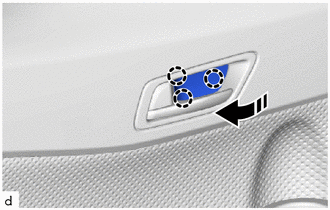

      GTY764838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  37. INSTALL REAR DOOR REAR FRAME BRACKET

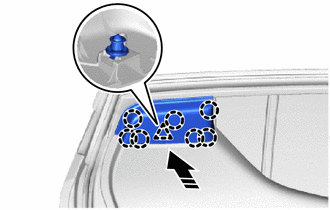

    1. Engage the claws and clip to install the rear door rear frame bracket as shown in the illustration.
      GTY743737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  38. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - STEP 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [02/2017 - 10/2017]

  39. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Refer to INITIALIZATION [02/2017 - ]

  40. INSPECT POWER WINDOW OPERATION

    Refer to OPERATION CHECK [02/2017 - 10/2017]
