Removal [10/2017 - 08/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [02/2017 - 05/2018] , or refer to PRECAUTION [05/2018 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - STEP 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 05/2018] , or refer to INITIALIZATION [05/2018 - 09/2019] , or refer to INITIALIZATION [09/2019 - 08/2020]

  3. REMOVE REAR DOOR REAR FRAME BRACKET

    Refer to PROCEDURE - STEP 3 [10/2017 - 05/2018] , or refer to PROCEDURE - STEP 3 [05/2018 - 09/2019] , or refer to PROCEDURE - STEP 3 [09/2019 - 08/2020]

  4. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - STEP 4 [10/2017 - 05/2018] , or refer to PROCEDURE - STEP 4 [05/2018 - 09/2019] , or refer to PROCEDURE - STEP 4 [09/2019 - 08/2020]

  5. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE UPPER PANEL

    Refer to PROCEDURE - STEP 5 [10/2017 - 05/2018] , or refer to PROCEDURE - STEP 5 [05/2018 - 09/2019] , or refer to PROCEDURE - STEP 5 [09/2019 - 08/2020]

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 6 [10/2017 - 05/2018] , or refer to PROCEDURE - STEP 6 [05/2018 - 09/2019] , or refer to PROCEDURE - STEP 6 [09/2019 - 08/2020]

  7. REMOVE REAR DOOR TRIM BRACKET

    Refer to PROCEDURE - STEP 13 [10/2017 - 05/2018] , or refer to PROCEDURE - STEP 13 [05/2018 - 09/2019] , or refer to PROCEDURE - STEP 13 [09/2019 - 08/2020]

  8. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - STEP 15 [10/2017 - 05/2018] , or refer to PROCEDURE - STEP 15 [05/2018 - 09/2019] , or refer to PROCEDURE - STEP 15 [09/2019 - 08/2020]

  9. REMOVE REAR DOOR OUTSIDE HANDLE COVER

    Refer to PROCEDURE - STEP 29 [10/2017 - 05/2018] , or refer to PROCEDURE - STEP 29 [05/2018 - 09/2019] , or refer to PROCEDURE - STEP 31 [09/2019 - 08/2020]

  10. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY

    Refer to PROCEDURE - STEP 28 [10/2017 - 05/2018] , or refer to PROCEDURE - STEP 28 [05/2018 - 09/2019] , or refer to PROCEDURE - STEP 30 [09/2019 - 08/2020]

  11. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY
    1. Disconnect the connector.
      GTY741406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T30 "TORX" socket wrench, remove the 3 screws and rear door lock with motor assembly.
    3. When reusing the rear door lock with motor assembly:
      1. Remove the door lock wiring harness seal from the rear door lock with motor assembly.
        GTY741407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
    1. w/o Double Locking System:
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw as shown in the illustration.
        GTY761552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        Remove in this Direction
      2. Disengage the guide to remove the rear door lock remote control cable assembly from the rear door lock with motor assembly.
        GTY741416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Double Locking System:
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw as shown in the illustration.

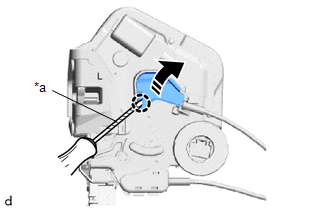

        GTY752798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        Remove in this Direction
      2. Disengage the guide to remove the rear door lock remote control cable assembly from the rear door lock with motor assembly.
        GTY741421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY
    1. w/o Double Locking System:
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
        GTY749155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        Remove in this Direction
      2. Disengage the guide to remove the rear door inside locking cable assembly from the rear door lock with motor assembly.
        GTY768752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Double Locking System:
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.

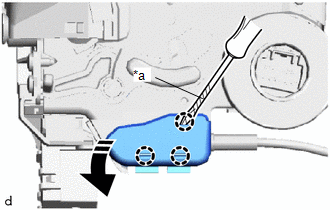

        GTY750166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        Remove in this Direction
      2. Disengage the guide to remove the rear door inside locking cable assembly from the rear door lock with motor assembly.
        GTY741415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
      GTY746100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Disengage the guide to remove the No. 1 rear door lock remote control cable assembly from the rear door lock with motor assembly.
      GTY741418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
