Removal [10/2017 - 08/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [02/2017 - 05/2018] , or refer to PRECAUTION [05/2018 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - STEP 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 05/2018] , or refer to INITIALIZATION [05/2018 - 09/2019] , or refer to INITIALIZATION [09/2019 - 08/2020]

  3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - STEP 3 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 3 [09/2019 - 08/2020]

  4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Driver Side)

    Refer to PROCEDURE - STEP 4 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 4 [09/2019 - 08/2020]

  5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL (for Front Passenger Side)

    Refer to PROCEDURE - STEP 5 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 5 [09/2019 - 08/2020]

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 6 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 6 [09/2019 - 08/2020]

  7. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP

    Refer to PROCEDURE - STEP 10 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 10 [09/2019 - 08/2020]

  8. REMOVE FRONT DOOR BELT SEAL

    Refer to PROCEDURE - STEP 11 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 11 [09/2019 - 08/2020]

  9. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - STEP 15 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 15 [09/2019 - 08/2020]

  10. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 17 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 17 [09/2019 - 08/2020]

  11. REMOVE DOOR FRAME UPPER GARNISH

    Refer to PROCEDURE - STEP 20 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 20 [09/2019 - 08/2020]

  12. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - STEP 21 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 21 [09/2019 - 08/2020]

  13. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - STEP 23 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 23 [09/2019 - 08/2020]

  14. REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Driver Side)

    Refer to PROCEDURE - STEP 24 [10/2017 - 09/2019] , or refer to PROCEDURE - STEP 24 [09/2019 - 08/2020]

  15. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY
    1. Disconnect the connector.
      GTY765295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod
      Remove in this Direction
    2. Using a T30 "TORX" socket wrench, remove the 3 screws.
    3. Disconnect the front door lock open rod as shown in the illustration.
    4. Remove the front door lock with motor assembly.
    5. When reusing the front door lock with motor assembly (w/o Double Locking System):
      1. Remove the door lock wiring harness seal from the front door lock with motor assembly.
        GTY595051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. When reusing the front door lock with motor assembly (w/ Double Locking System):
      1. Remove the door lock wiring harness seal from the front door lock with motor assembly.

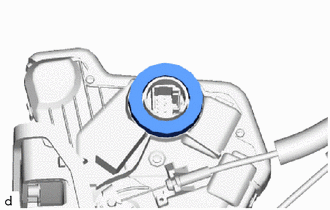

        GTY756116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY (w/o Double Locking System)
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.
      GTY772310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
    2. Disengage the guides to remove the front door lock cover sub-assembly from the front door lock with motor assembly.
      GTY595049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
    1. w/o Double Locking System:
      1. GTY595048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Disengage the guide to remove the front door lock remote control cable assembly from the front door lock with motor assembly.

    2. w/ Double Locking System:
      1. Disengage the guide to remove the front door lock remote control cable assembly from the front door lock with motor assembly.

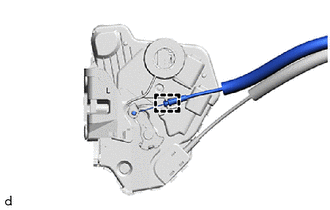

        GTY741401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY
    1. w/o Double Locking System:
      1. Disengage the guide to remove the front door inside locking cable assembly from the front door lock with motor assembly.
        GTY595056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Double Locking System:
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws as shown in the illustration.

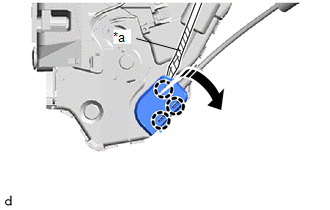

        GTY741633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective tape
        Remove in this Direction
      2. Disengage the guide to remove the front door inside locking cable assembly from the front door lock with motor assembly.

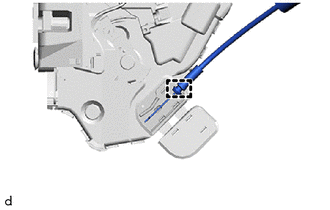

        GTY741408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
